Chapter 8-2. AIM Software HD 2.6 Status Panel

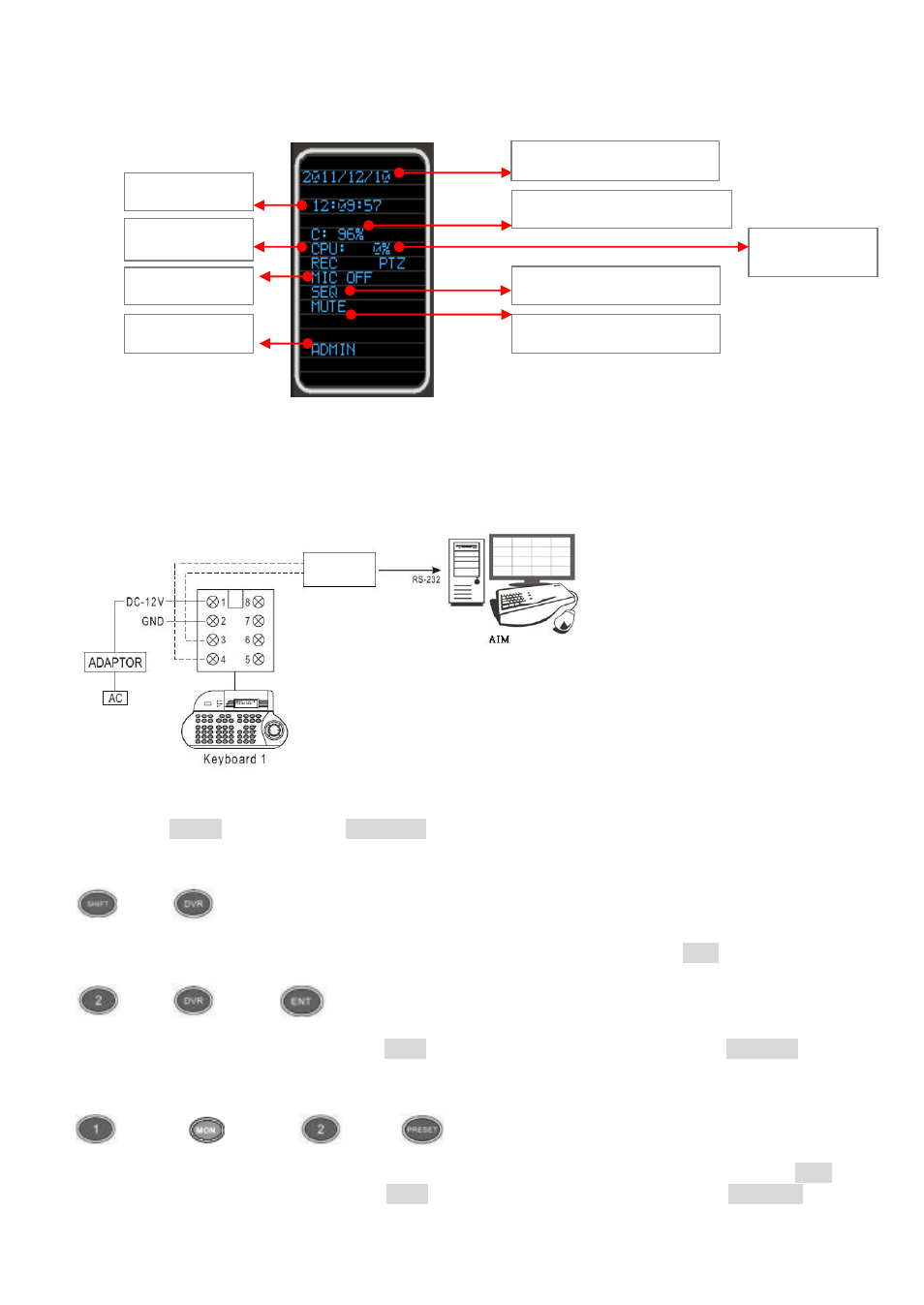

AIM Software HD 2.6 status panel is described as following chart.
Chapter 8-3. Control PTZ via Keyboard
To use PIH-931D keyboard for AIM, please follow the following steps. First, please add a
RS-232<->RS-485 convertor for connecting keyboard and a AIM PC.
Chapter 8-3-1. DVR/NVR Control Mode
Press the SHIFT button and the DVR/NVR button to set the keyboard to DVR/NVR control
mode.
+
To control a AIM, please first enter the DVR/NVR ID (AIM ID) follow by the ENT button.
+ +
To recall a grouping, please type 1 + MON and following by grouping ID and the PRESET
button.
+ +
+
To recall a grouping on second monitor, please call a DVR/NVR ID (AIM ID) following the ENT
button. After that, please type 2 + + MON and following by grouping ID and the PRESET.
Recording percentage of HDD
System date
System time
Sequence mode
PTZ indicator
RS-232<->RS-485 Convertor
MIC status
CPU usage
User status Speaker status
