- 20 -
Chapter 3-4. Recall a Grouping

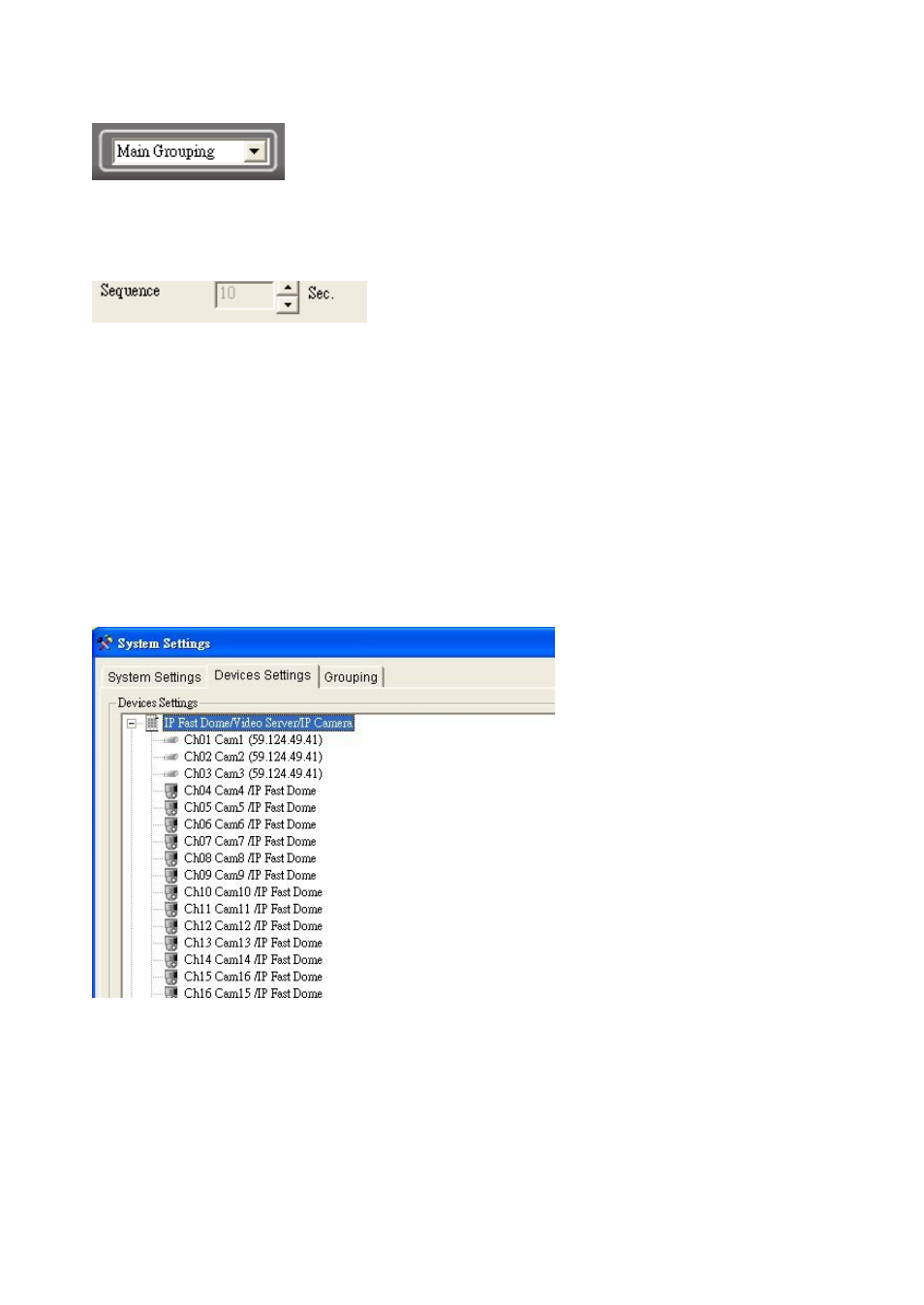

To recall a grouping, click on grouping drop down list.
Chapter 3-5. Grouping Sequence
In grouping tab, please specify Sequence Time. In live monitoring mode, please click on SEQ
button to perform Sequence Display feature.
Chapter 3-6. Main Grouping
Main Grouping refers to AIM Software HD 2.6
’s main screen which contains 36
windows-division screen. To add a device for the main grouping, please follow the steps:
(1) Select Main Grouping in grouping dropdown list.
(2) Right mouse click on one of the cameras.
(3) Select Camera Properties to assign the camera properties.
Alternatively, a user can add devices into Main Grouping at System Settings->Device Settings.
Device Settings allows a user to manage up to 36 channels of IP cameras, video servers, and
H.264 HD IP’ cameras.
Chapter 3-7. Window-divisions
Currently, AIM Software HD 2.6 supports four types of window-division including maximized
window (each view), 4-window-division, 16-window-division, and 36- window-division. To see
the maximized camera window, you can select particular camera window and click on Each
View button. You can also double-click on the live video for the maximized window. To see 4-,
16-, and 36-window-division, click on the window-division buttons.
