- 10 -

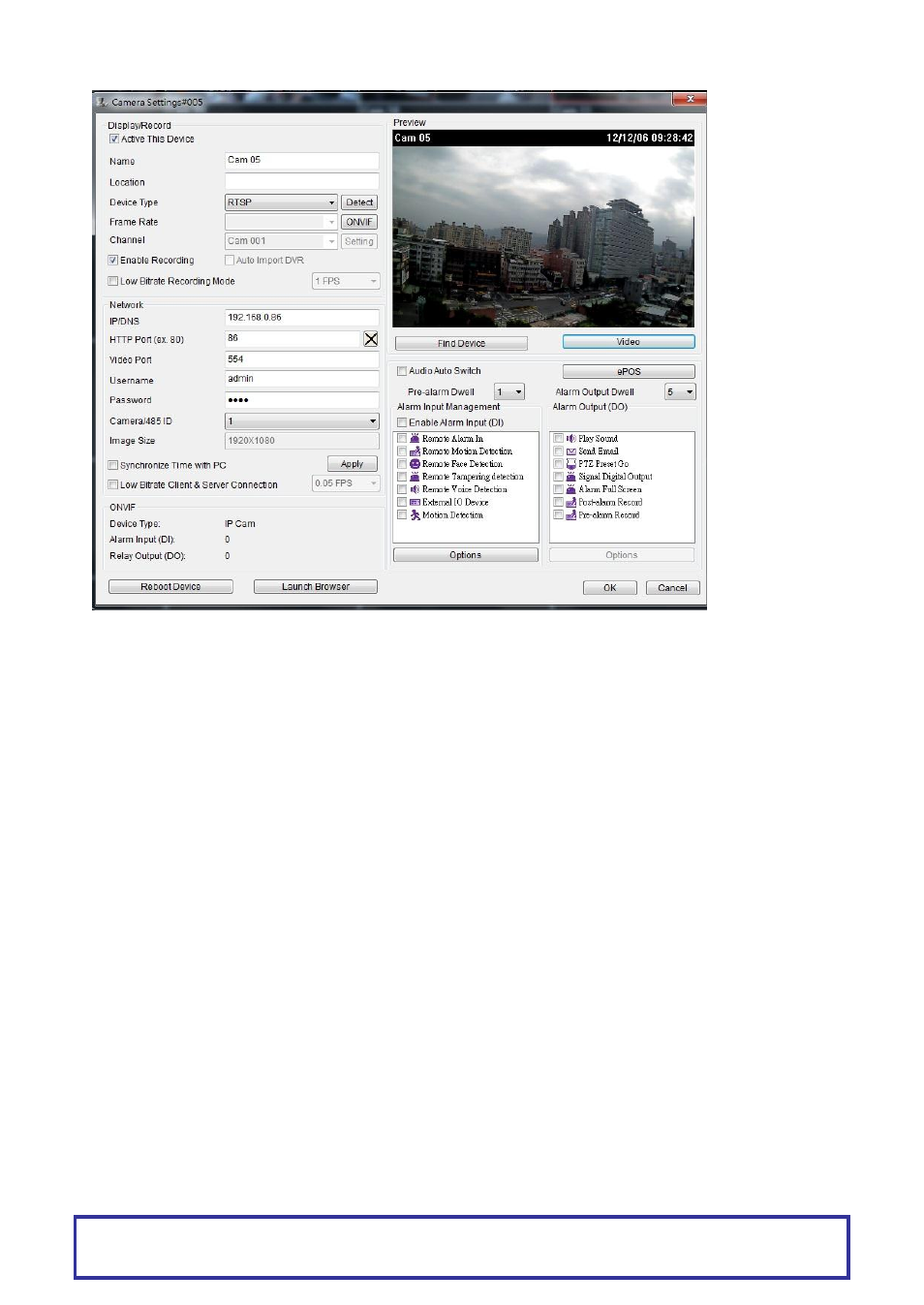

To edit Camera Setting dialog box, please right mouse click on a channel and select Camera
Properties menu item.
 Name —Camera name which is displayed on top of live video channel

Location
—Indicating the location of the camera installed.

Frame Rate
—Frame rate for the device
 ONVIF
—Frame rate and video quality settings based on ONVIF protocol.
 Device Type —Device type selection box, RTSP is for H.264 D1 or H.264 HD IP
cameras.
 Enable Recording —Enable or disable recording for the device

Auto Import DVR--Automatically import DVR/NVR cameras into AIM automatically.

Low bitrate recording mode
—Record one frame per second.
 IP/DNS (required) —The IP address of the device
 HTTP Port Number —The HTTP port number of the device
 Video Port Number —DVR/NVR’s video port number/IP camera’s RTSP port
number

Username
—The username which is allowed to login the device
 Password —The password for the username
 Image Size —The source video size of the device
 Camera/485 ID —IP Fast Dome RS-485 ID.

Low Bitrate Client and Server Connection
—Connect in between AIM in low bitrate
mode.
 Synchronize Time with PC
—Synchronize time with the remote PC.
 Find device —Search IP cameras and configure the IP camera.
 Auto Audio Switch —For automated two-way audio connection
Note:
1. RS-485 camera ID (1 to 128) must match the ID setting of the IP Fast Dome. The
software may not control PTZ movement if the ID setting is incorrect.
