ES900 User’s Manual 47
External Time Signal/Built-in Buzzer
This optional feature identifies work start and stop times.
Connection Specifications for External Time Signal Contact:
• Contact Output: Dry Contact
• Contact Capacity: 5A, 30 VDC (Resistive)
Example 2: The time table program is explained in Time Table Example 2 and Time Table Based
on the Example 2 below.

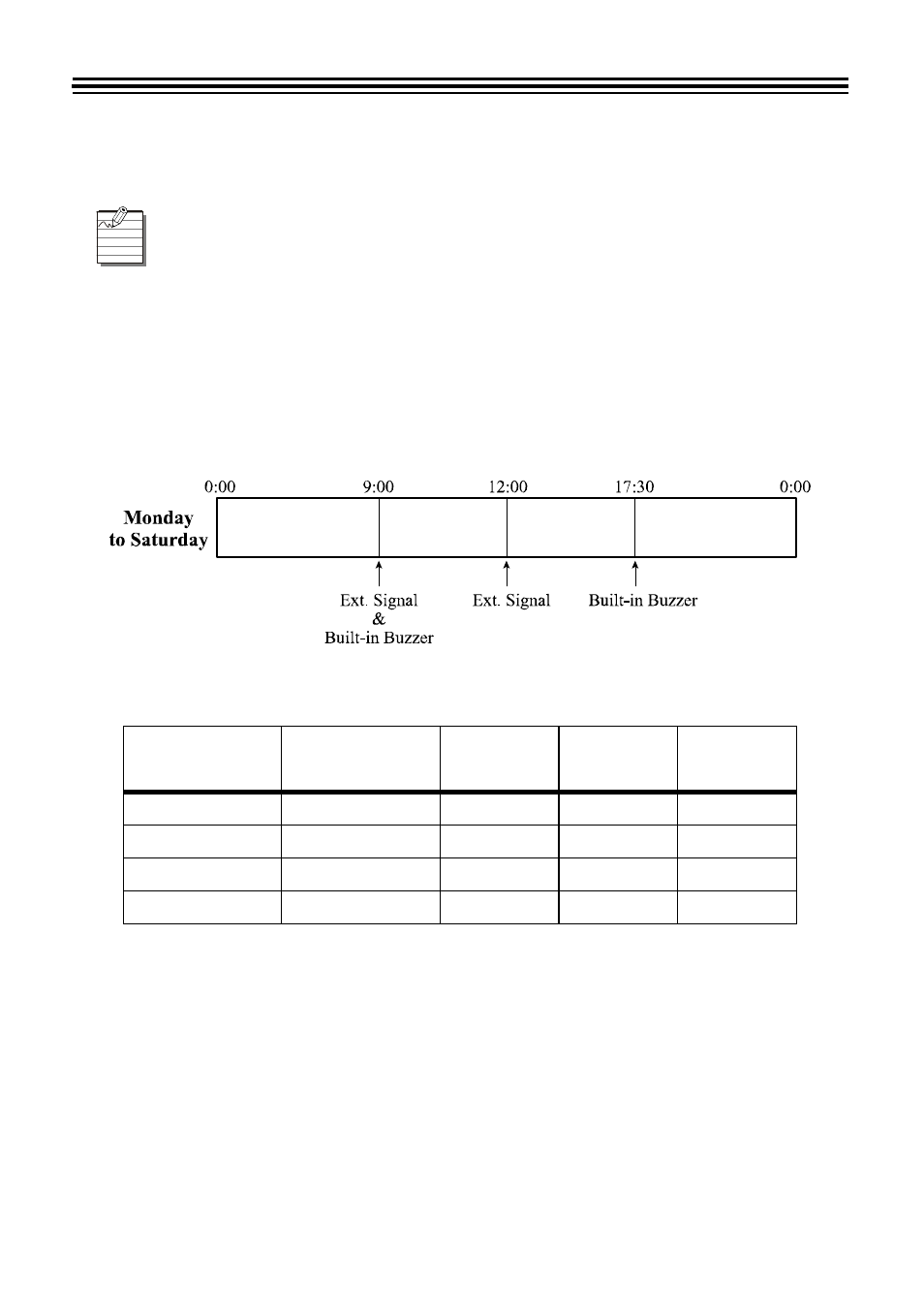

Time Table Example 2
Time Table Based on the Example 2
• Up to 48 programs can be set (Program No. 1 through Program No. 48).
External Time Signal and Built-in Buzzer should be controlled by the Time Table
Program and it duration settings.
For these features to be functional, the optional board must be installed in the unit.
P ROGRAM N O .
D
AY OF THE
W
EEK
T IME
E
XT
.
S
IGNAL
ON
B
UILT
-
IN
B
UZZER
ON
01 Mon. – Sat. 9:00 9
02 Mon. – Sat. 9:00 9
03 Mon. – Sat. 12:00 9
04 Mon. – Sat. 17:30 9
