2.6
DR AM Insta llation
The PC8177provides two 204-pin DDR3 SO-DIMM sock et that support system memory up to
16GB. Please follow steps below to install the memory modules:
Step 1
Refer to section 2.1 to open the back cover and find out DIMM socket on
mainboard (MANO871).
Step 2

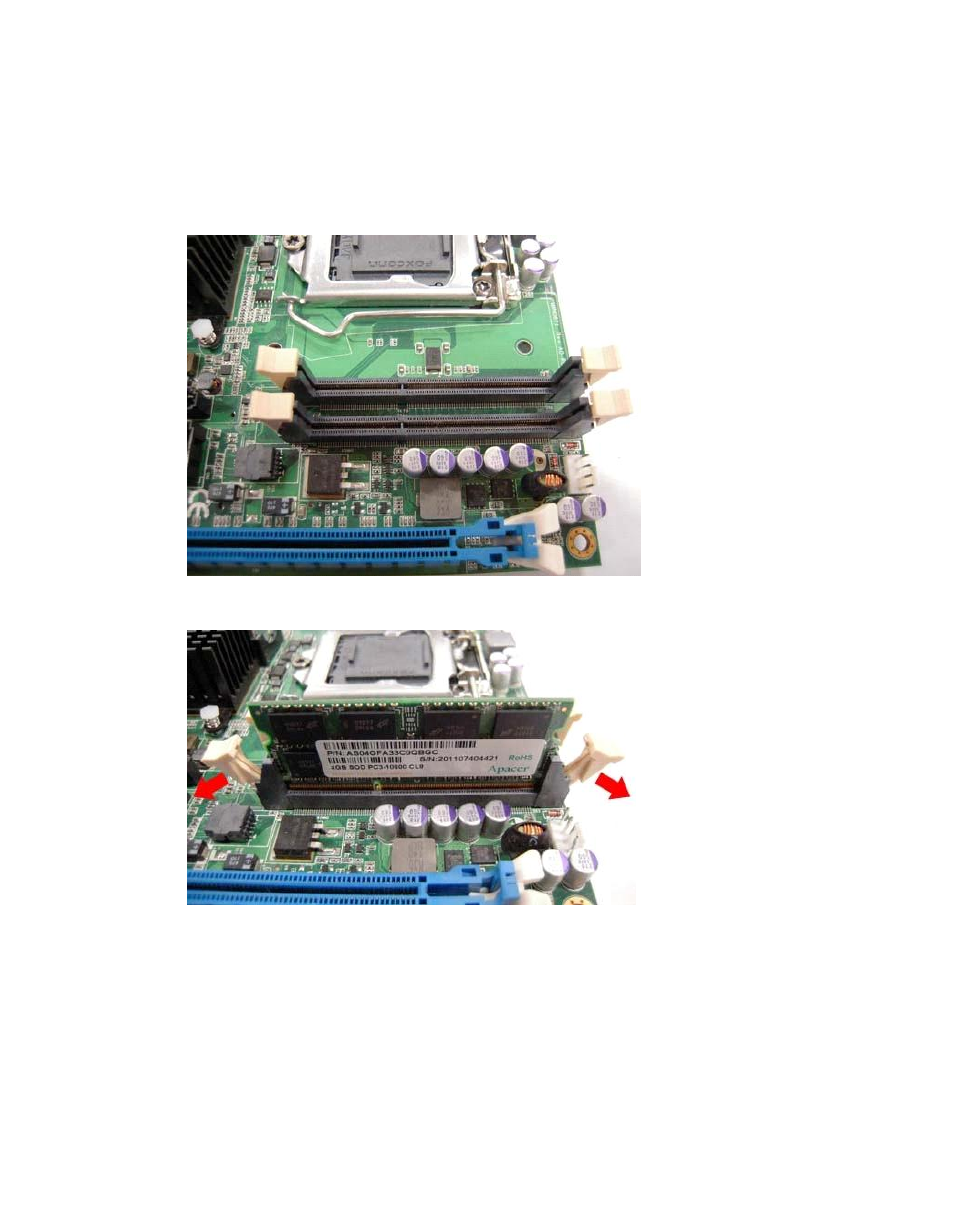

Push the latches on each side of the SO-DIMM slot down.
