2.5

HDD Installation

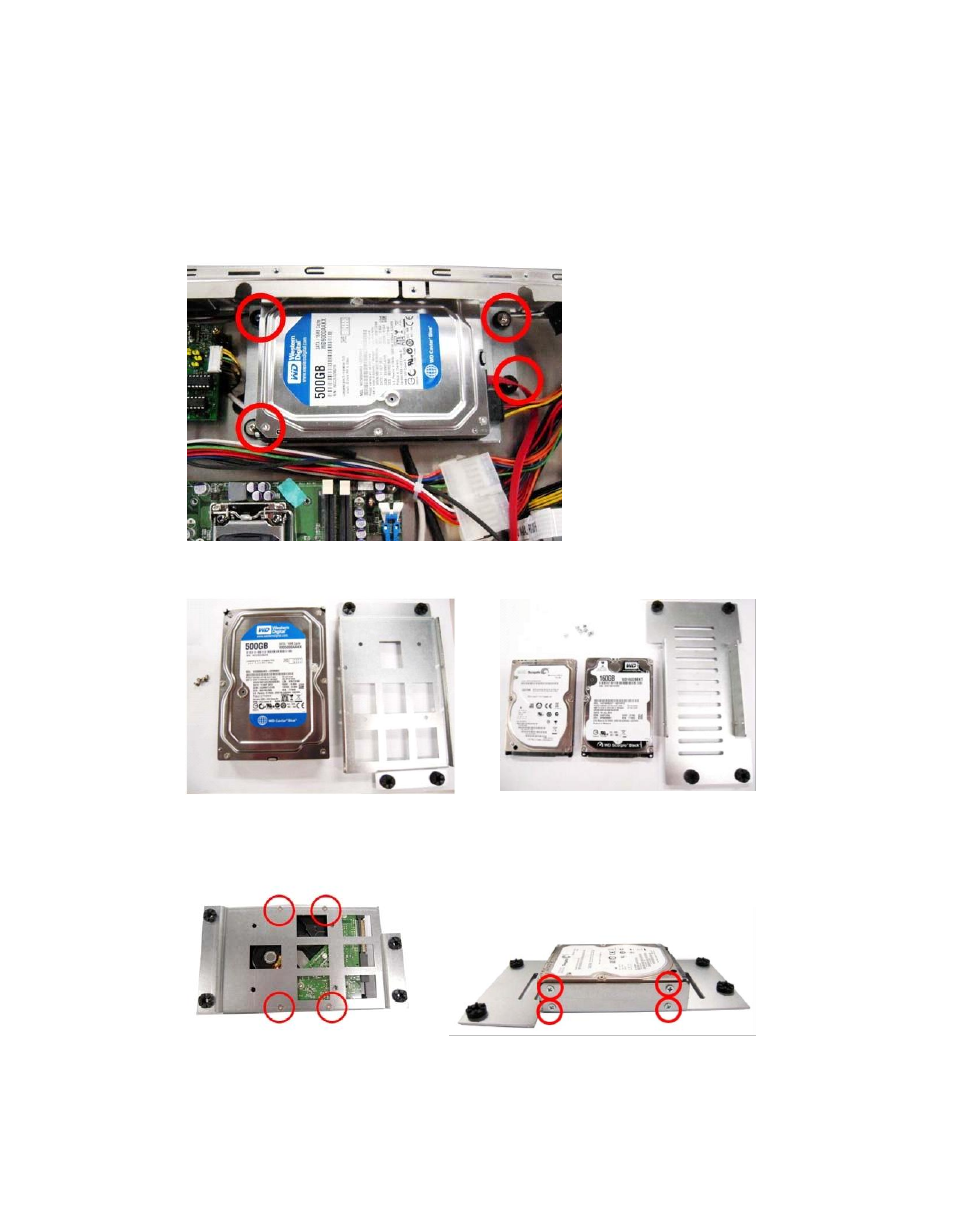

The PC8177provides a convenient Hard Disk Drive (HDD) bracket for users to install 2 x
2.5

” or 1 x 3.5” SATA HDD. Please follow the steps:

Step 1

Refer section 2.1 to open the back cover.

Step 2

Unscrew 4 screws to take off the HDD bracket.

Step 3

Fix the HDD on bracket by the screws.

?

1 x 3.5

” SATA HDD Kit

?

1 x 2.5

” or 2 x 2.5” SATA HDD Kit


?

Fix the 3.5

” HDD on the back of bracket

?

Fix the 2.5

” HDD on the right and left side of

bracket
