RMC 7155

14” short depth server

All rights reserved. Product description and product specifications
are subject to change without notice. For latest product information,
please visit Acnodes’ web site at www.acnodes.com.

14628 Central Blvd,

Chino, CA91710

tel:909.597.7588, fax:909.597.1939

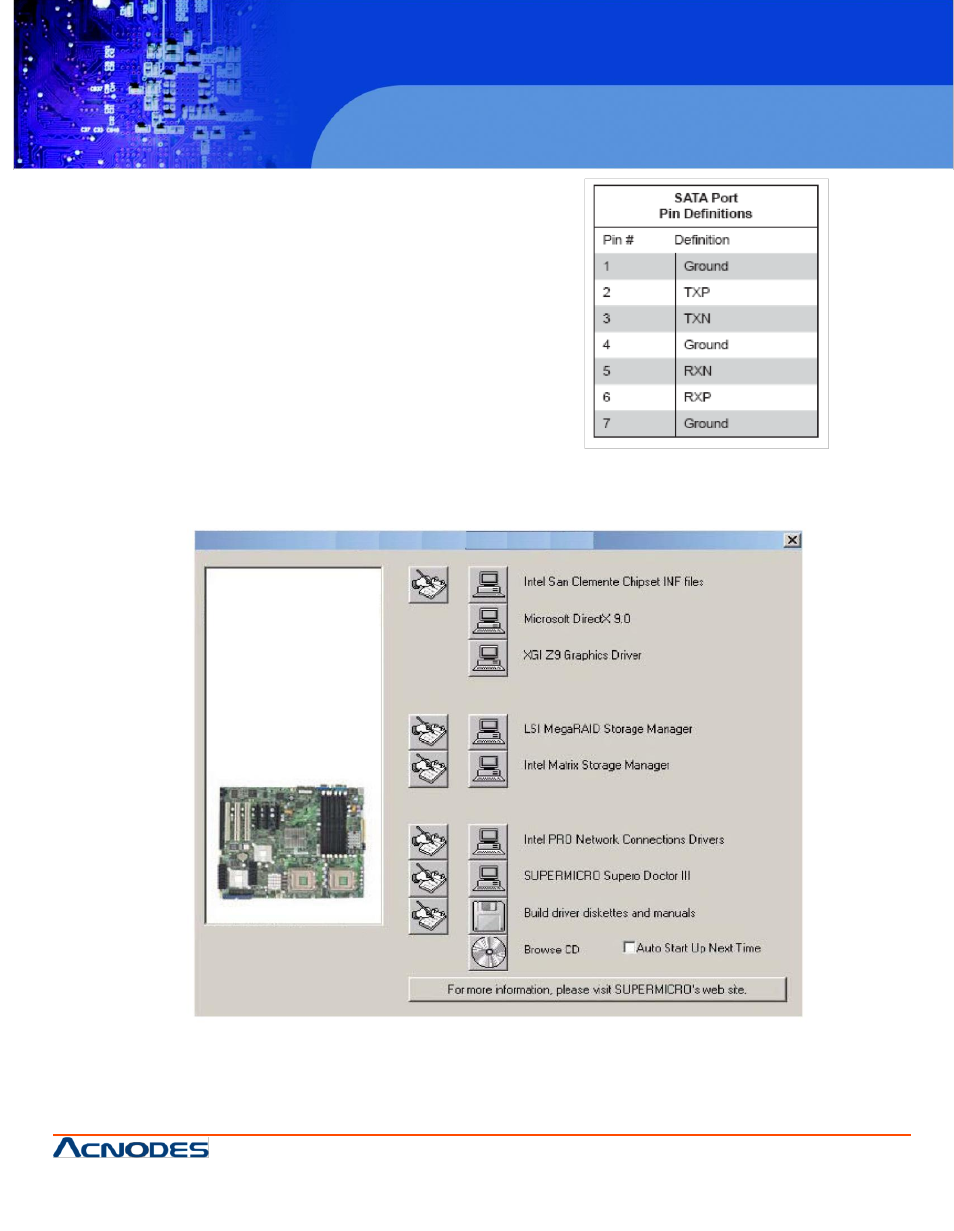

5.12 SATA Port Connections

SATA Ports

There are no jumper to enable the SATA ports, which are
designated I-SATA0 ~ I-SATA5 See the table on the right
for pin definitions.

5.13 Installing SoftwarePreface

After the hardware has been installed, you should first
install the operating system and then the drivers. The
necessary drivers are all included on the Supermicro CDs
that came packaged with your serverboard.
