RMC 7155

14” short depth server

Universal Serial Bus (USB)

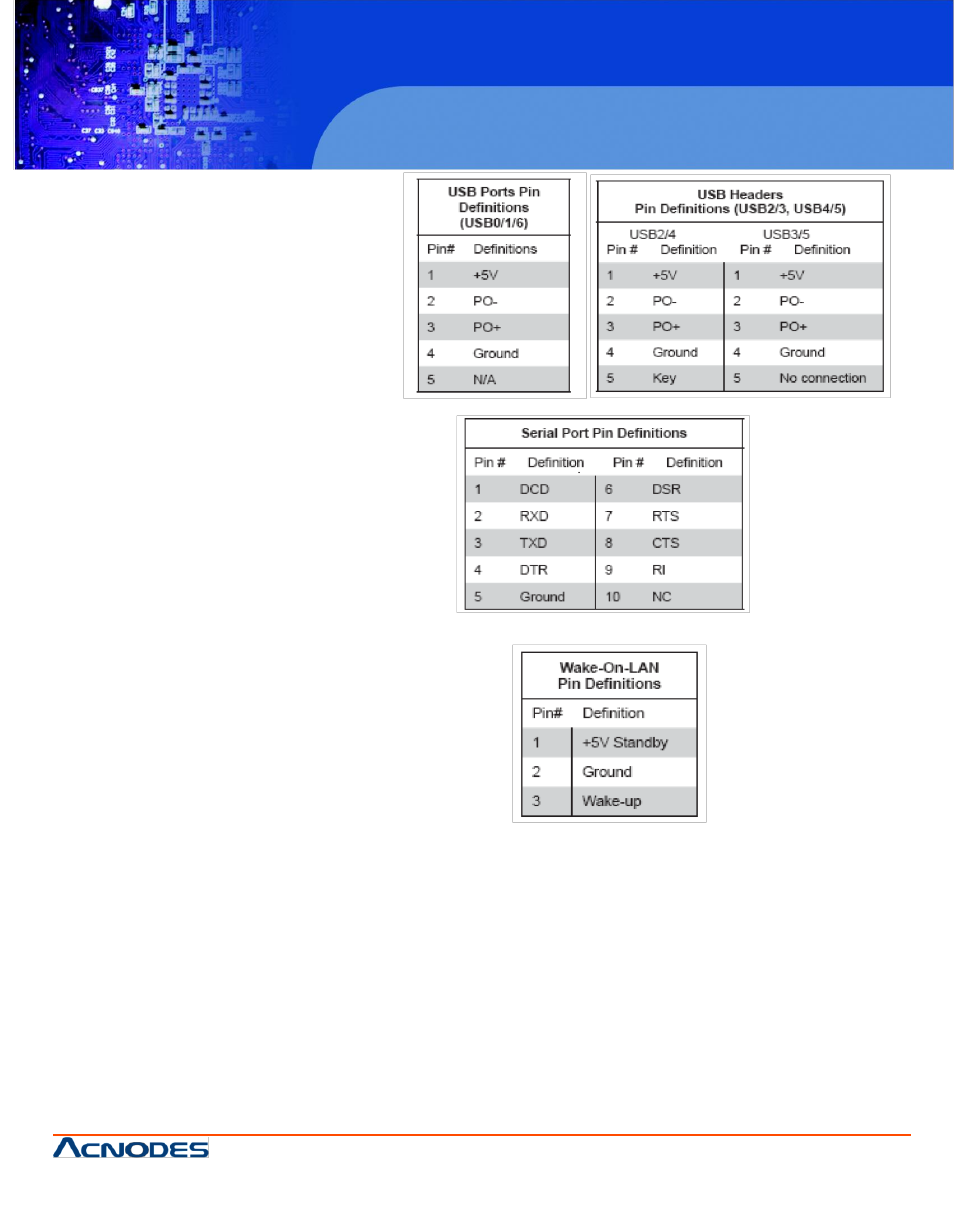

There are two Universal Serial Bus ports
located on the I/O panel and five additional
USB headers located on the serverboard.
The headers labeled USB 2/3 and USB 4/5
can be used to provide front side USB acc
ess (cables not included). USB 6 is an A
type. See the tables on the right for pin
definitions.

Serial Ports

Two serial ports are included on the
serverboard: COM1 is a port located
beside the USB ports and COM2 is
a header located on the corener of the
board near the SIMLC. See the table
on the right for pin definitions.

Wake-On-LAN

The W ake-On-LAN header is des-
ignated JWOL on the serverboard.
See the table on the right for pin
definitons. You must enable the LAN
Wak-Up setting in BIOS to use the
function. (You must also have LAN
card with a W ake-On-LAN connector
and cable to use this feature.)
