Acme PLB102B User Manual

Page 11

Attaching Monitor to Wall

Plate and Insert the Locking

Bar

Warning: Some TVs may require two people to lift! We are not responsible

for personal injury or product damage.

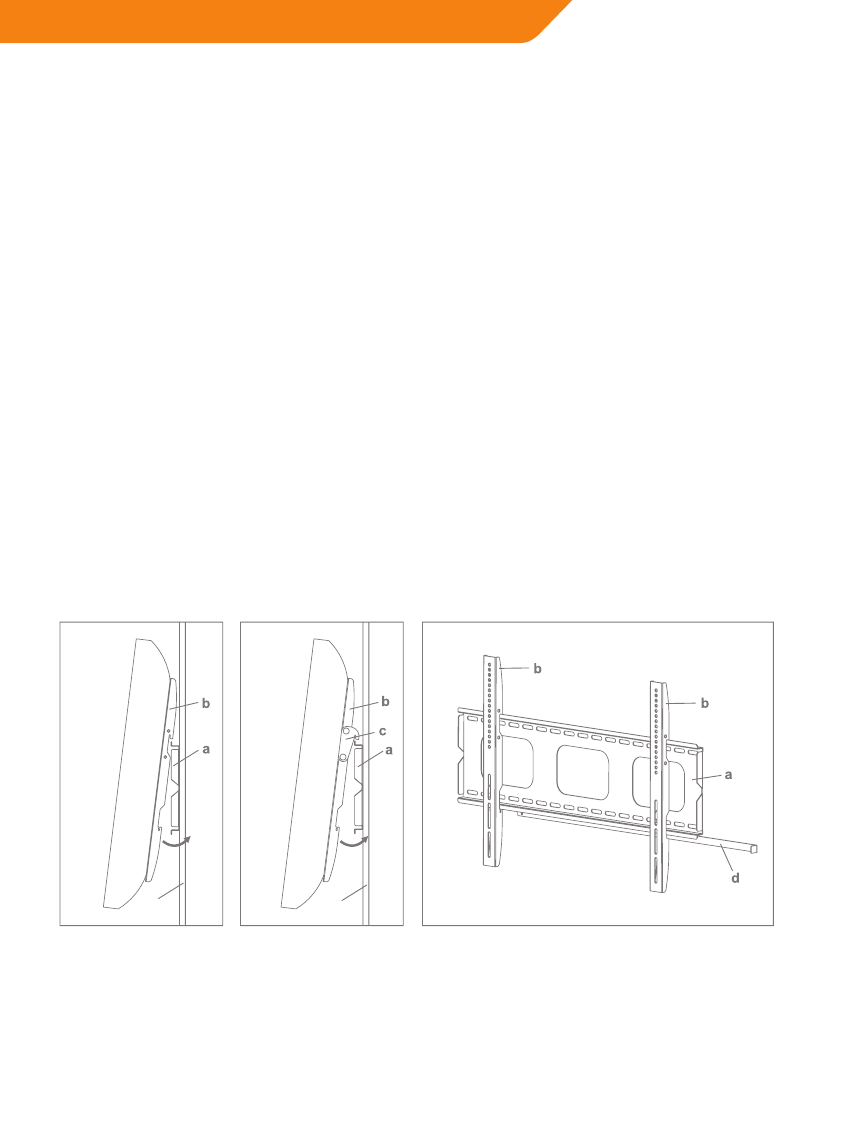

First hook the Monitor Brackets(b) over the top of the wall Plate(a),

then let the bottom of the Monitor Brackets rotate to the bottom of the

Wall Plate. This process is shown with the flat mount option in Diagram

4A, and with the minus 5 degree tilt option in Diagram 4B. Insert the

Locking Bar(d) into the slots in the bottom of the Monitor Brackets so

that is sits behind the bottom tab on the Wall Plate. Once the Locking Bar

passes out from the other side of wall plate, a padlock can be added for

additional security. Details see Diagram 4C.

Thanks for choosing our products, enjoy the using.

Diagram 4B

Diagram 4A

wall

Diagram 4C
