Choose Mounting Position
in plat or minus 5 degree
You can mount your television in either of two positions: flat or at a
minus 5 degree downward tilt. To mount the television flat to the wall
use only the Monitor Brackets(b). To mount the television in the minus 5
degree tilt position you must first add two Small Added Hook(d) to each
Monitor Bracket with two Carriage Bolts(x) and two Nuts(y) as shown in
Diagram 3.

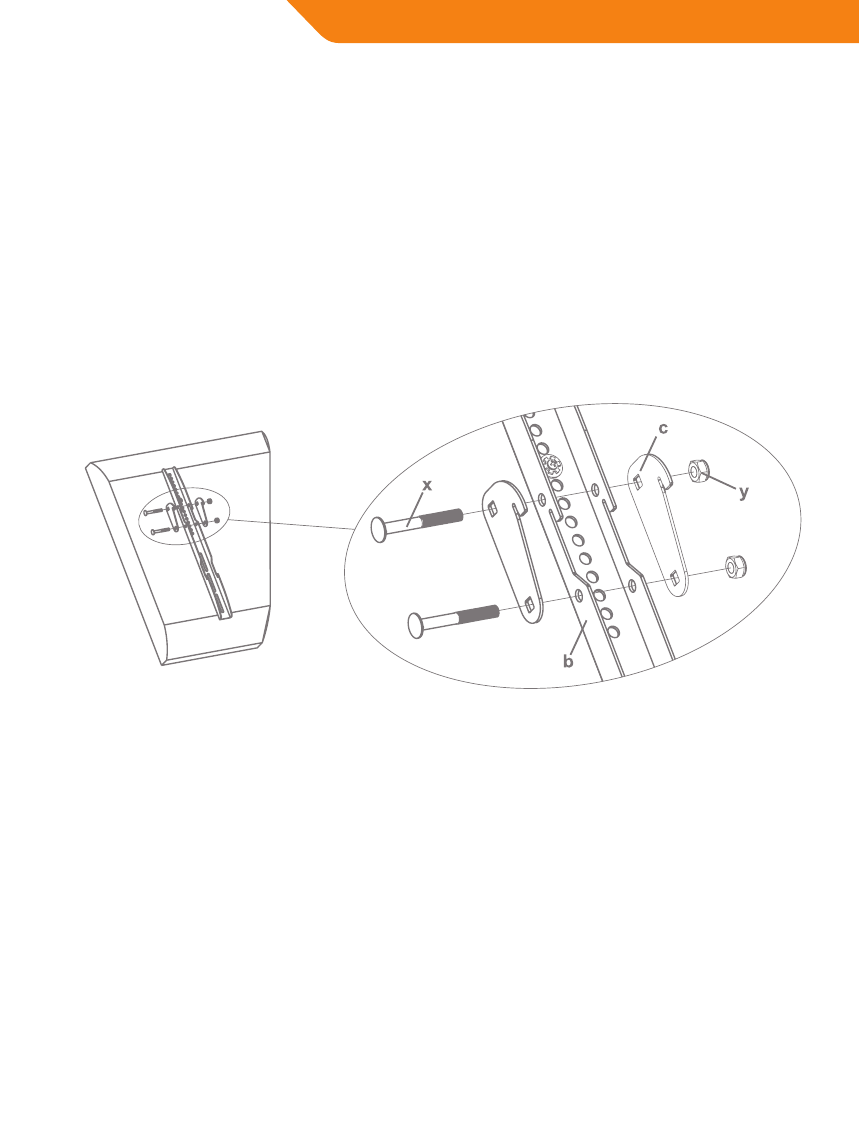

Diagram 3
