4.2. SINGLE output mode enables, flip the dip-switch 1~8(10-way Addressing Dip Switch)to set the intensity. The
dip-switch 9 disable. Each dip-switch represents a binary value.
The intensity can be set by combining the different dipswitches that will add up to the value you wish to achieve,
for example:
Setting the intensity for 21.
Flip switches1,3,&5 to the
"ON" position
Dipswitches# Value
1=1
3=4
5=16
=21
Setting the intensity for 201.
Flip switches1,4,7,& 8 to the
"ON" position
Dipswitches# Value
1=1
4=8
7=64
8=128
=201
5.Output Group Mode Setting
In the function, the dip-switch 7(8-way Function Dip Switch) is flipped to the "ON" position and the dip-switch 8 to
the "OFF" position. And use the dip-switch 1~4 of 8-way Function Dip Switch to set the desired Output Group Modes.
5.1. RGB output mode enables
5.1.1. 8 Group Output Mode is engaged by flipping the dip-switch 4 of 8-way Function Dip Switch to the "ON"
position. In this mode, has 8 groups with RGB output, of which Output 1~8 is not perfectly identical.
5.1.2. 4 Group Output Mode is engaged by flipping the dip-switch 3 of 8-way Function Dip Switch to the "ON"
position. In this mode, has 2 identical outputs distributed over 4 groups with RGB output.
5.1.3. 2 Group Output Mode is engaged by flipping the dip-switch 2 of 8-way Function Dip Switch to the "ON"
position. In this mode, has 4 identical outputs distributed over 2 groups with RGB output.
5.1.4. 1 Group Output Mode is engaged by flipping the dip-switch 1 of 8-way Function Dip Switch to the "ON" or "
OFF" position. In this mode, has 1 group with RGB output and Output 1~8 is identical.

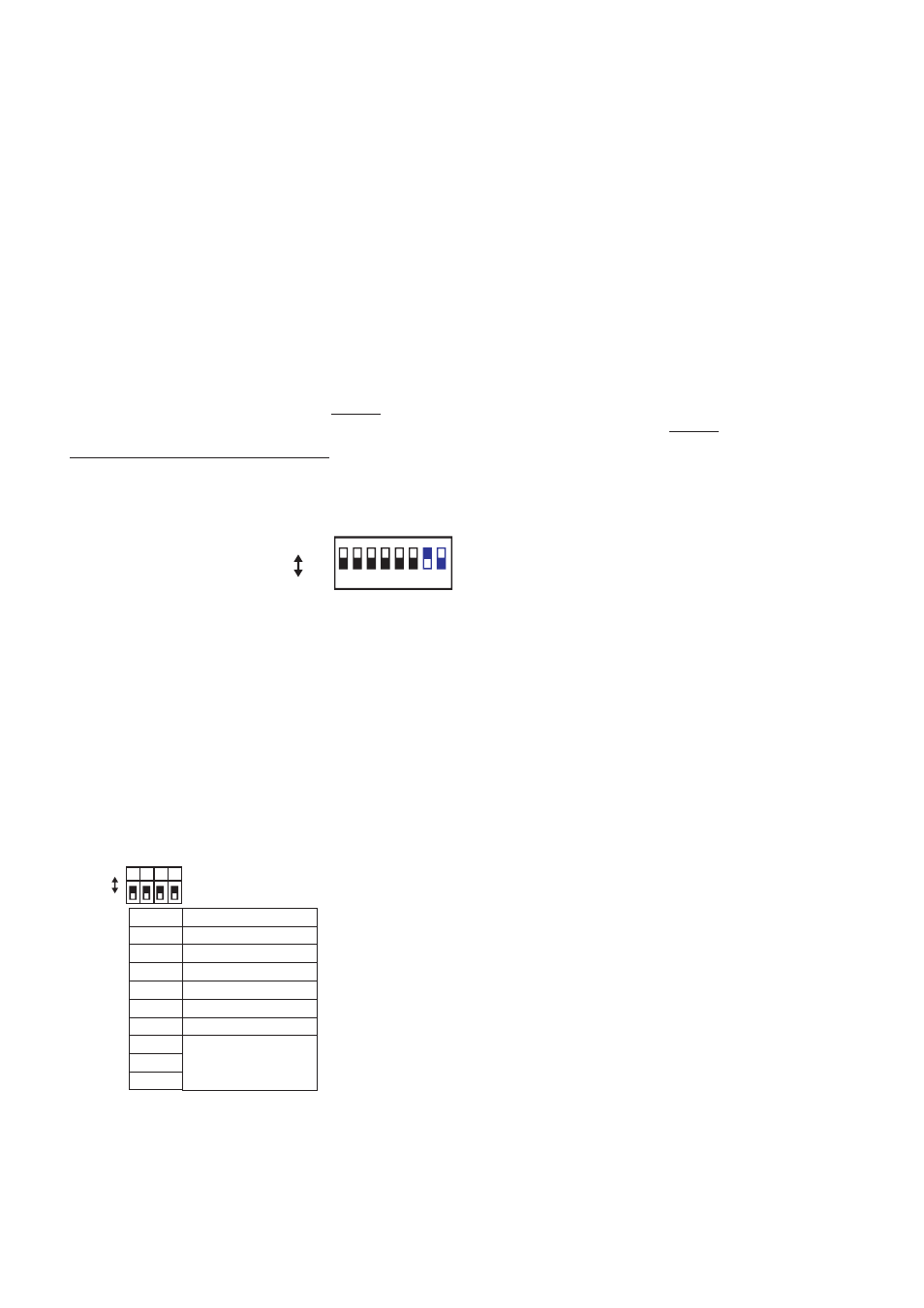

Example 1: Example 2:
1 2 3 "0" = "OFF" position
"1" = "ON" position.
0000
1000
0100
1100
0010
1010
0110 1 Group Output
4
2 Group Output
3 Group Output
4 Group Output
6 Group Output
8 Group Output
12 Group Output
24 Group Output
5.2.1. In 1 Group Output mode, has 1 group with Single output and
Output 1~24 is identical.
5.2.2. In 2 Group Output mode, has 12 identical outputs distributed over
2 groups with Single output.
5.2.3. In 3 Group Output mode, has 8 identical outputs distributed over
3 groups with Single output.
5.2.4. In 4 Group Output mode, has 6 identical outputs distributed over
4 groups with Single output.
5.2.5. In 6 Group Output mode, has 4 identical outputs distributed over
6 groups Single output.
5.2.6. In 8 Group Output mode, has 3 identical outputs distributed over
8 groups with Single output.
5.2.7. In 12 Group Output mode, has 2 identical outputs distributed over
12 groups with Single output.
5.2.8. In 24 Group Output mode, has 24 groups with Single output, of
which Output1~24 is not identical.
5.2. SINGLE output mode enables
-Page 7-
1 2 3 4 5 6 7 8
8-way Function Dip Switch
ON
OFF
1 =
0=
ON
OFF
1 =
0=
1110
1111
0001
Dip Switch 1 intensity equals 1
Dip Switch 2 intensity equals 2
Dip Switch 3 intensity equals 4
Dip Switch 4 intensity equals 8
Dip Switch 5 intensity equals 16
Dip Switch 6 intensity equals 32
Dip Switch 7 intensity equals 64
Dip Switch 8 intensity equals 128
