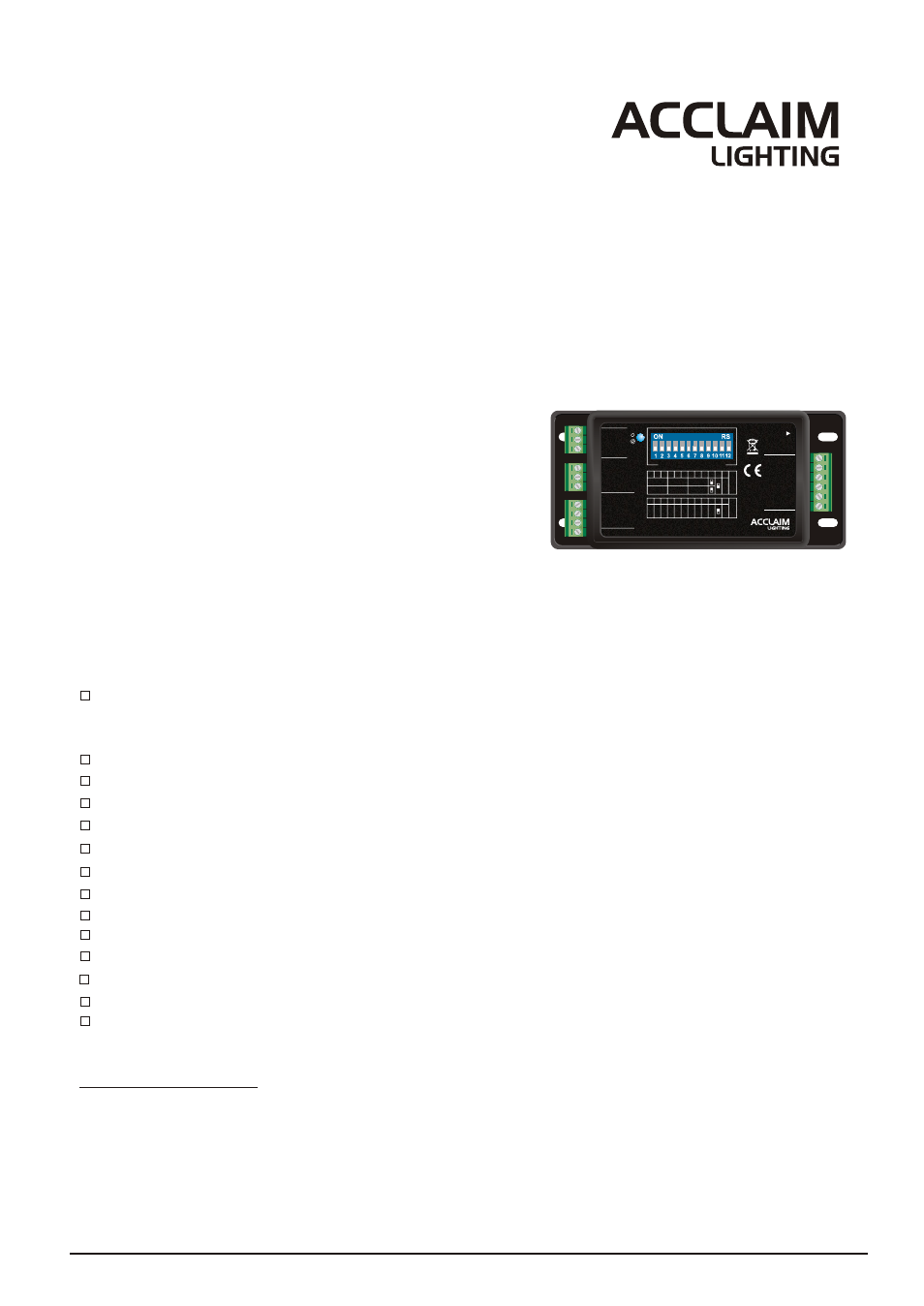

Acclaim Lighting AL Dimmer 3 HP - Manual

DESCRIPTIONS
Congratulations with your purchase of this product.
Check for transport damage.
You should be in possession of the following items:
1 AL-Dimmer-3 HP
1 Manual
1 Screwdriver
1 External Infrared Remote EYE sensor
1 LED remote controller
Should you discover transport damage after unpacking the equipment,
inform the hauler immediately. Never connect a damaged device. You
may also contact your supplier.
DELIVERY PACKET
AL-Dimmer-3 HP AL-Dimmer-3 HP
User Instructions
Read this manual carefully before using our AL-Dimmer-3 HP. The AL-Dimmer-3 HP, a multifunction LED dimmer
with 3 channels. It is designed to set the intensity for high power R.G.B. LEDs, features that the three channels can
be controlled separately and the user may select the current output as 350mA or 700mA. Available in online
operation, DMX control mode for slave control, Manual Dim and Auto mode for master control, infrared remote
controllable.
AL-Dimmer-3 HP
-1-
TECHNICAL SPECIFICATIONS
Operation temperature
Housing
Control Protocol
Listing
Dimensions
Weight
0 degC to +40 degC
Black plastic
DMX-512 (1990)
CE certified
115(L) x 54(W) x 23(H)mm
150g
DMX In/Out 3-pin terminal
OPERATION GUIDE
Connection Terminal
IP 20
Ingress Protection Rating
Power Requirement 12~24VDC, 6.5A Max.
IR In External Infrared Remote sensor port
Loading Out 6-pin terminal
DC In 4-pin terminal
Make sure the output current matches the power requirement of the LED fixtures prior to use AL-Dimmer-3 HP.
1.Output Current Option
12VDC: enables to drive 1~3 LEDs/CH.
24VDC: enables to drive 1~6 LEDs/CH.
Output Current 350mA or 700mA for option
While the built-in Dipswitch is "On", the AL-Dimmer-3 HP outputs 3 groups current of 700mA for driving 3 W LED,
maximum 18 LEDs can be linked in total.
To link to the power, the LED indicator lights red.
The output current defaults as 350mA
While the built-in Dipswitch is "Off", the AL-Dimmer-3 HP outputs 3 groups current of 350mA for driving 1 W LED,
maximum 18 LEDs can be linked in total. To link to the power, the LED indicator is blacked out.
and a built-in Dipswitch allows the user to select the output current
as 350mA or 700mA.
GND
Data-
Data+
+12-24V
+12-24V
GND
GND
D
C
I
N
Made in P.R.C.
D
M
X
I
N
D
M
X
O
U
T
AL-DIMMER-3 HP
GND
Data -
Data+
Blue -
Blue +
Green -
Green +
Red -
Red +
OUTPUT
DMX Address S etting
1 2 3 4 5 6 7 8 9
Red Green Blue
M
a n
u a l
Fade Speed Pattern
10 11 12
N
C
1 2 4 8 1
6
3
2
6
4
1 2 8
2 5 6
A d d re
ss
N
C
1 2 3 4 5 6 7 8 9 10 11 12
IR
(350/700mA)
350mA
700mA
RoHS
