FIAT 500 User Manual
Page 200
CONTROL PANEL AND
INSTRUMENTS
Instrument background colour and type may vary according to the version.
The warning lights
and
are only present on Diesel versions.
The warning light
is available only on versions with Dualogic gearbox (see “Dualogic” supplement).
Panel version with light background

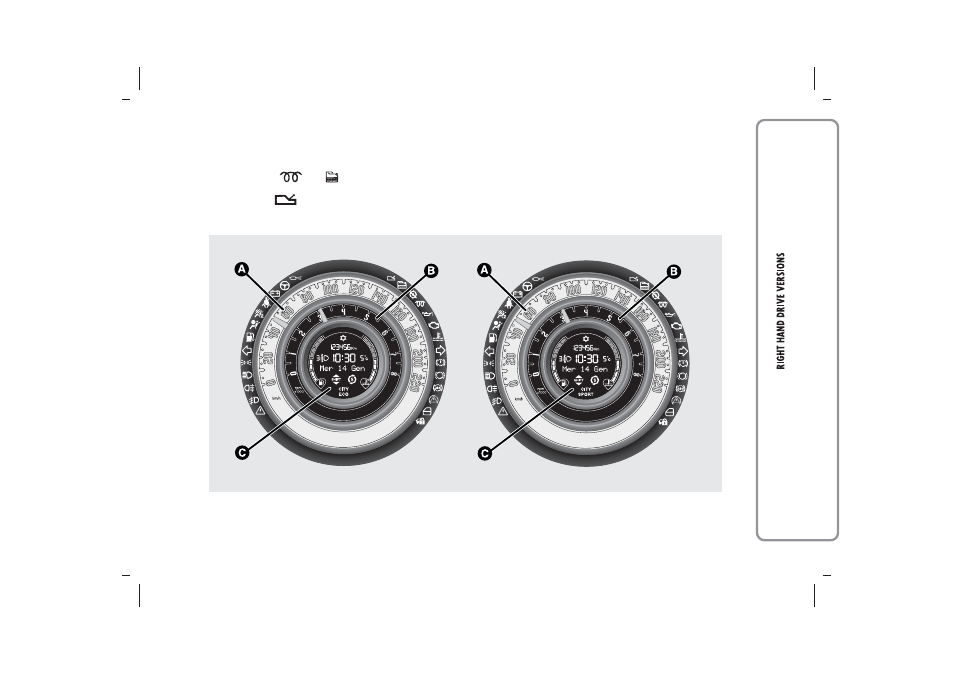

A. Speedometer (speed indicator) B. Rev counter (on the diesel versions, the odometer f.s.d is 6000 rpm)
C. Multifunctional display with digital fuel level indicator and digital indicator of engine coolant temperature.
fig. 2
F0S0361
199
