Connecting the 3CXE589EC PC Card 5
Connecting the 3CXE589EC PC Card
1 Remove all PC Cards from your notebook and turn it on.
2 If you are using the XJACK RJ-45 connector, connect
one RJ-45 connector on the network cable to the
3CXE589EC PC Card XJACK connector
➀ , as shown
in Figure 4.
a Insert the other RJ-45 connector into the network
port
➁ .
b Insert the PC Card into the PC Card slot ➂ and slide it all
the way in.
You may see Windows prompts for driver installation.
c Go to Chapter 2 to install the network driver that allows
you to login to the network.
3 If you are using the BNC T-connector, connect the PC
Card COMBO cable ➀ to the 3CXE589EC PC Card.
a Connect the BNC T-connector to the PC Card COMBO
cable ➁ .
You must supply your own BNC T-connector.

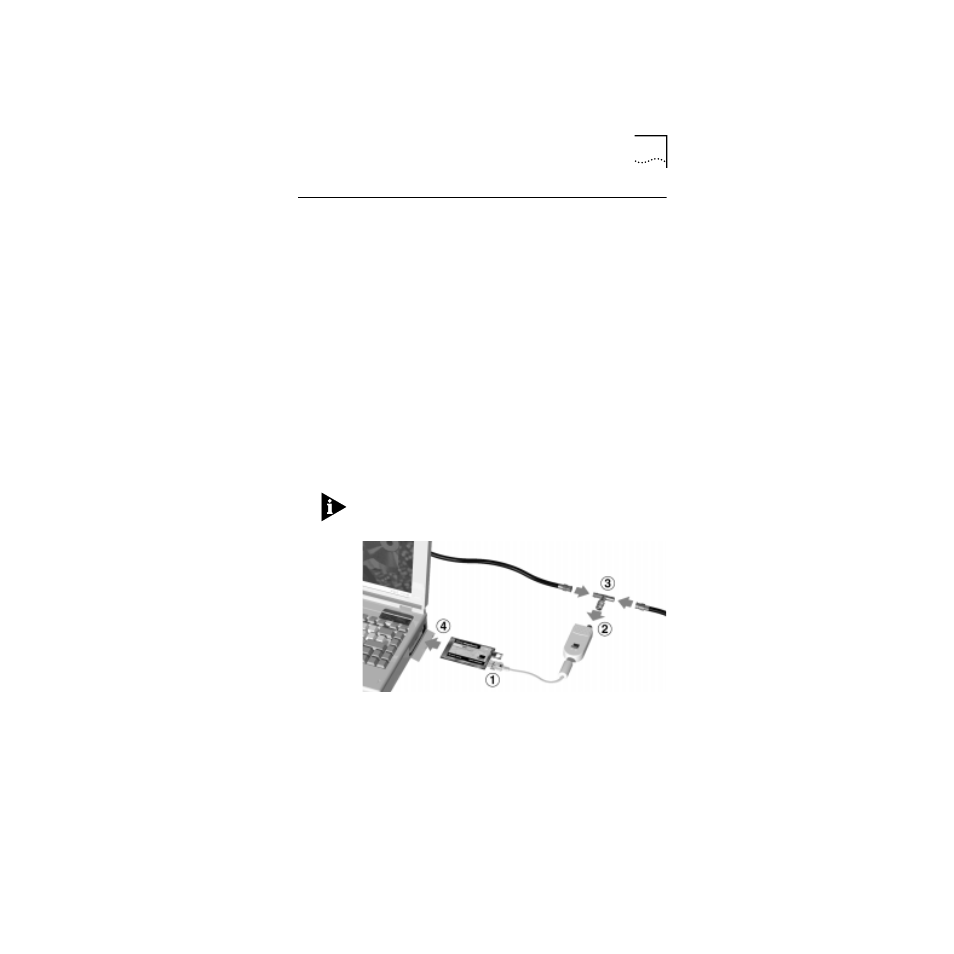

Figure 5 Connecting the 3CXE589EC PC Card
b Connect the BNC T-connector to the Ethernet cable ➂ .
c Insert the PC Card into the PC Card slot ➃ and slide it all
the way in.
You may see Windows prompts for driver installation.
Go to Chapter 2 to install the network driver that allows
you to login to the network.
