Fabric Module 11
5 Fan LEDs
6 Power module LEDs
7 I/O module LEDs

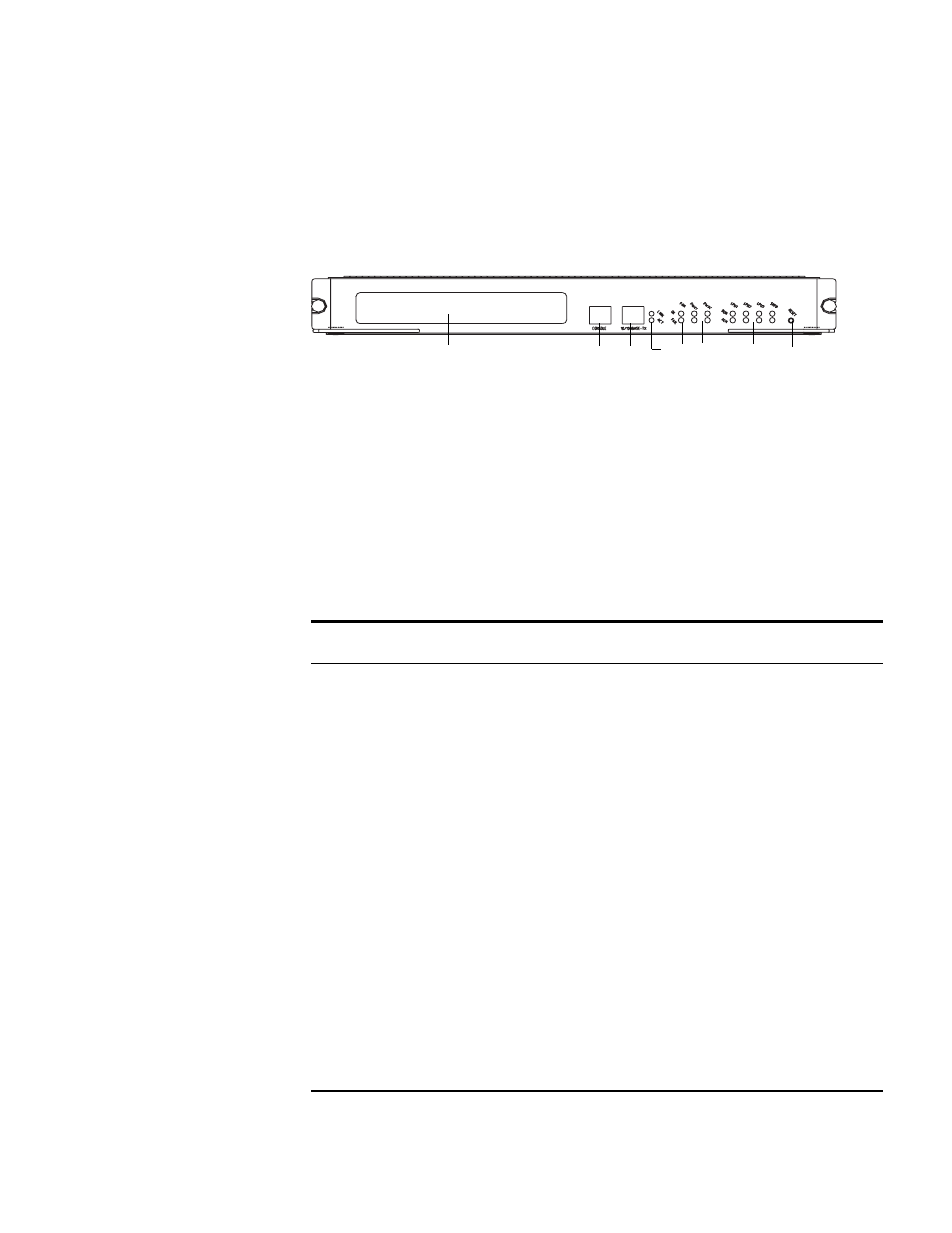

Figure 3 illustrates the front panel of the Fabric 32.
Figure 3 Fabric 32
1 Submodule slot
2 Console port
3 Ethernet port
4 Ethernet port LEDs
5 Fan LEDs
6 Power LEDs
7 I/O module LEDs
8 Reset button
Table 4 lists Fabric specifications.
Submodule Slot The submodule slot in the Fabric 32 offers extended Ethernet capacity using the
following submodules:
Table 4 Fabric Specifications
Item
PoE Fabric 96
(3C16886) Fabric 64 (3C16857
or 3C16857R)
Fabric 32 (3C16872)
Bandwidth 96 Gbps 64 Gbps 32 Gbps
CPU MPC8245 MPC8260 200 Mhz
BootROM 512 KB 1 MB
SDRAM 256 M 256 MB
Flash 32 MB 16 MB
Submodule slot 1
Dimensions (L x W) 366.7 mm x 340 mm (14.5 x 13.5 in)
External ports One console port that supports local and remote dial-up configuration
management of the switch.
One 10BASE-T/100BASE-TX port for upgrade and network
management
One Compact Flash
port for storing log
and host version and
for online software
upgrades
Four 1000BASE-X-SFP
ports
Maximum power
consumption 80 W 80 W 70 W (with
submodule)
3C16872 3C16872
1 2 3 4 5 6 7 8
