Page 56: Table 2.5
Installation
Local and Remote Sensing
54
Operating Manual for XFR 2.8kW Series Power Supply
.

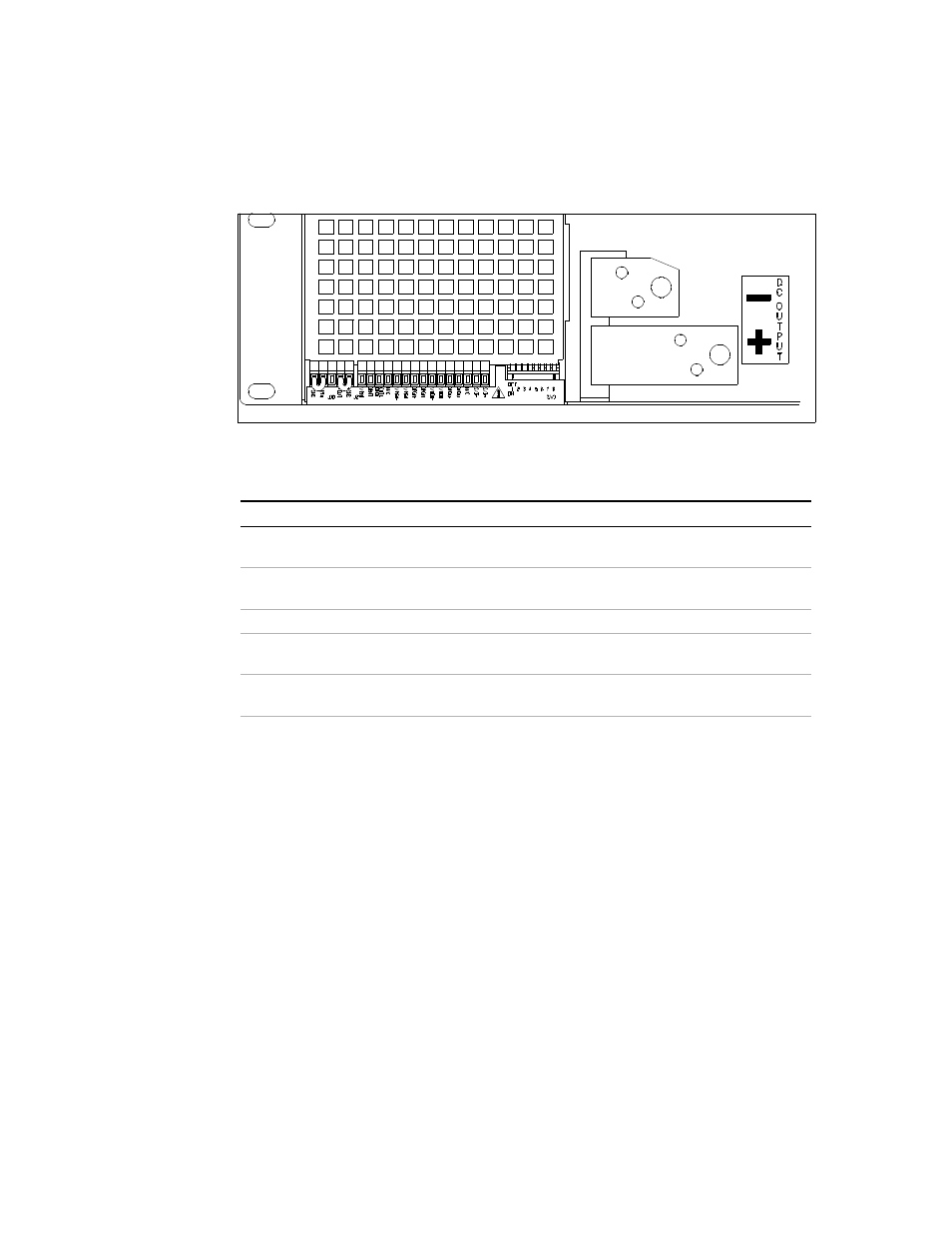

Figure 2.11J10 Sense Connector
(Shown with local sense jumpers connected.)
Table 2.5 Rear Panel J10 Sense Connector Terminals and Functions
Terminal Name
Function
J10-1
Return Sense (–SNS)
Remote negative sense connection.
Default connection to terminal 2.
J10-2
Negative Output (Return or RTN)
Connected internally to negative bus
bar.
J10-3
N/C
No connection.
J10-4
Positive Output (+OUT)
Connected internally to positive bus
bar.
J10-5
Positive Sense (+SNS)
Remote positive sense connection.
Default connection to terminal 4.
