5v to 100v models, Strip the ends of the wires, Insert load wire in strain relief – Xantrex Technology XFR 2800 User Manual

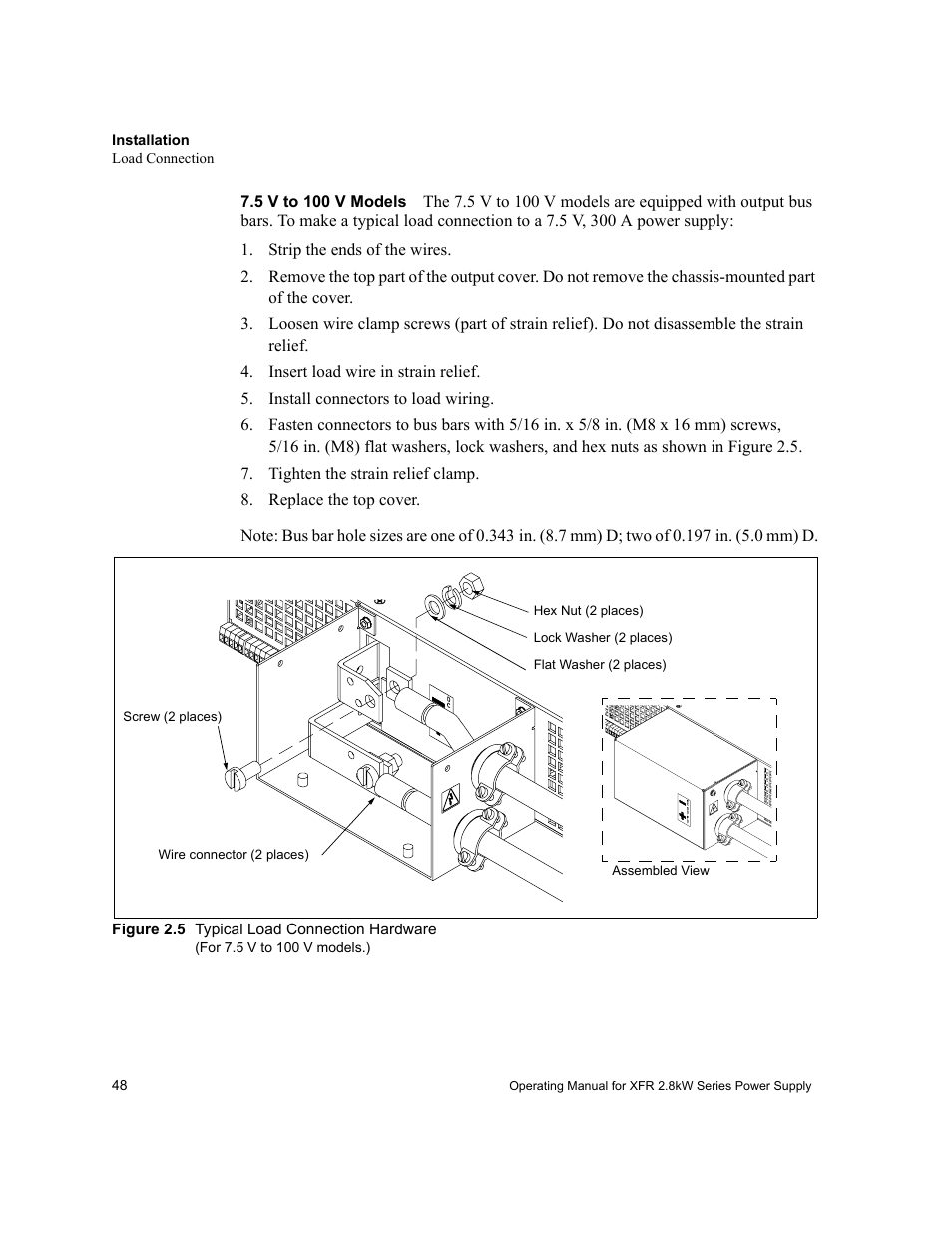

Page 50: Install connectors to load wiring, Tighten the strain relief clamp, Replace the top cover, Figure 2.5 typical load connection hardware, For 7.5 v to 100 v models.), Figure 2.5

5v to 100v models, Strip the ends of the wires, Insert load wire in strain relief | Install connectors to load wiring, Tighten the strain relief clamp, Replace the top cover, Figure 2.5 typical load connection hardware, For 7.5 v to 100 v models.), Figure 2.5 | Xantrex Technology XFR 2800 User Manual | Page 50 / 90 5v to 100v models, Strip the ends of the wires, Insert load wire in strain relief | Install connectors to load wiring, Tighten the strain relief clamp, Replace the top cover, Figure 2.5 typical load connection hardware, For 7.5 v to 100 v models.), Figure 2.5 | Xantrex Technology XFR 2800 User Manual | Page 50 / 90
