Appendix A Product Specifications
DMA-1000 Series User’s Guide
86
5 Align the holes on the back of the DMA with the screws on the wall. Hang the DMA on
the screws.

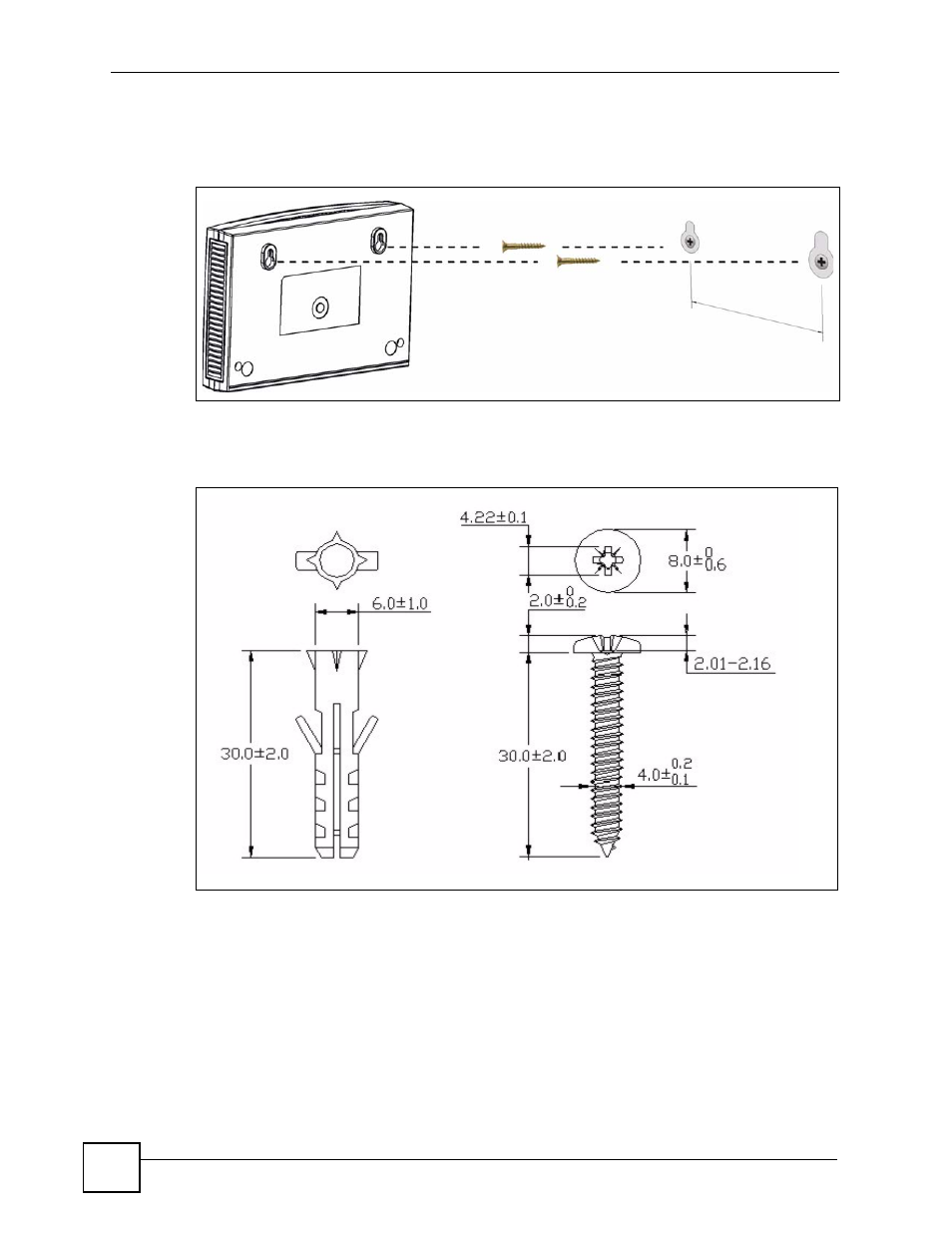

Figure 41 Wall-mounting Example
The following are dimensions of an M4 tap screw and masonry plug used for wall mounting.
All measurements are in millimeters (mm).
Figure 42 Masonry Plug and M4 Tap Screw
