Viewing Inverter/Charger Information
975-0467-01-01 3–3
Viewing Inverter/Charger Information
The LED screen displays inverter/charger information as well as feature
settings in coordination with the LED lights underneath the screen.
◆ Press the Select button to toggle between the following information:
Adjusting Feature Settings
The Power and Select buttons can be used to:
• change the charging current setting,
• change the inverter mode setting,
• disable or enable the audible alarm,
• change the shutdown setting, and
• return to factory default settings.
Info and Setting
LED Screen
Info and Settings LED
DC Input Voltage
12.8 (example) Solid – Input Voltage (V)
DC Input Current
11 (example)
Solid – Input Current (A)
AC Output Power
0.85 (example) Solid – Output Power (kW)
Charging Current
Setting
5A or 15A or
35A or 55A
none
Inverter Mode Setting
IN0 or In1
none
Alarm Setting
aL0 or AL1
none
Low Voltage Setting
sdL or sdH
none

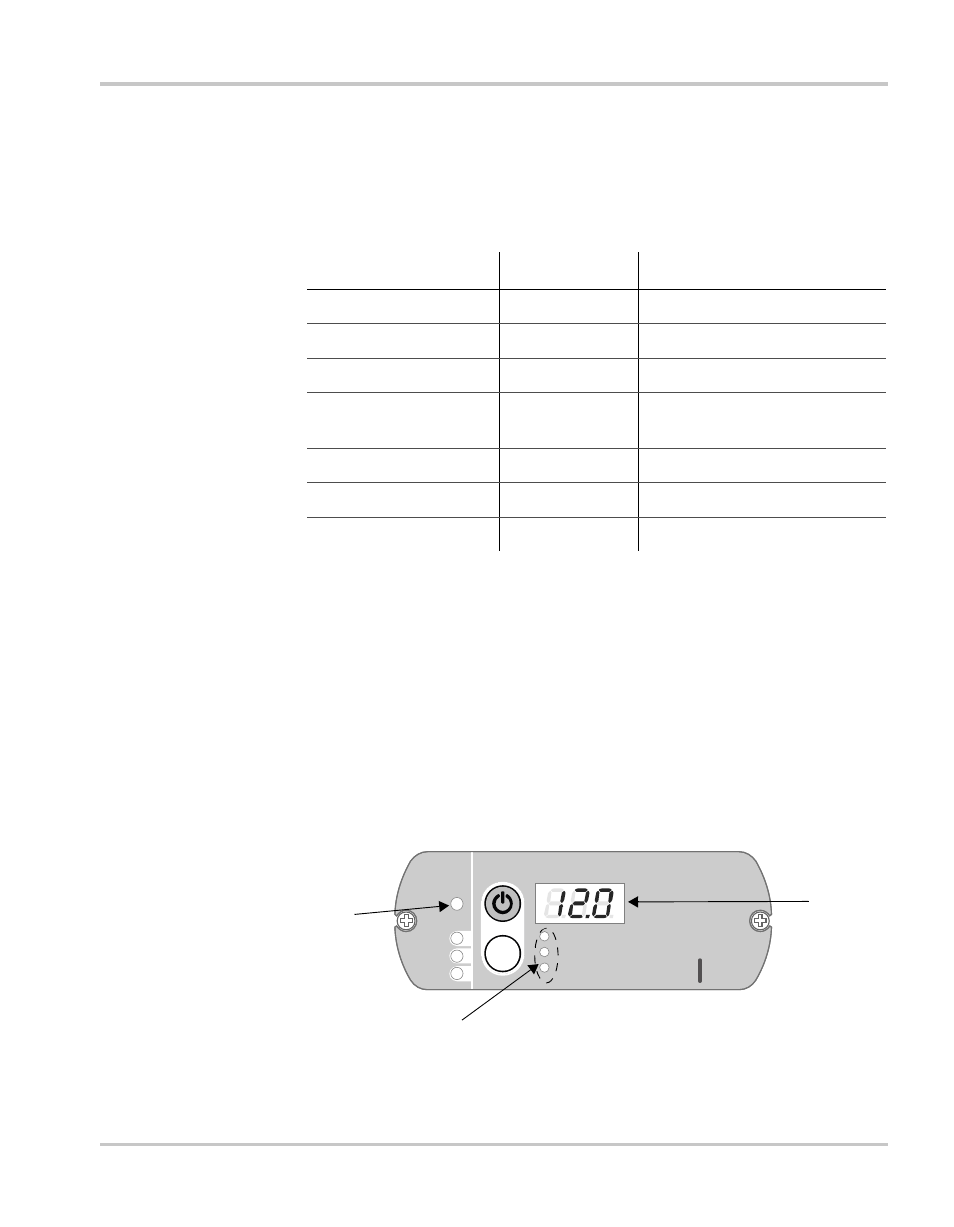

Figure 3-2 Display Panel
FREEDOM
HW 1000
Input Voltage (V)
Select
STATUS
Battery
Fault
Utility
Input Current (A)
Output Power (kW)
LED
screen Status
LED light
Info and Settings
LED lights
