Display Panel
975-0467-01-01
2–5
Display Panel
Feature
Description
1
Power button is the main unit switch that turns the
Freedom HW
’s inverter function ON
or OFF and is also used to select unit feature settings. See
for additional
information.
2
Three-digit LED display screen shows status information and fault codes. See
for additional information.
3
Status LED indicates the mode of operation with a three-color LED. See
for
additional information.
4
Select button changes status information displayed on the display screen and is also used
to select unit feature settings. See
for additional information.
IMPORTANT: See
Chapter 4, “Display Panel Operation”
starting on
for detailed
information on operating the panel’s buttons.

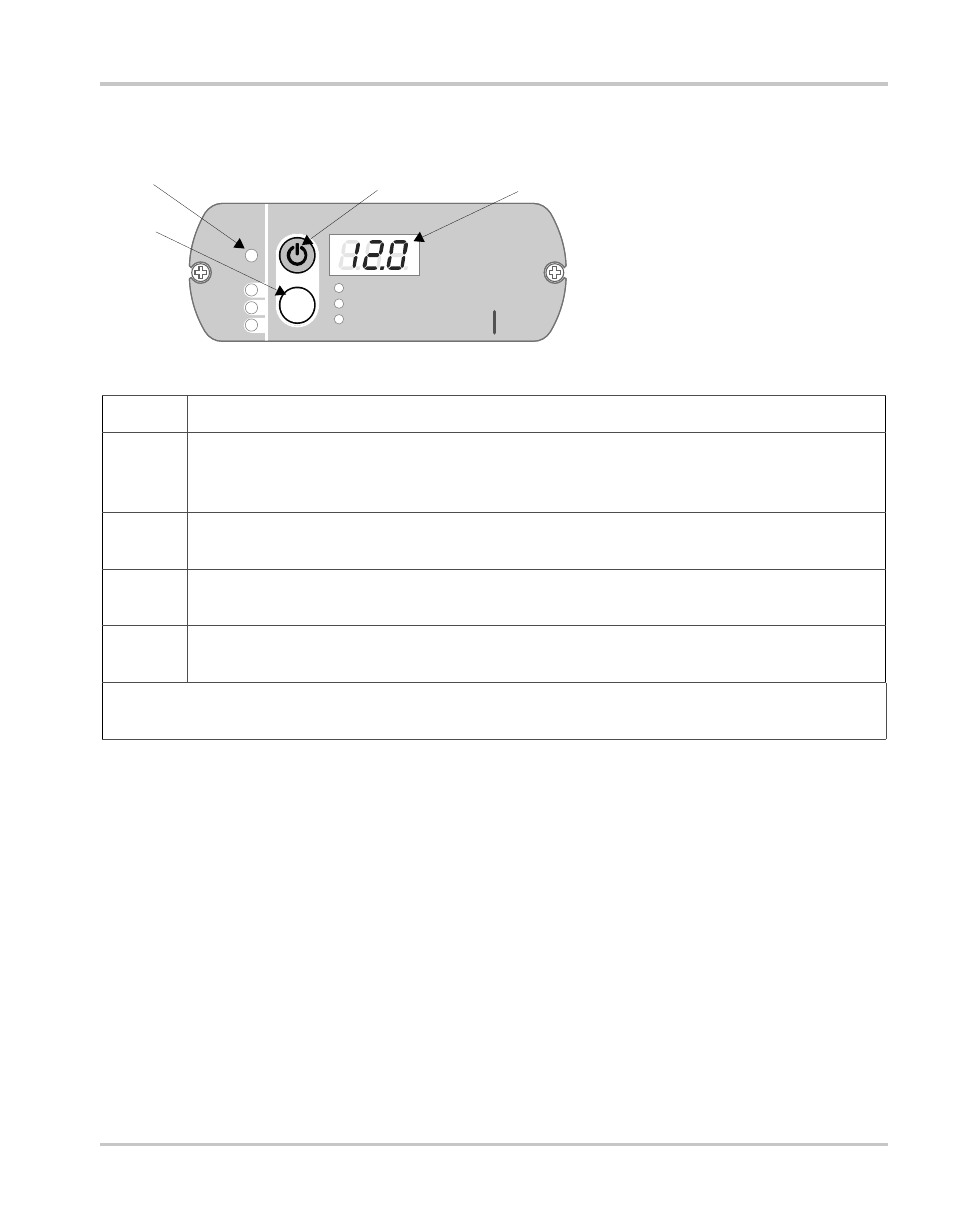

FREEDOM
HW 1000
Input Voltage (V)
Select
STATUS
Battery
Fault
Utility
Input Current (A)
Output Power (kW)
4
1
2
3
