anel Operation and Displa

Utility Displays

DME64N/DME24N Owner’s Manual

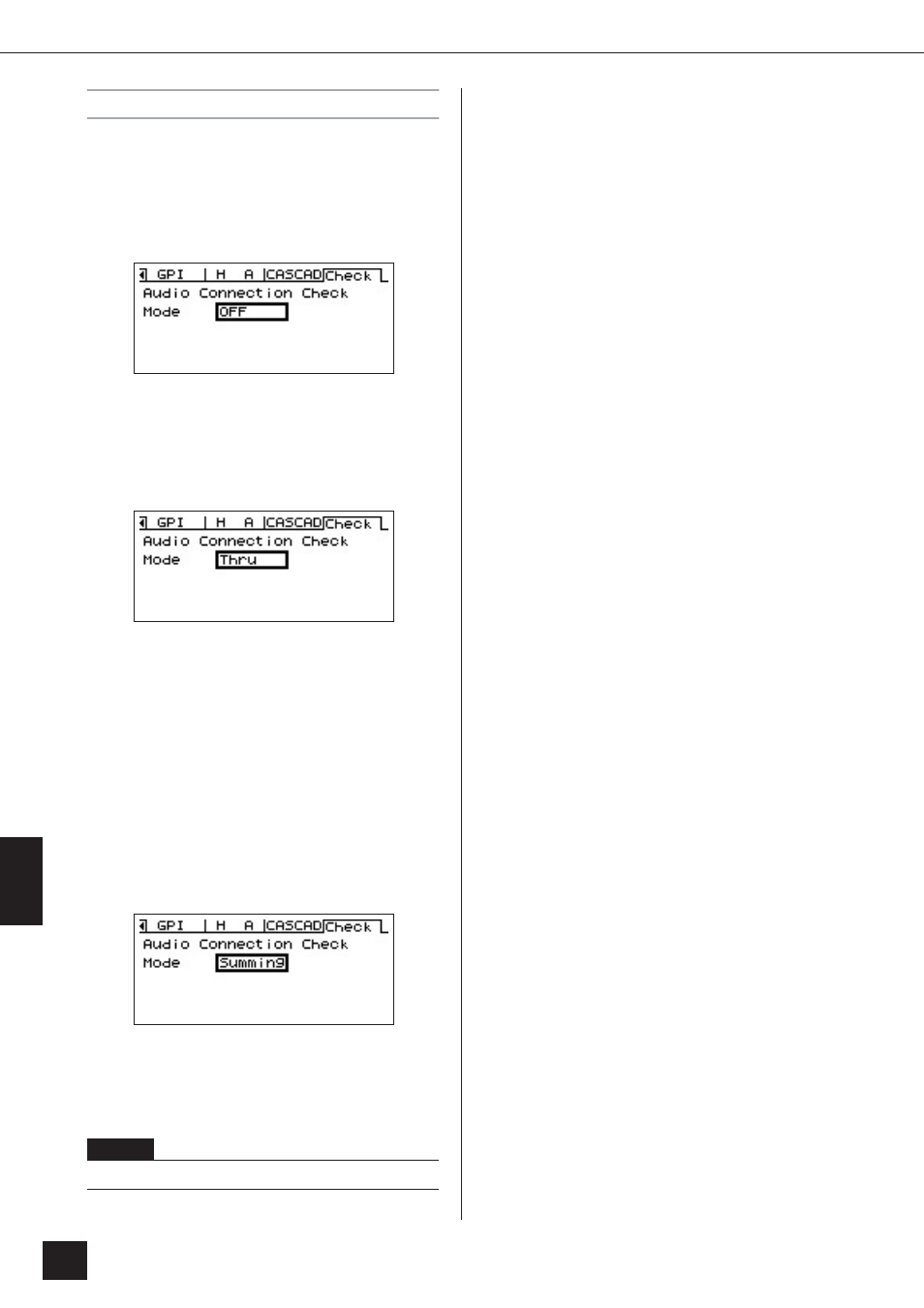

Check Page

Even in an environment with no computer, you can check
the connections without using DME Designer by directly
connecting the DME64N/24N input/output.
The meter does not operate during a connection check.

MODE: OFF

Makes connections in the configuration used in the current
scene.
This is set to OFF when the unit is started.

MODE: Thru

Directly connects the Input and Output of each slot one-
to-one for
each channel.
When input-only or output-only cards like AD or DA
cards are
inserted in the slots, you cannot perform checks in this
mode.
In the DME24N, the internal AD and internal DA are
directly
connected on each channel.

MODE: Summing

Sums all input signals coming from Inputs (-12dB),
without regard to
device or card type, and outputs it through all Outputs.

NOTE
