036-21346-001 Rev. A (202)
2 Unitary Products Group
1. Rated in accordance with ARI Standard 110, utilization range “A”.
2. Dual element fuses or HACR circuit breaker.
3.
Rated under standard A.R.I. conditions of 80º DB/67º WB indoor, 95º outdoor.
4. Other temperature ratings of wire will have different rated ampacities. Refer to NEC for proper wire sizing recommendations. If using type NM or
NM-B cable, wires must be sized to 60º C ampacities per NEC Article 336, Section 26. NEC and Local Codes superced any wire
recommendations made in these specifications.
All dimensions are in inches. They are subject to change without
notice. Certified dimensions will be provided upon request.

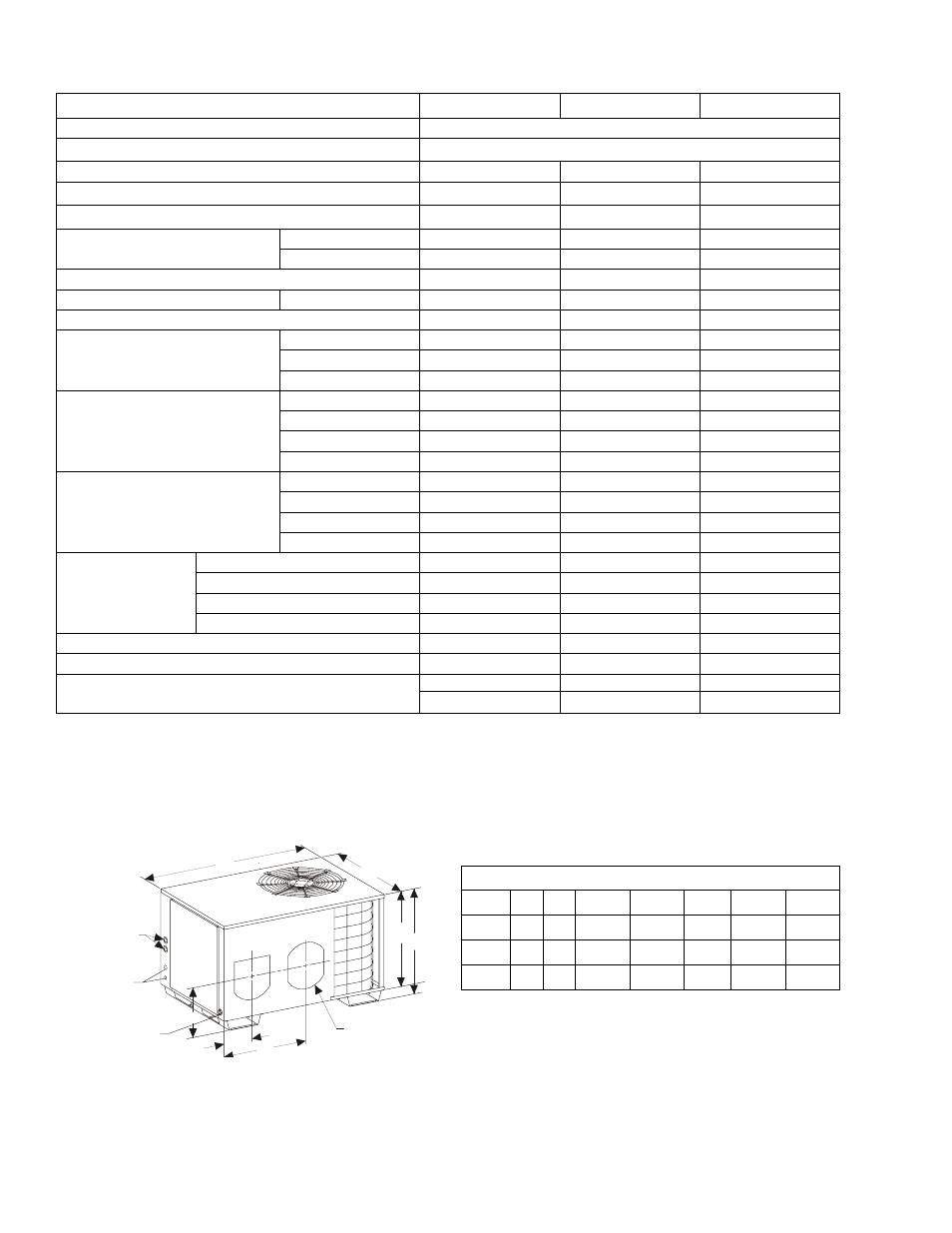

Physical and Electrical Data
MODEL 036H1081A 048H1081A 060H1081A
Unit Supply Voltage 380/415 - 3 - 50
Normal Voltage Range 1 342 - 455
Minimum Circuit Ampacity 12.4 14.8 16.8
Max. Overcurrent Device Amps 2 15 20 25
Compressor Type 3 Recip Recip Recip
Compressor Amps
Rated Load 6.1 8.0 9.6
Locked Rotor 39.0 53.0 79.0
Crankcase Heater No No No
Fan Motor Amps Rated Load 1.8 1.8 1.8
Fan Diameter Inches 18“ 20” 20”
Fan Motor
Rated HP 1/3 1/3 1/3
Nominal RPM 1,100 1,100 1,100
Nominal CFM 2,300 3,000 3,000
Condenser
Coil Data
Face Area Sq. Ft. 9.25 11.24 11.24
Rows Deep 1 2 2
Fin / Inches 18 15 15
Tubing Diameter 3/8 3/8 3/8
Evaporator
Coil Data
Face Area Sq. Ft. 3.61 4.67 4.67
Rows Deep 3 4 4
Fin / Inches 14 12 12
Tubing Diameter 5/16 5/16 5/16
Blower Data
Motor HP / RPM 3/4 / 1,000 3/4 / 1,050 3/4 / 1,100
Max. Static Pressure In. Water .80 .80 .80
Dia. x Width (in.) / Rated CFM 10 x 7/1,200 10 x 7/1,500 10 x 7/1,600
Motor Full Load AMPS 3.0 3.0 3.0
Shipping Weight (lbs.) 270 354 360
Unit Charge (Lbs. - Oz.) 4-4 7-0 7-10
Minimum Wire Size 4
75º C Copper @ 400 Volt
#14 (0-80 ft.) #14 (0-60 ft.) #12 (0-60 ft.)
#12 (81-130 ft.) #12 (61-90 ft.) #10 (61-100 ft.)
C
A
G
HEATER
ACCESSORY
KNOCK-OUTS
CONTROL
WIRING
OPENINGS
3/4” NPT FEMALE
DRAIN OPENING
12” DIAMETER
RETURN
E
D
F
B
UNIT DIMENSIONS (INCHES)
UNIT A B C D E F G
036 44 30 26 5/8 24 1/8 7 3/4 22 1/2 12 5/8
048 46 32 28 5/8 26 1/8 7 3/4 22 1/8 12 5/8
060 46 32 28 5/8 26 1/8 7 3/4 22 1/8 12 5/8
