Chapter 2: Setting Security 21
5 55 5
In the Security Configuration window, click the Encryption
Mode
drop-down arrow and select WPA2-Enterprise.
6 66 6

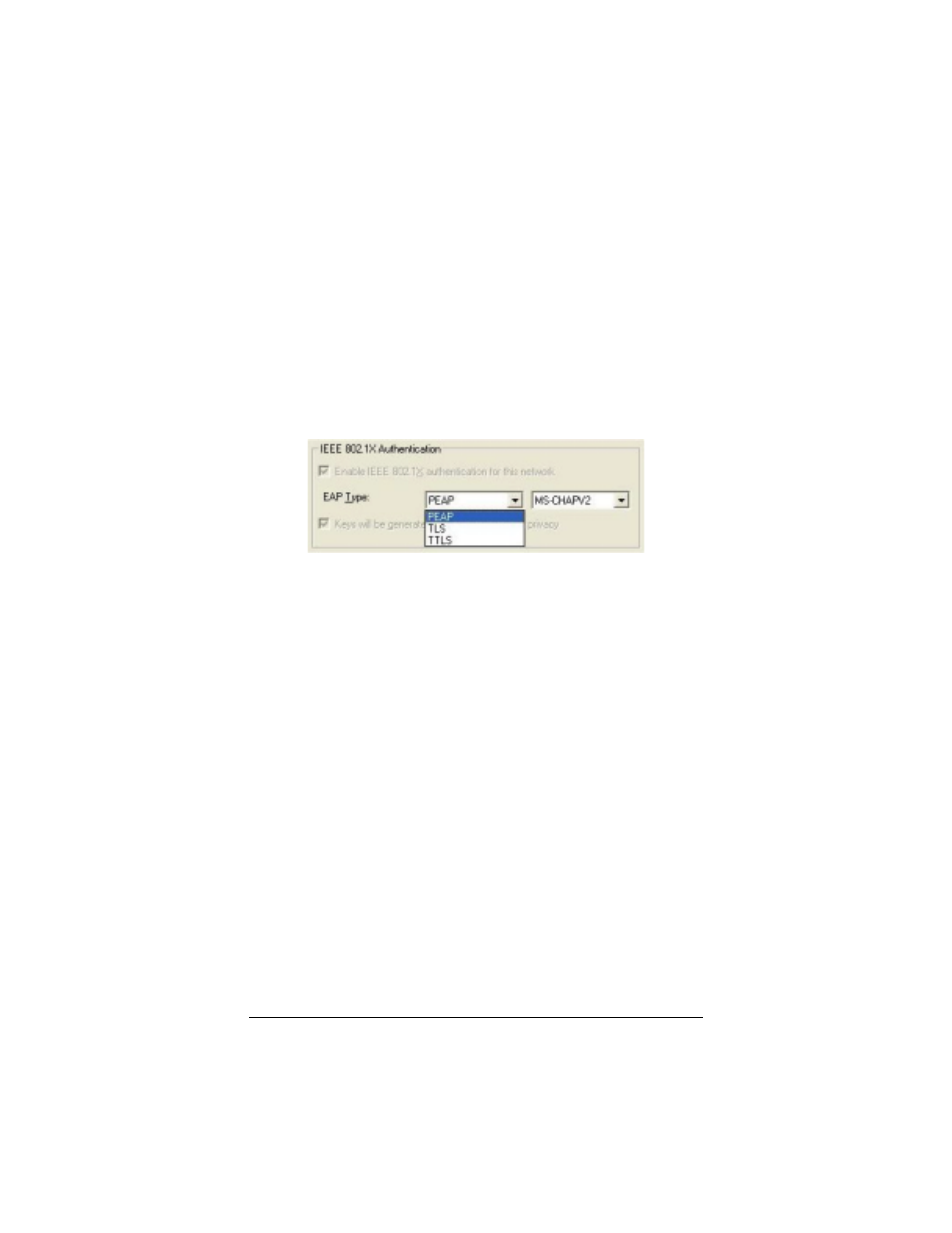

In the IEEE 802.1X Authentication area, note that the
check box marked Enable IEEE 802.1X authentication for
this network
is selected. With IEEE 802.1X authentication,
each wireless device (client) sends a signal to the wireless
access point, which in turn sends the signal to the RADIUS
server. The server determines whether or not the client is
allowed to join the network.
7 77 7
Click the EAP (Extensible Authentication Protocol) Type
drop-down list and select an authentication protocol:
• PEAP (Protected Extensible Authentication Protocol –
the (default). With PEAP, you can select from three
authentication extensions:
MS-CHAPV2. Microsoft’s version of CHAP
(Challenge-Handshake Authentication Protocol
(default)
GTC
TLS/SmartCard
• TLS (Transport Layer Security). There are no
authentication extension options with TLS.
