6 R110Xi/R170Xi User Guide 23063L-003 Rev. 1 12/6/04
Introduction
Printer Components
Printer Components

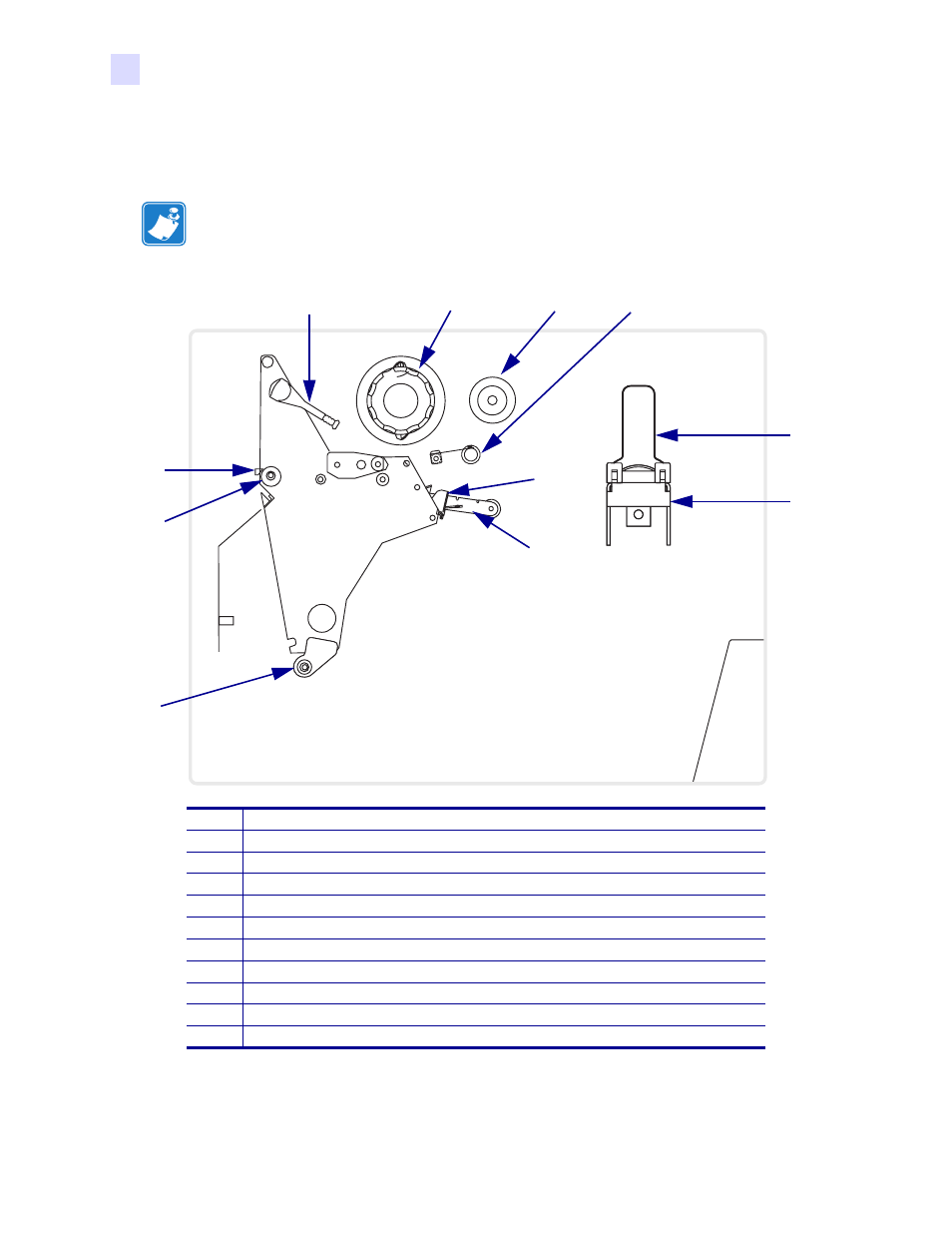

Figure 5 shows a side view of the printer’s internal components.
Figure 5 • Internal Components
Note • Depending on the printer options that you selected, your printer could look slightly
different. For more about printer options, go to www.zebra.com .
1 Printhead lever
2 Ribbon take-up spindle
3 Ribbon supply spindle
4 Ribbon dancer assembly (only on select models)
5 Media guide
6 Media dancer roller assembly
7 Media supply guide
8 Media supply hanger
9 Lower roller
10 Platen roller
11 Tear-off bar
1 2 3 4
7
8
6
11
10
5
9
