112 R110Xi/R170Xi User Guide 23063L-003 Rev. 1 12/6/04
Memory Cards
CompactFlash Card
CompactFlash Card
A CompactFlash card is a nonvolatile memory card that stores data even when the power to
the printer is turned off. A Type I-compliant CompactFlash card holds extra memory or
optional fonts for your printer.
To install a CompactFlash card, complete these steps:
1. Turn the AC power Off (O).
2. Disconnect the AC power cord from the printer.
3. Remove the two screws near the bottom of the electronics cover ( Figure 42 ).

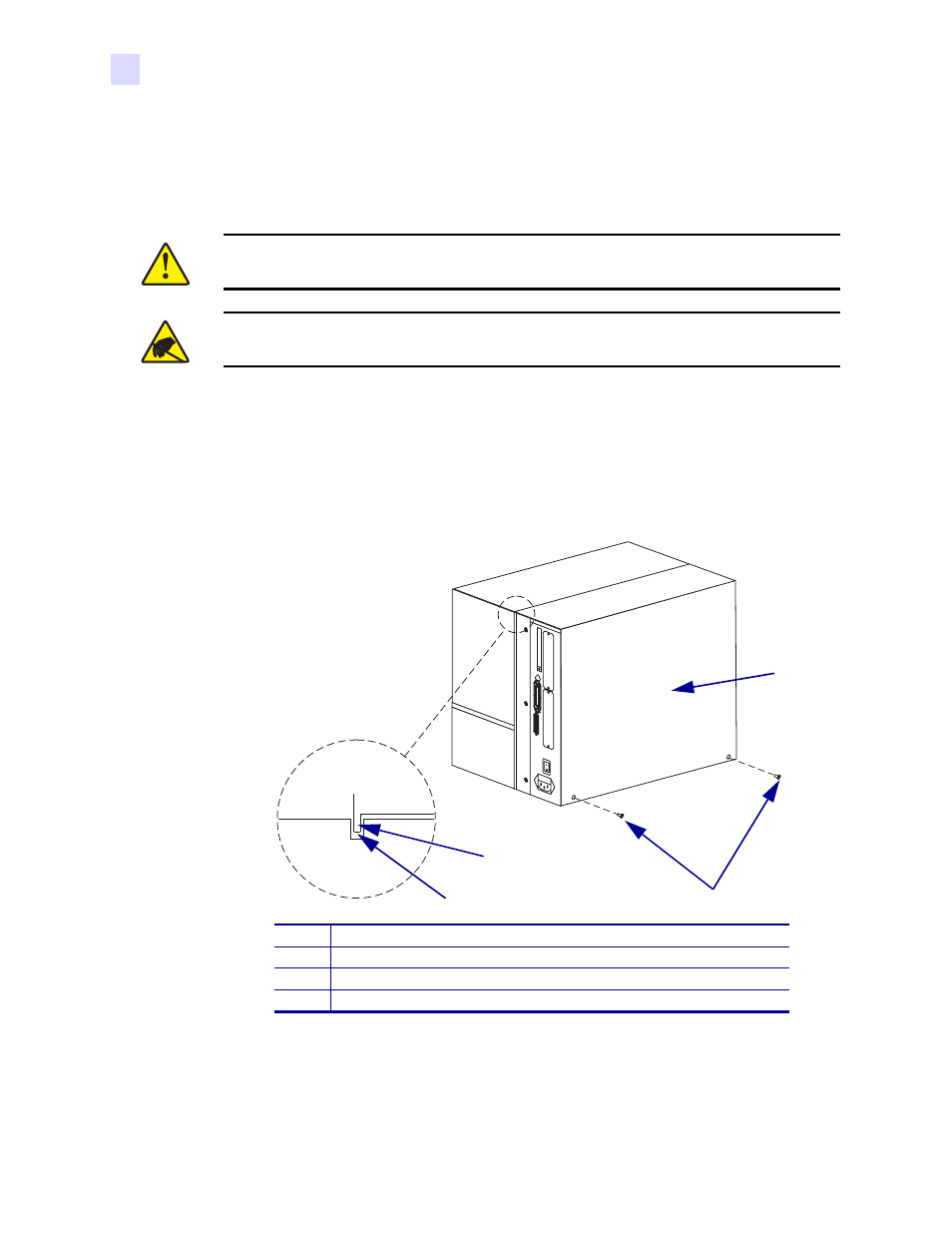

Figure 42 • Printer Exterior
4. Lift the electronics cover at the rear top corner. Pull the corner forward and up, then lift the
cover up and away from the printer.
Caution • This procedure should only be performed by qualified service technicians.
Electrostatic Discharge Caution • Observe proper electrostatic safety precautions when
handling any static-sensitive components such as circuit boards and printheads.
1 Electronics cover
2 Screws
3 Channel
4 Lip of cover
3
4 2
1
