Curb layout drawing, Fig. 8 – curb layout drawing – York ECO R-407C User Manual
Page 37
FORM 100.50-EG1
37
YORK INTERNA
TIONAL
Curb Layout Drawing
LD06419

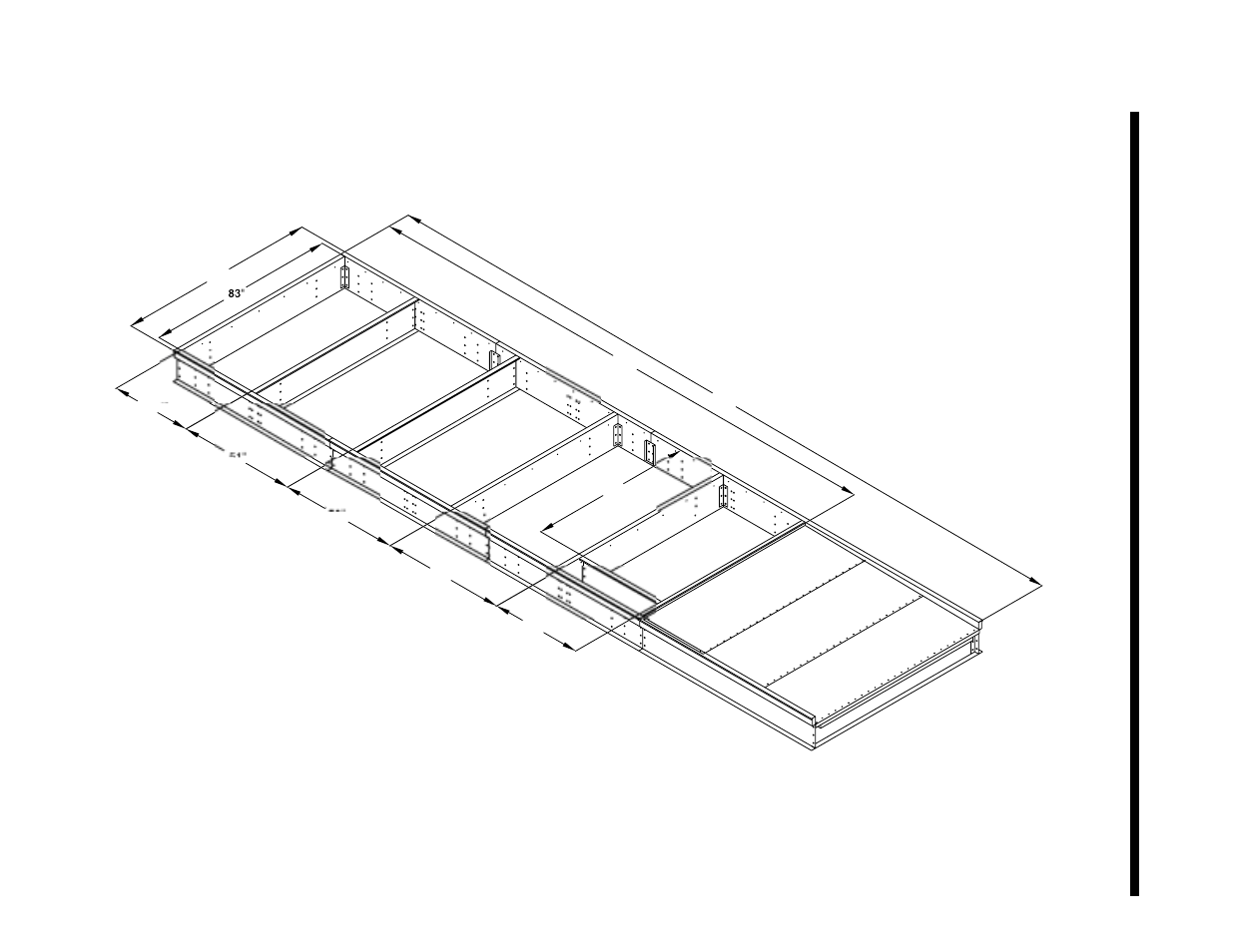

FIG. 8 – CURB LAYOUT DRAWING
4. CURB MATERIAL IS 14 GAUGE GALVANIZED, NOT PAINTED.
3. ROOF CURB MUST BE INSTALLED SQUARE AND LEVEL.
2. ROOF CURB SHIPPED IN PIECES FOR FIELD ASSEMBLY.
OTHER PARTS ARE FURNISHED AND INSTALLED "BY OTHERS".
1. CURB, NAILER & GASKET ONLY, FURNISHED BY YORK. ALL
NOTES:
5. CURB INSULATED WITH 1.5"-3# INSULATION.
SUPPL
Y
RETURN
237"
339"
87"
71-3/5"
40"
53-3/4"
52"
51
35-3/4"
