565 Trailer Sprayer - Parts & Schematics
Section F

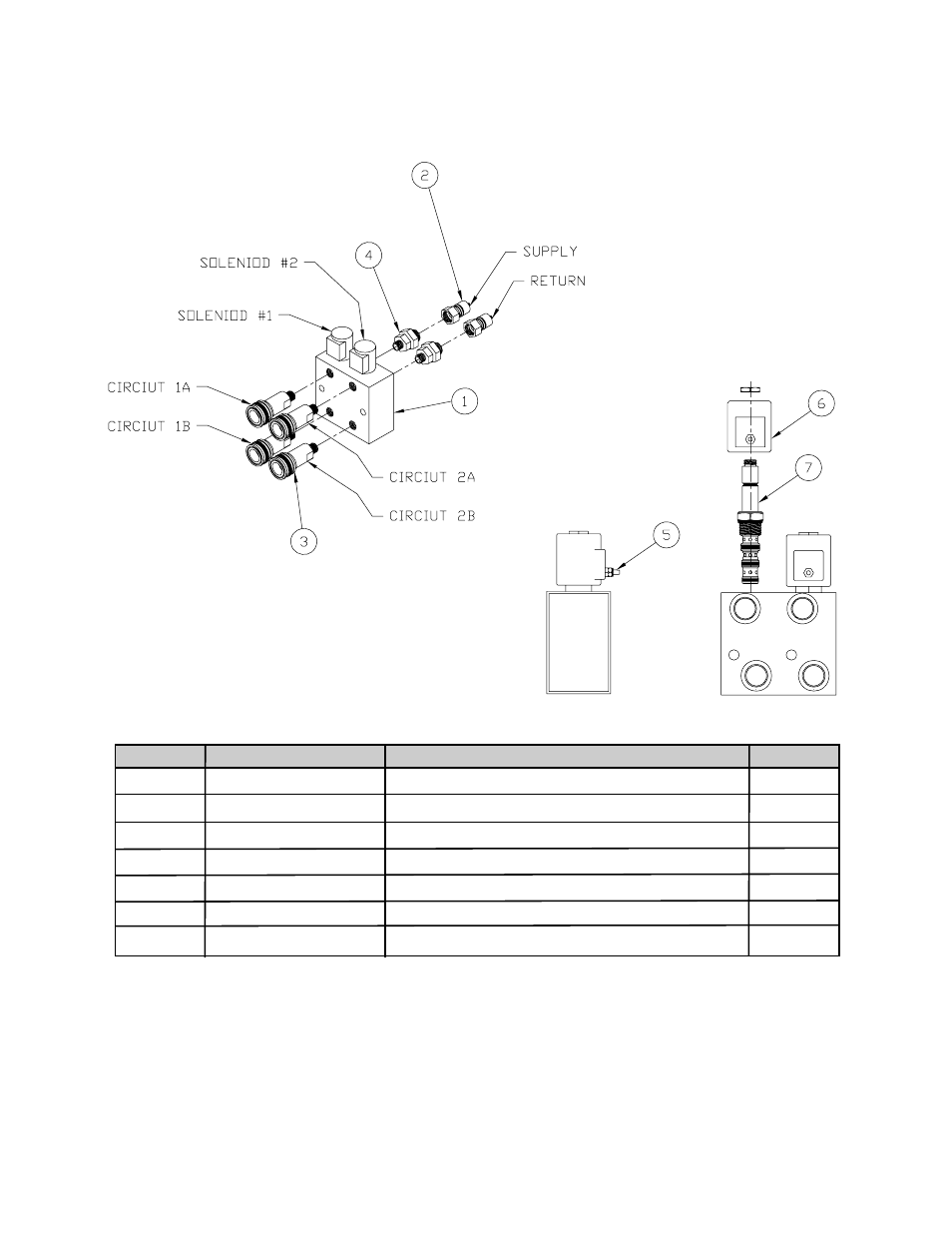

Description: Hydraulic Multiplier Valve Breakdown
22
Section F
Ref-005487A
1 270-058 Block M10937-1 1510/BP 1
2 272-019 Coupling Fasse ISO Poppet Male Tip 2
3 272-018 Coupling Fasse ISO Poppet Female 4
4 210-180 Fitting Fasse Orbit Eccentric 2
5 230-095 Cap #3 2
6 253-003 Coil 6354012 DD 2
7 273-004 Cart SV10-44-0-N-00 2
Item# Part # Description Quantity
Notes:
1. Torque HFCART (Item 15) to 25 Ft. Lbs.
2. Torque Coil Nuts (Item 13) to 5 Ft. Lbs.
