565 Trailer Sprayer - Parts & Schematics
Section F
51
Section F

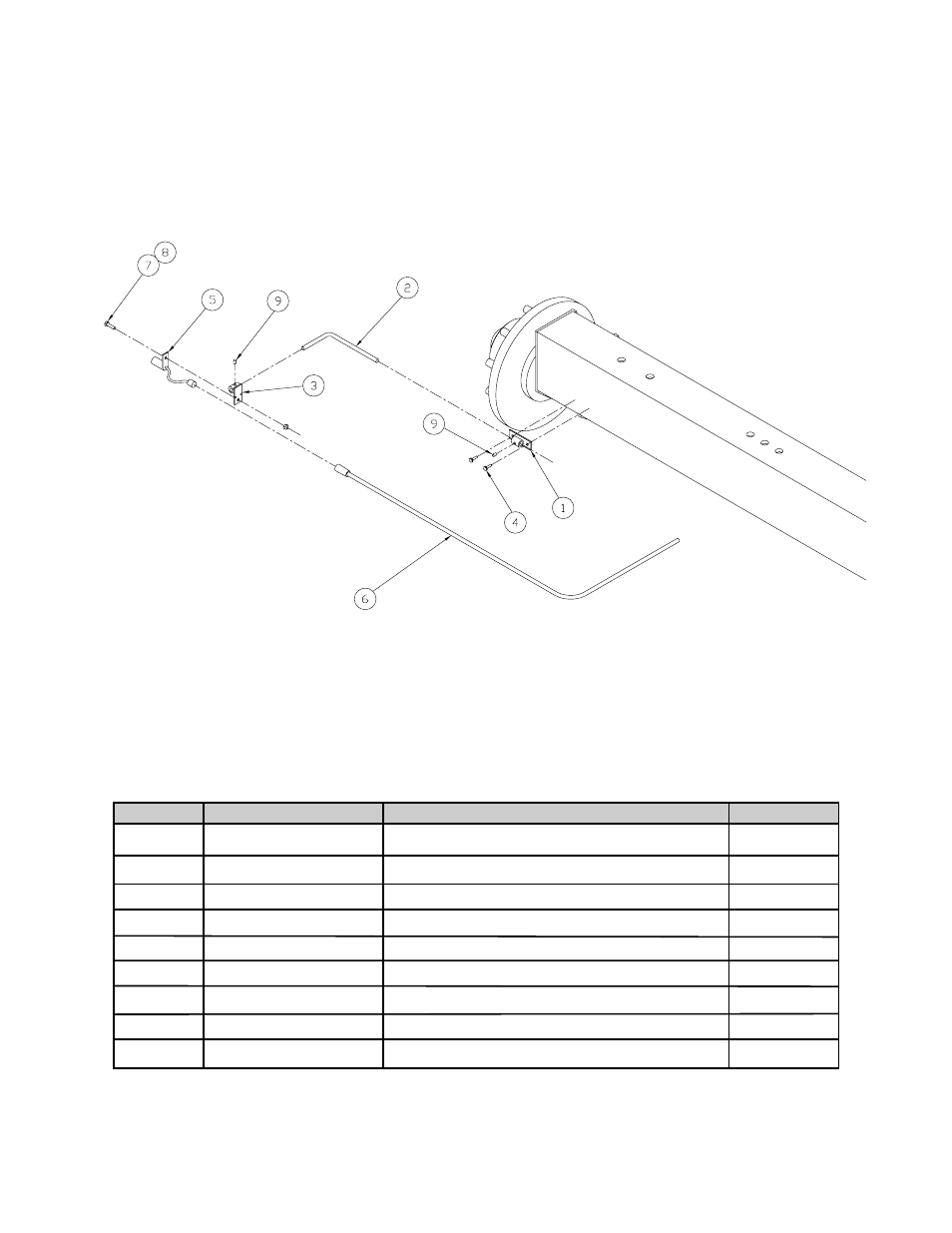

Description: Raven Proximity Sensor
1 010439 Weldment; Axle Mount 1
2 010442 Rod; Adjustment 1
3 010443 Weldment; Sensor Mount 1
4 171-C Screw; TEK 410HSS Cad Plated 2
5 063-0159-982 Sensor; Gear Tooth Speed 1
6 115-0159-018 Cable; Speed Sensor 24’ Ext. Cable 1
7 BH-025-075-2 Bolt; 1/4 x 3/4 Gr. 2 1
8 LN-025-NI Locknut; 1/4” Nylon Insert 1
9 STS-025-038 Setscrew; 1/4 x 3/8 Allen Hd 2
Item# Part # Description Quantity
