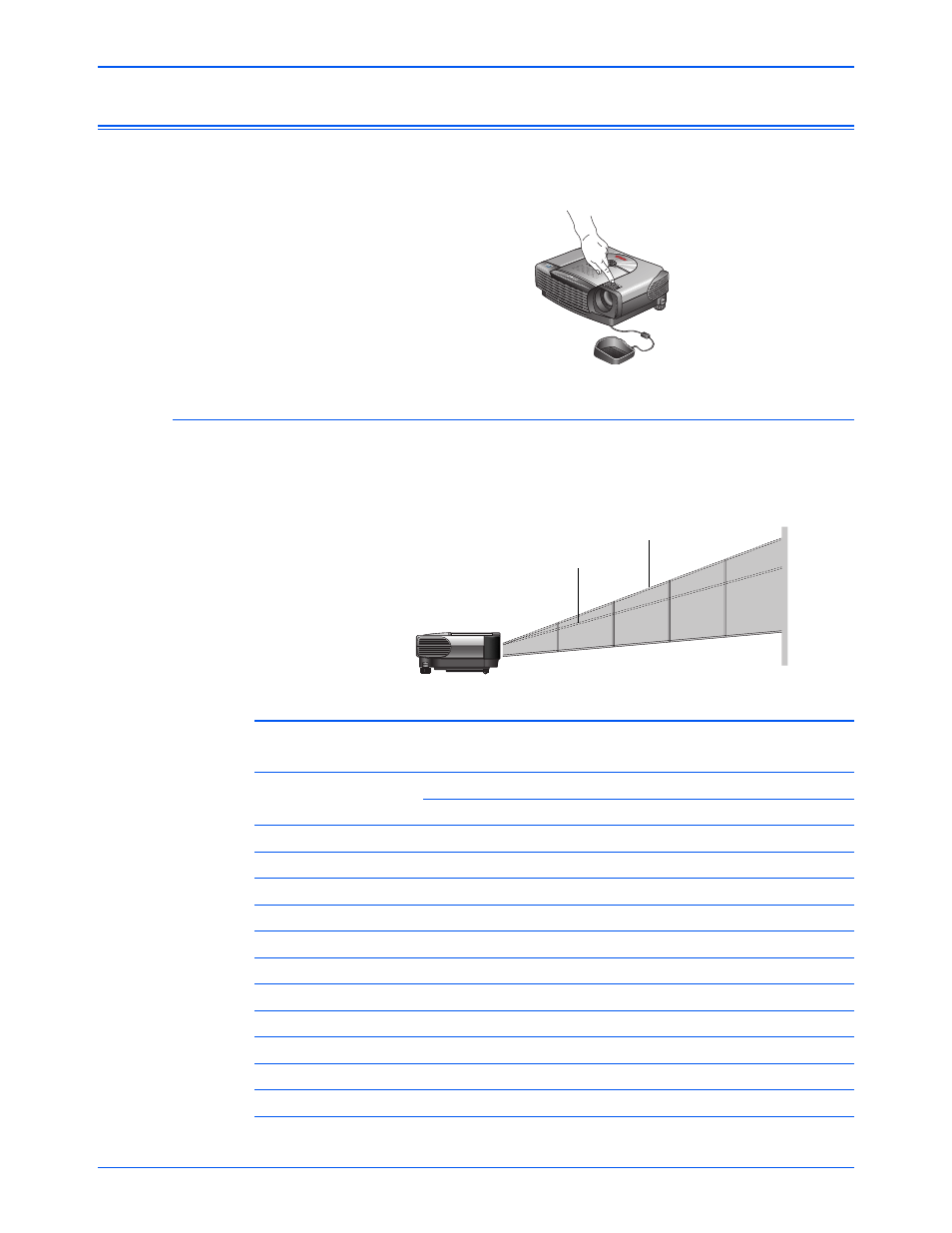

Connecting the Projector
Adjusting the Projector Zoom/Focus
You adjust the focus and zoom in/out with the focus ring and zoom
wheel. Rotate the focus ring and zoom wheel.
Adjusting Projection Image Size
Use the following figure and table to select the best projection
distance and screen size. Maximum and minimum screen sizes are
diagonal measurements. The table is for reference only.
1.2m 2.0m 4.0m 6.0m 10.0m
Maximum Screen Size
Minimum Screen Size
Projection Distance
4:3 Screen Size Diagonal
(inches)
16:9 Screen Size Diagonal
(inches)
Wide Screen Television Wide Screen Television
1.2m (47") 33.0 27.5 30.2 25.2
1.5m (59") 41.2 34.3 37.8 31.5
2m (79") 55.0 45.8 50.4 42.0
2.2m (86") 60.5 50.4 55.5 46.2
3m (118") 82.5 68.7 75.7 63.1
4m (157") 110.0 91.6 100.9 84.1
5m (197") 137.5 114.5 126.2 105.1
6m (236") 165.0 137.5 151.4 126.2
7m (275") 192.5 160.4 176.6 147.2
8m (314") 220.0 183.3 201.9 168.2
9m (354") 247.5 206.2 227.1 189.3
10m (393") 275.0 229.1 252.4 210.3
