Xerox DP 820 User’s Guide 5
The Xerox DP 820 Projector

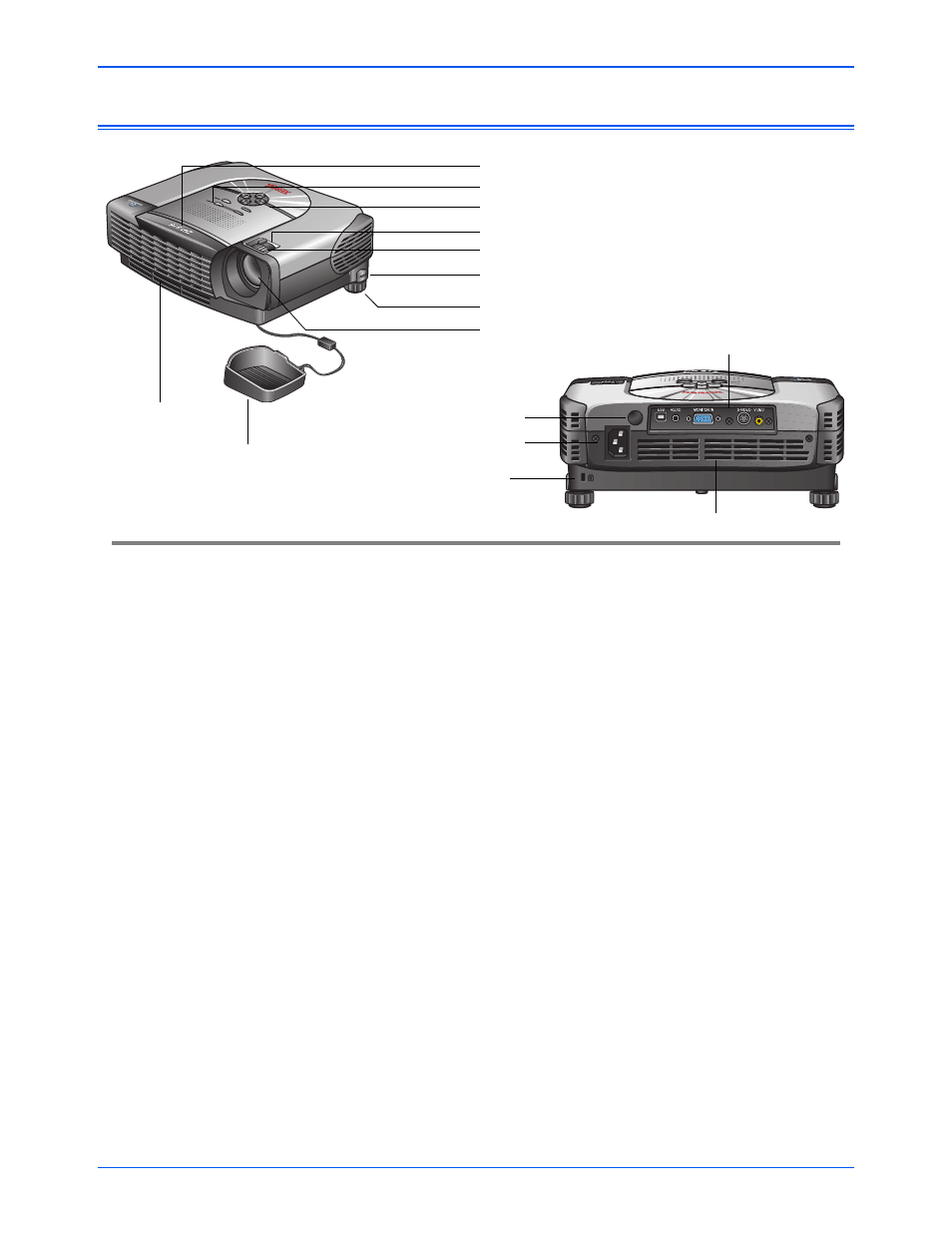

The Xerox DP 820 Features and Controls
Front and Rear Infrared Remote Sensors—Infrared receivers
that receive signals from the remote control pointed at the front or
back of the projector. Do not cover or block these sensors.
Audio Speaker—Provides audio output.
Control Panel—Control buttons and Indicator LEDs. See “Panel
Control” on page 16 for a description of the Control Panel.
Zoom Wheel—Rotate to zoom the image in or out.
Focus Ring—Rotate to manually adjust the focus of the image.
Foot Adjustor Release Button(s)—Press to release the foot
adjustors on both sides of the projector to lower or raise it.
Foot Adjustors—Turn left or right for fine leveling adjustments.
Projection Lens—Projects the image onto the screen.
Lens Cap—Protective cap to keep the lens from dirt or damage.
Always attach the cap when the projector is not in use.
Ventilation Slots—Intake and exhaust slots for ventilation. Do not
block these slots. Careful: Exhaust slots can be HOT.
Interface Connector—Provides connection ports for video and
audio devices. See “Interface Connector” on page 6 for a
description of these ports.
Kensington™ Lock Slot—Slot for inserting a Kensington cable
and lock to protect your projector from theft.
Power Connector—Plug the power cord into this connector.
Zoom Wheel
Focus Ring
Foot Adjustor Release Button
(on either side, next to both foot adjustors)
Front Infrared Remote Sensor
Projection Lens
Kensington™ Lock Slot
Control Panel
Lens Cap
Interface Connector
Audio Speaker
Power Connector
Foot Adjustor
Ventilation Slots (intake)
Rear Infrared Remote Sensor Ventilation Slots
(exhaust)
