2 Preparing To Print
8254E / 8264E Quick Start Guide 9

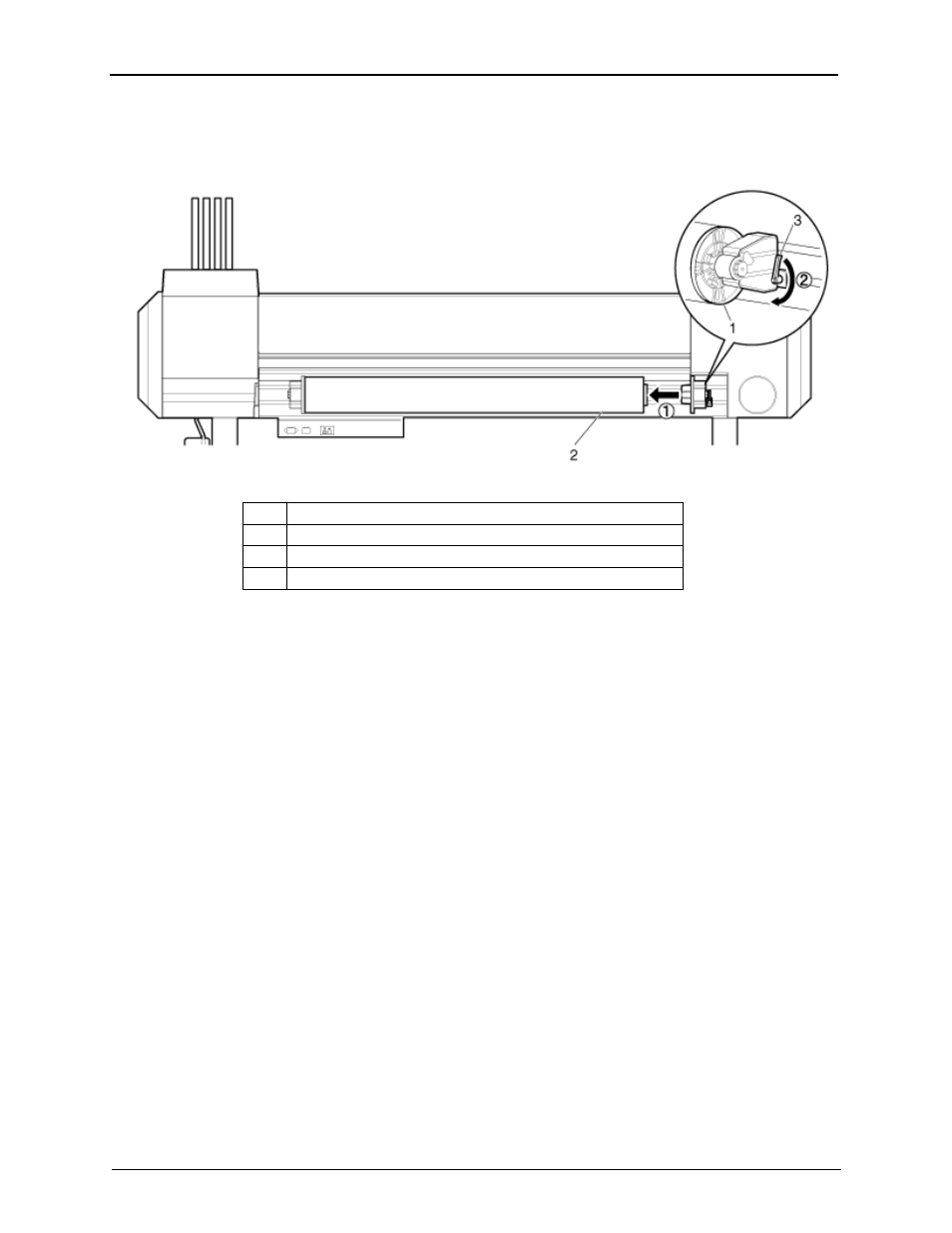

7. Slide the roll media holder (Right) toward the left and insert its core into the roll media’s cardboard
tube. Make sure the media holder is inserted all the way into the tube so that the inside surface of its
flange is flat against the cardboard tube. Do not tighten the fixing lever.
8. Return to the fixing lever of the roll media holder (Left) and ratchet it counter-clockwise to loosen
the media holder again. With both media holders loose, move the entire assembly to the center.
9. Tighten both fixing levers.
No. Name
1 Roll media holder (Right)
2 Roll media
3 Fixing lever
