Getting to Know Your Product
4 Product Orientation Guide
The printer control panel
Identify the components of the printer control panel.
Point out each item as you discuss it. See Figure 5.
1. The Liquid Crystal Display (LCD) shows the
condition of the printer and messages related to
settings.
2. The Arrow Keys are used to move the cursor and
to scroll through a list of options.
3. (Menu) steps from one top level screen to
the next.
4. (Online) switches the printer between being
online and offline.
5. (End menu/cancel job) stops printing and
returns to the ready or offline status.
6. (Select) selects a menu or option shown on the
display and advances to the next option screen.
7. The Status LEDs (light emitting diodes) show
the status of the printer.
• (Online) glows green to indicate the
printer is online.
• (Data) flashes green when the printer is
receiving data.
• ! (Error) flashes red to show abnormalities or
warnings.
1 2
3 4
5
6
7

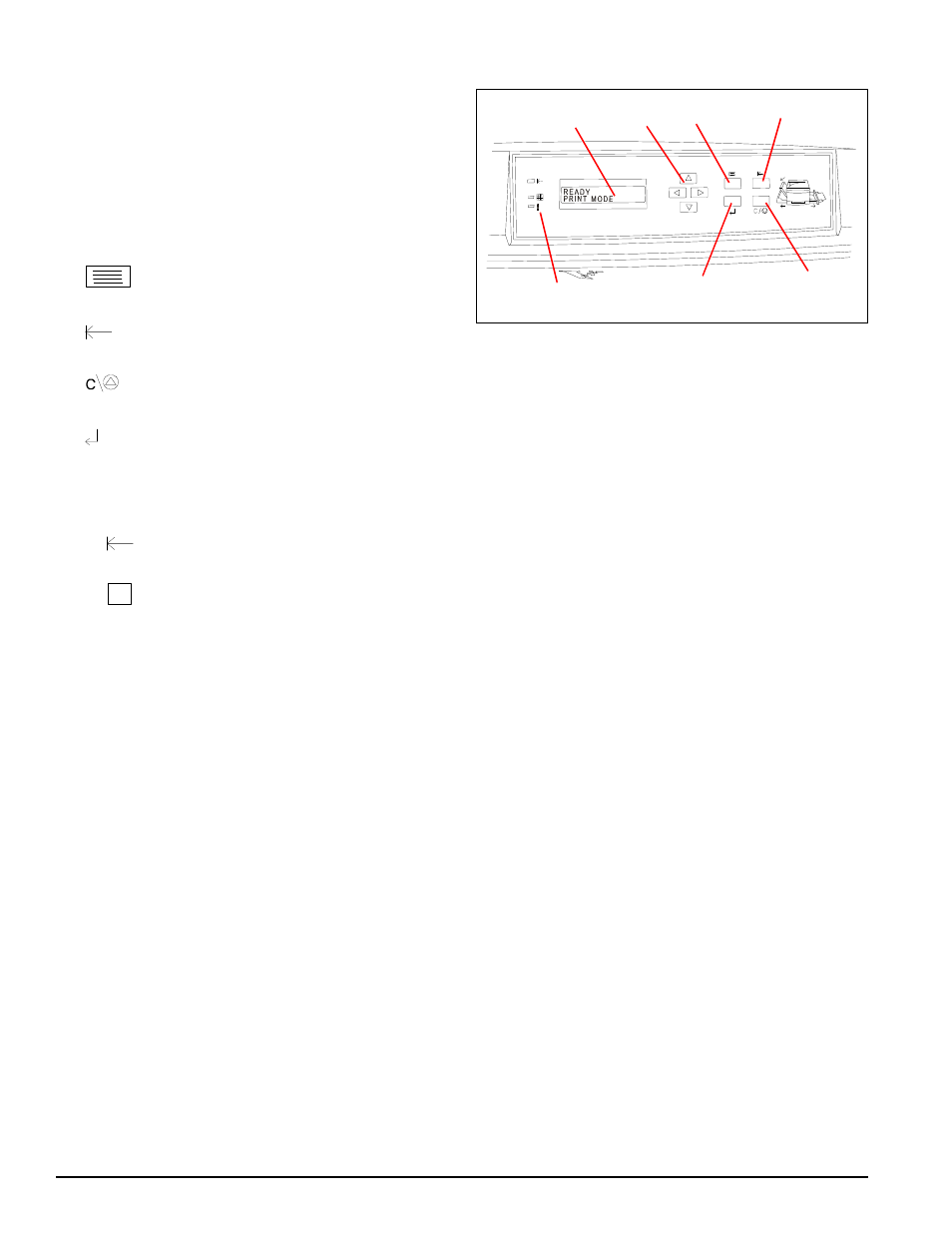

Figure 5
