Getting to Know Your Product
2
Product Orientation Guide

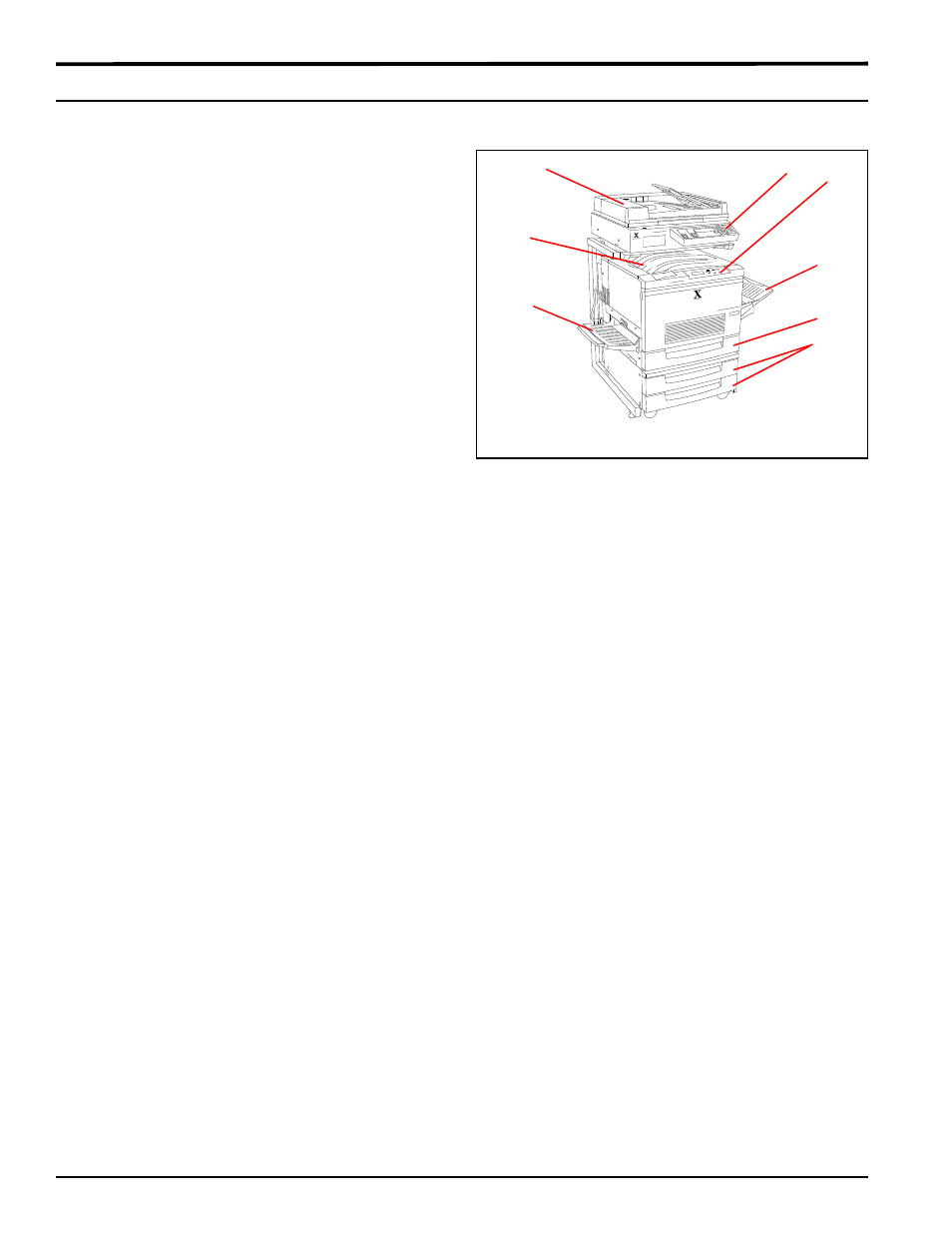

Component parts of the DocuColor 4 Copier/Printer
Component overview
Point out each component as you describe it. See
Figure 1.
Note: Some items shown are optional accessories
and may not be present on the machine you are
using.
1. The Scanner/ADF Control Panel contains the
control buttons and the display for the copier
functions.
2. The Printer Control Panel contains the control
buttons and the liquid crystal display (LCD) for
the printer only functions.
3. The Bypass Tray is used for transparencies and
non-standard paper up to 13 x 19 in. (330 x 483
mm).
4. Paper Tray 1 holds up to 250 sheets of 24 lb
(90 gsm) 11 x 17 in. (297 x 432 mm) paper.
5. The Two Tray Module contains trays 2 and 3.
Each tray can hold up to 250 sheets of 24 lb
(90 gsm) 11 x 17 in. (279 x 432 mm) paper.
6. The Face Up Tray stacks the printed pages face
up.
7. The Face Down Tray stacks the printed pages
face down. The Face Down Tray is the default
tray.
8. The Scanner/Automatic Document Feeder
accepts up to 50 pages of originals.
1
2
3
4
6
8
5
7
Figure 1
