Application
Examples
Operation of the RT-123 can be synchronized with a sequencer or other rhythm machine equipped with a
MIDI jack. This allows playback of the patterns or songs of the RT-123 with the tempo determined by
the sequencer.
Synchronized MIDI operation
STEP PATTERN(SONG REC)
II
REAL-TIME REC
OPEN HAT
7 CLICK VOL
TOM 3
6 QUANTIZE
TOM 2
4 TIME SIG
TOM 1
2
MIX
EXTRA 1
9 FOOT SW
EXTRA 2
11 PAD SENS
EXTRA 3
13
MIDI
CLOSED HAT
5 PRE COUNT
SNARE
3 BASS TUNE
KICK
1 BASS KEY
CRASH
8 BAR LENGTH
RIDE
10 SWING
EXTRA CYMBAL
12
SHIFT FUNCTION
REPEAT/STEP
INSERT/COPY DELETE/ERASE BASS MUTE BASS DRAM A DRAM B STOP/EXIT PLAY
TEMPO
+ –
Ballad Set
35-39
Basic Drum Kits
00-09 Bass
Programs
STEP REC
2
2
STEP
1

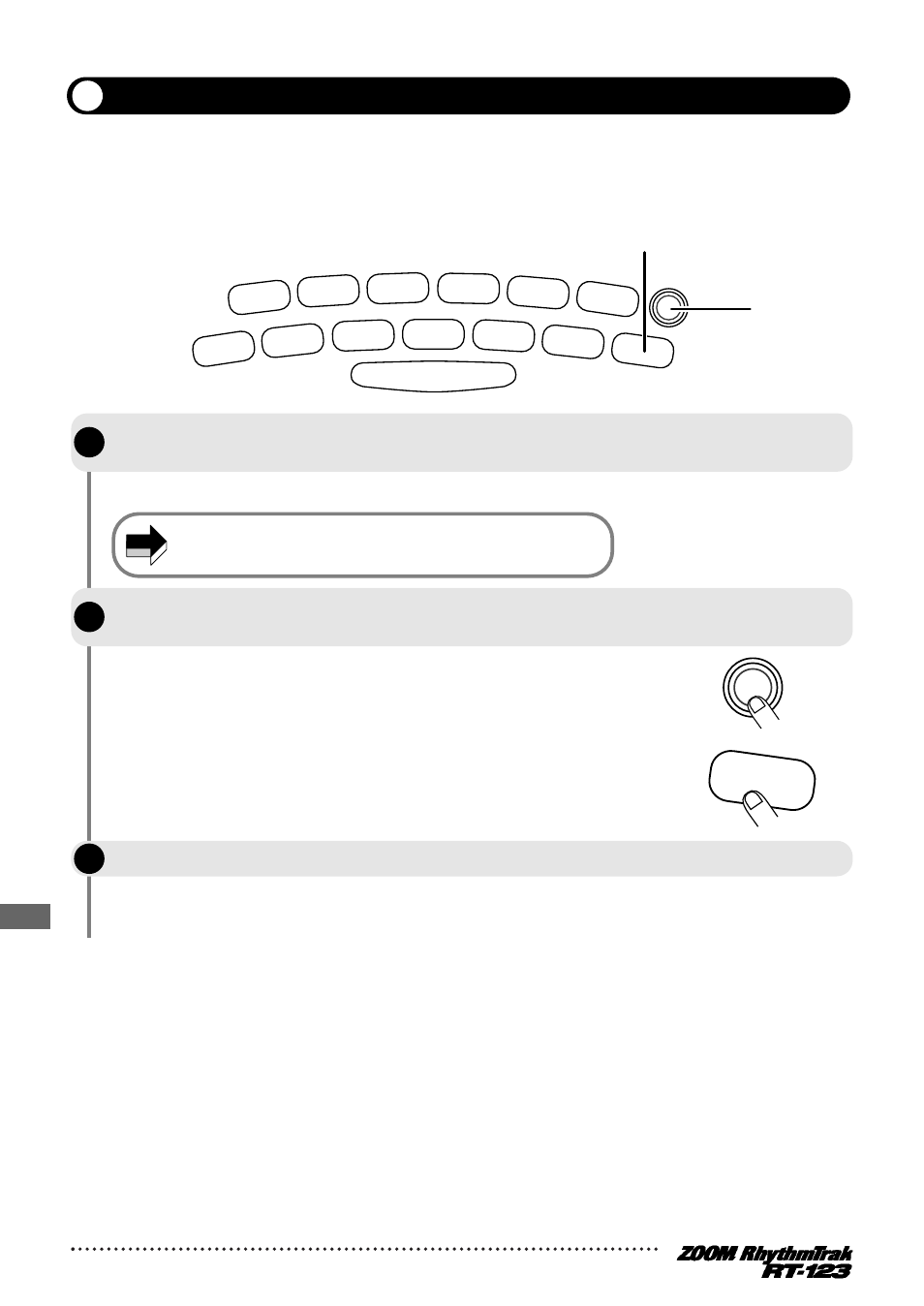

Connect the MIDI OUT jack of the MIDI sequencer, rhythm machine, or other MIDI
component to the [MIDI IN] connector of the RT-123, using a MIDI cable.
For information on connections, see page 3.
For information on the setting procedure, see page 49.
The RT-123 operates under control of the MIDI sequencer.
Verify that the external MIDI sequencer can send the MIDI clock,
start, stop, and continue signals.
NOTE
STEP
2
Use the [FUNCTION] key and pad 13 (MIDI) and set up the RT-123 so that it can
receive the MIDI clock and other messages.
STEP
3
Start the external MIDI sequencer.
FUNCTION
EXTRA 3
13
MIDI
