WATLOW Series 733/734 Service Manual Setup Mode, Chapter 2
Setup
= Parameter may not appear depending
on control configuration
= Only appears if your unit has communications.
See the Series 733/734 data communications
manual for more information. SERIES 733
TL W WA
8 10 12 1 3 5 2 4 6 7 9 11
EVENT LOAD 1 READY
MENUS
Celsius_Fahrenheit
Guard band
00 : 00
C _ F
gb
RTD calibration curve
Temperature comp. (WatCurve
rtd
tcnP
Menu time select
Alarm silence
tS
SIL
Latching for alarm
Zone 1 input type
LAt
InP1
Zone 1 range low
Zone 1 range high
rL1
rH1
Zone 1 hysteresis
Zone 1 alarm low
HyS1
A1LO
Zone 1 calibration offset
Zone 2 input type
CAL1
InP2
Zone 2 range low
Zone 2 range high
rL2
rH2
Zone 2 hysteresis
Zone 2 alarm low
HyS2
A2LO
Zone 2 alarm high
Zone 2 alarm type
A2HI
AL2
Zone 2 calibration offset
Baud rate
CAL2
bAUd
Data bits and parity
Protocol type
dAtA
Prot
Address Addr
Zone 1 alarm high
Zone 1 alarm type
A1HI
AL1
Operation Menu
( )
( )
( )
( )
( )
( )
( )
( )
( )
( )
( )
( )
( )
( )
( )
( )
( )
( )
( )
( )
( )
( )
( )
( )
( )
( )
( )

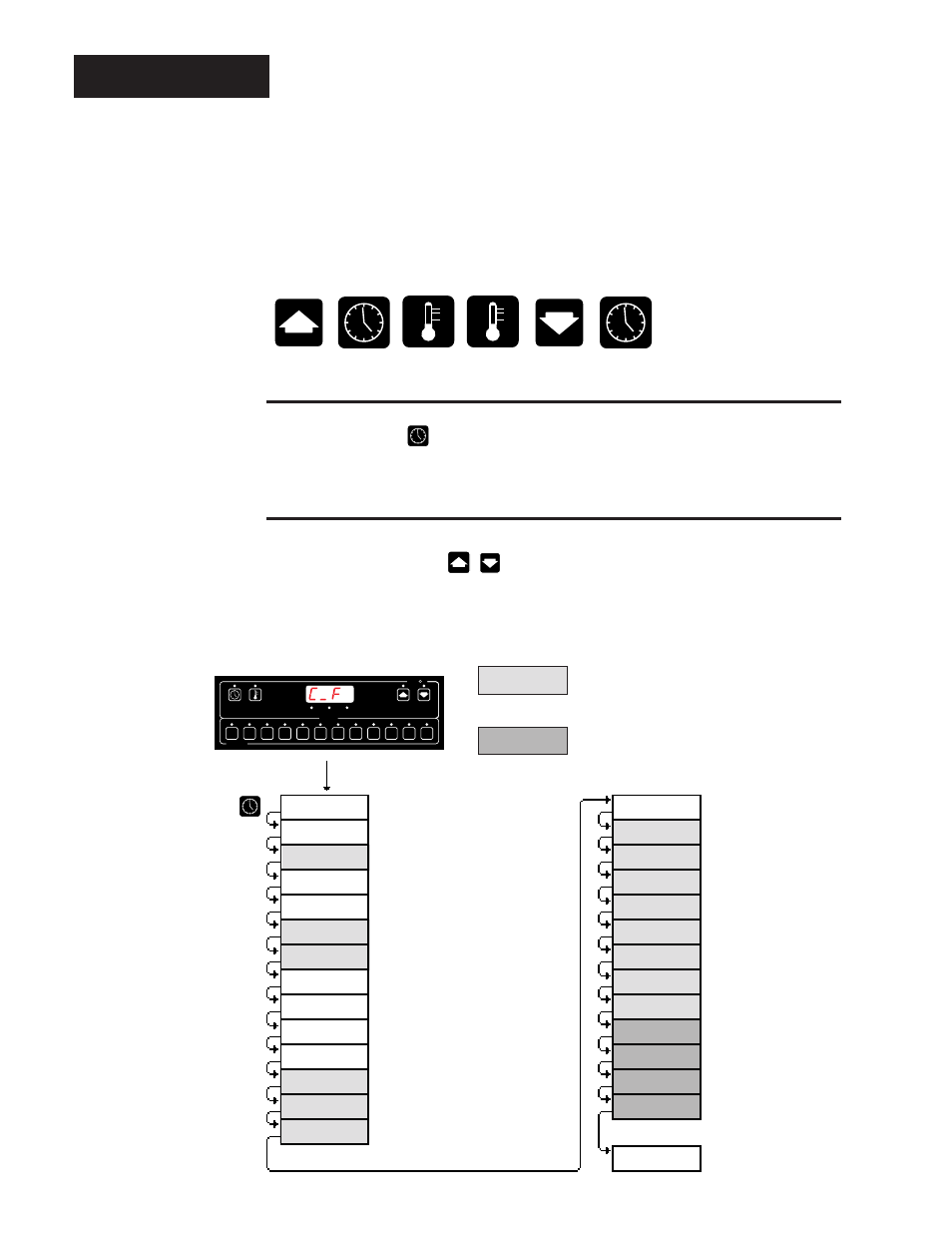

Figure 22 -
Setup Mode
Key Flow.
˜
NOTE:
Changing the
C_F, InP_, tS, rL_,
rH_ parameters
will default all
menus.
Chapter 2
The Setup Mode
Use the key sequence below to enter the Setup Mode.
Advancing Through The Setup Mode
Press the TIME key .
Select or Change Setup Data Within The Mode
Use the UP/DOWN keys . After 1 minute with no key activactions, the
Series 733/734 reverts to the Operation mode [0)º0] .
