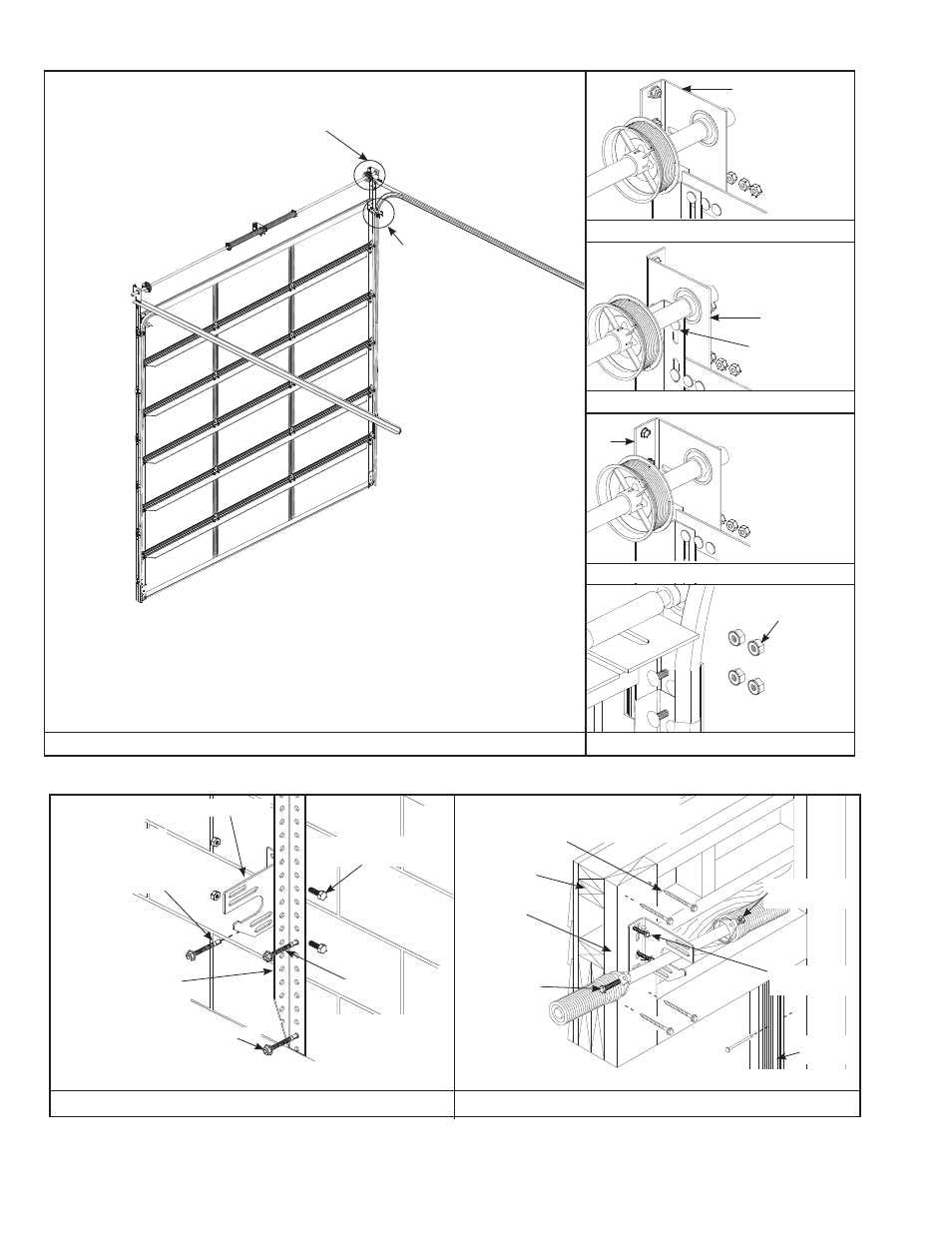

FIG L
THIS ILLUSTRATION SHOWS
15” RADIUS TRACK W/SELF
DRILLING SCREW TO STEEL
THIS ILLUSTRATION
SHOWS 15” RADIUS
TRACK W/CONCRETE
ANCHOR
THIS ILLUSTRATION SHOWS
12” RADIUS TRACK W/LAG
BOLT TO WOOD.
(3) 3/8” X 3/4” TRUSS
BOLTS AND NUTS.
(2) FOR SECURING
END BRACKET
(1) FOR SECURING
HORIZONTAL ANGLE
TO FLAG ANGLE
CUT OFF 3” OF WALL
ANGLE , 12” RADIUS
APPLICATIONS ONLY
1/4” X 9/16” TRACK
BOLTS AND NUTS
FIG L-1, L-2 & L-3
FIG. L-4
FIG. L-1
FIG. L-2
FIG. L-3
FIG. L-4
FIG M-1
(2) 3/8” X 1-1/2”
BOLTS
(2) 3/8” NUTS
AND WASHERS
SPRING MOUNTING PAD. 2 X 6 WHITE
PINE OR DENSER. SECURED WITH MIN.
(4) 5/16” X 4” LAG BOLTS INTO HEADER.
PERIMETER
SEAL
HEADER
TOP PLATE
CENTER SUPPORT BRACKET
PERFORATED ANGLE
(TRIMMED TO CLEAR
DOOR HIGH-ARC)
(4) 3/8” x 2-1/2” SLEEVE ANCHOR
NOTE: ALL ANCHORS MUST BE
POSITIONED A MINIMUM OF 1” FROM
BLOCK EDGE.
(2) 3/8” X 1-1/4” HEX
HEAD BOLTS AND NUTS
SLEEVE ANCHOR
POSITIONED IN
BOTTOM SLOT OF
SUPPORT BRACKET
SECOND ANCHOR
FROM BOTTOM
MUST BE BELOW
SUPPORT BRACKET
5/16” X 1-5/8”
LAG SCREWS
FIG M-2
EBF
EBF
