5
1/4” 7/8” SELF-
DRILLING SCREWS
ATTACHED HINGE
1/4” X 7/8” SELF-
DRILLING SCREWS
ATTACHED HINGE
HINGES
NOTE: Top sections do not require hinges.

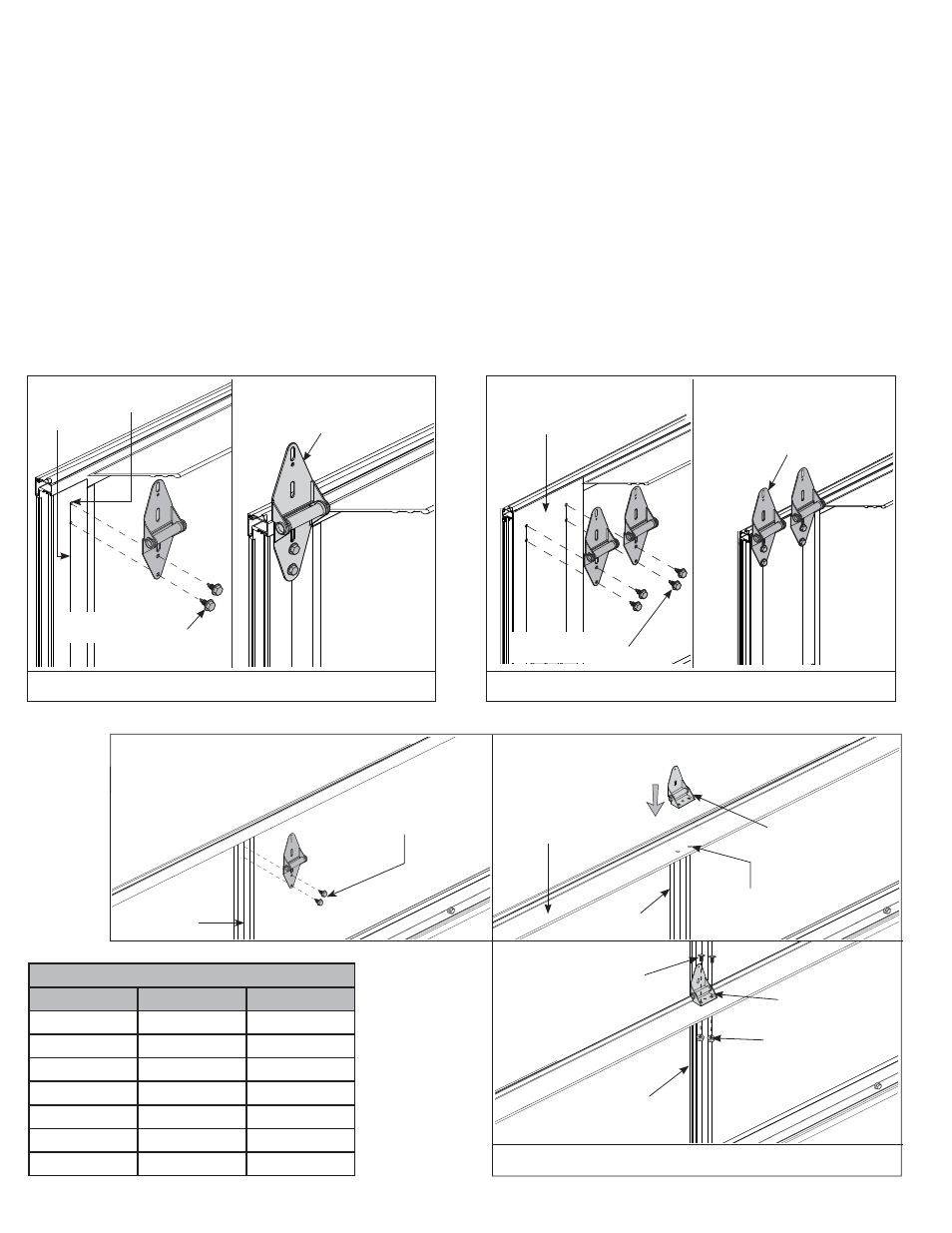

Use the ENDHINGE CHART to determine the proper endhinges for the proper section. Install only the left hand end hinge, as the right hand end hinge will need to be installed when the
sections are stacked. Align the proper left hand end hinges to the proper sections using the center line of the endstile as a guide and the 2 punch marks in the endstile to locate the
placement of the end hinge. Secure using (2) 1/4” x 7/8” self drilling screws as shown in FIG E. Sections with double end stiles require 2 end hinges per side on each section, as shown in
FIG F.
The end hinge sequence is dependent on track size (2” or 3”).
2” track applications begin with #1 hinges attached to the top corners of the bottom section.
3” track applications begin with #3 hinges attached to the top corners of the bottom section.
To install center hinges on doors without integral ribs, place the center hinge over the center stile(s), using the center line of the stile(s) as a guide, and secure to the section using (2) 1/4” x
7/8” self drilling screws, as shown in FIG G.
To install center hinges on doors with integral ribs, seat the bottom half of the half hinge(s) onto the integral rib above the center stile(s) and over the punch marks of each section, and
secure to the rib with (2) 1/4”-20 x 5/8”carriage bolts and (2) 1/4” x 20 fl ange hex nuts, as shown in FIG G. Repeat for all remaining sections, except top section.
FIG G
END STILE
CENTER LINE
FIG E FIG F
HINGE
CENTER STILE
HALF HINGE
CENTER
STILE
(2)1/4”- 20 X 5/8”
CARRIAGE BOLTS
(2) 1/4” X 20
FLANGE HEX
NUTS
END STILE
PUNCH MARKS
DOUBLE
END STILE
PUNCH MARKS
INTEGRAL RIB
ENDHINGE CHART
Section 2 inch track 3 inch track
Bottom #1 hinge #3 hinge
Second #2 hinge #4 hinge
Third #3 hinge #5 hinge
Fourth #4 hinge #6 hinge
Fifth #5 hinge #7 hinge
Sixth #6 hinge #8 hinge
Seventh #7 hinge #9 hinge
SECTIONS WITHOUT
INTEGRAL RIBS
1/4” X 7/8” SELF-
DRILLING SCREWS
CENTER LINE
SECTIONS WITH
INTEGRAL RIBS
Hinges are stamped with their identifi cation.
