3 statistics, 1 ethernet port statistics – Westell Technologies Versalink 327W User Manual
Page 139

030-300500 Rev. A
139
October 2006
User Guide
VersaLink™ Gateway (Model 327W)
15.3 Statistics
NOTE: If VersaLink is configured for ETHERNET PORT 1, only Ethernet and Wireless statistics will be
displayed in the Statistics menu. The DSL Transceiver statistics and the WAN VC statistics will not be displayed.
If you want to view DSL Transceiver and WAN VC statistics, you must configure VersaLink for DSLATM
PORT. Refer to section 12.6.2.1 for additional details.

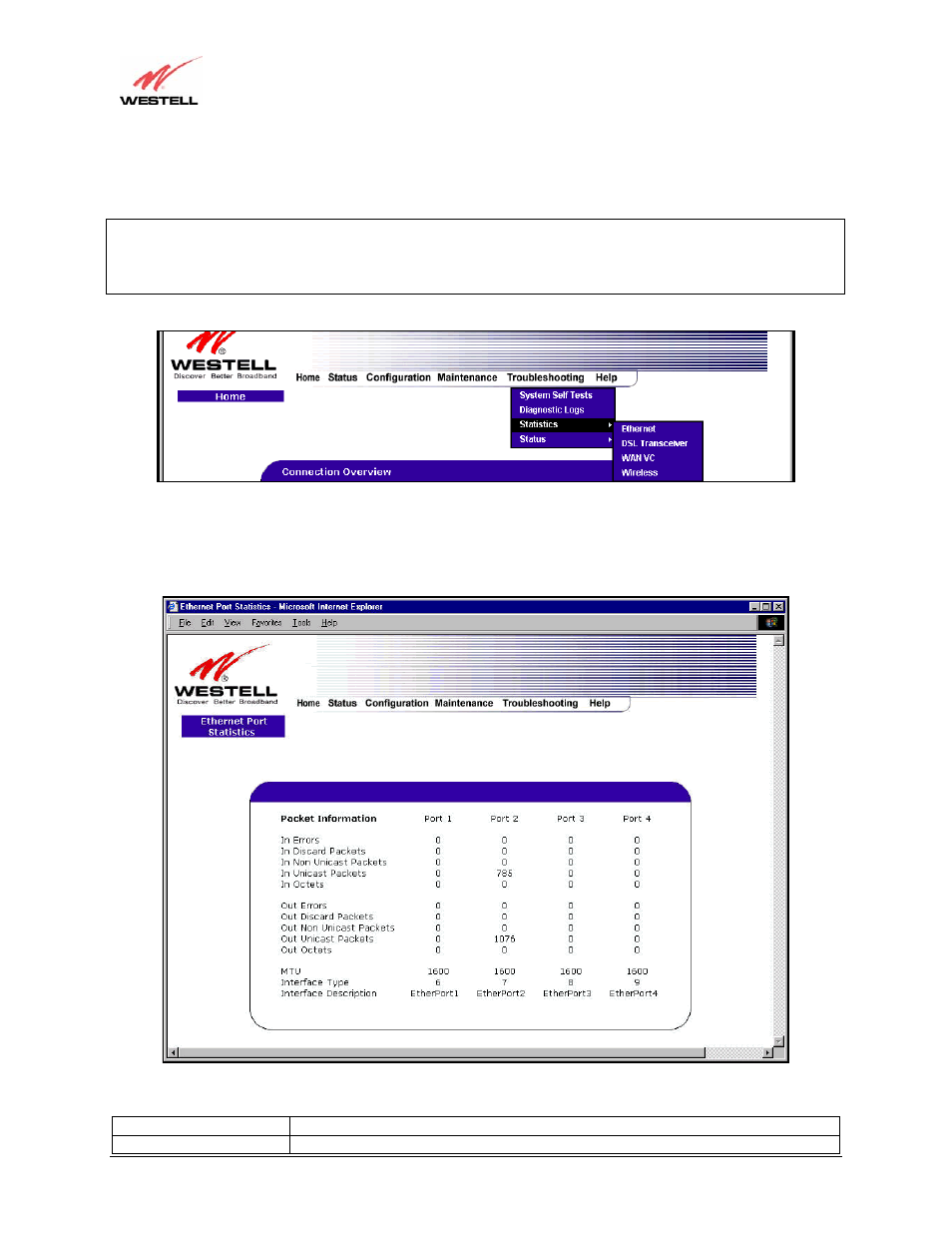

15.3.1 Ethernet Port Statistics
The following settings will be displayed if you select Ethernet from the Statistics menu.
In Errors
The number of error packets received on the Ethernet interface.
In Discard Packets
The number of discarded packets received.
