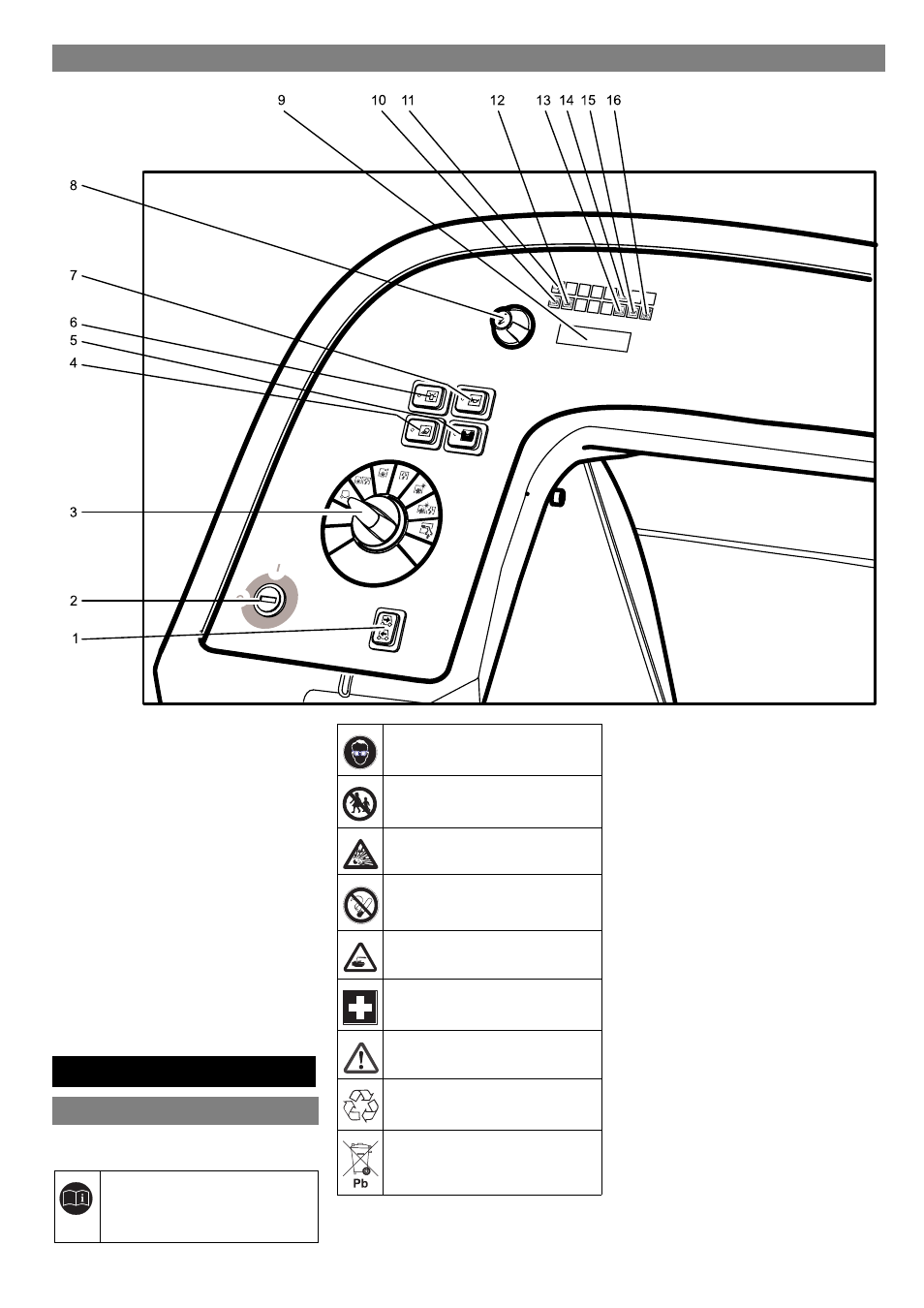

1 Driving direction switch
2 Key switch
3 Programe switch
4 Working lamp button (optional)
5 Switch for detergent dosing
6 Overall lamp button (optional)
7 Horn
8 Info button
9 Display
10 Indicator lamp - automatic immobilizing
brake active
11 Indicator lamp - manual cleaning pro-
gram active
12 Indicator lamp - battery monitoring
13 Indicator lamp - fault
14 Indicator lamp - service
15 Indicator lamp - Dirty water tank full
16 Indicator lamp - brush overload
Please observe the following warning notes
when handling batteries:
ƽ
Danger
Danger of explosion. Do not put tools or
similar on the battery, i.e. on the terminal
poles and cell connectors.
Risk of injury. Ensure that open wounds
never come into contact with lead. Always
clean your hands after having worked with
batteries.
Î Tilt the water tank backwards.
Î Insert the battery in the trough.
ṇ
Warning
Pay attention to correct poles.
Î
Connect the connection cable to the
free battery poles (+) and (-).
Î Tilt the water tank towards the front.
ṇ
Warning
Charge the battery before using the ma-
chine.
Note
The device is equipped with a safety mech-
anism to prevent total discharge, i.e. when
the permissible minimum capacity is
reached, then the machine can only be driv-
en and existing lamps can be switched on.
In such a case, the battery monitoring sym-
bol on the control console glows red.
Î
Drive the machine directly to the charg-
Operator console
Before Commissioning
Batteries
Observe the directions on the bat-
tery, in the instructions for use
and in the vehicle operating in-
structions
Wear eye protection
Keep children away from acid and
batteries
Danger of explosion
Fire, sparks, naked flames and
smoking must be strictly avoided
Danger of chemical burns
First aid
Warning note
Disposal
Do not throw the battery into the
regular waste
Insert batteries and connect
Charging battery
