Vanguard 7300 Enclosures and Components
Vanguard 7300 Cards
Token Ring Card

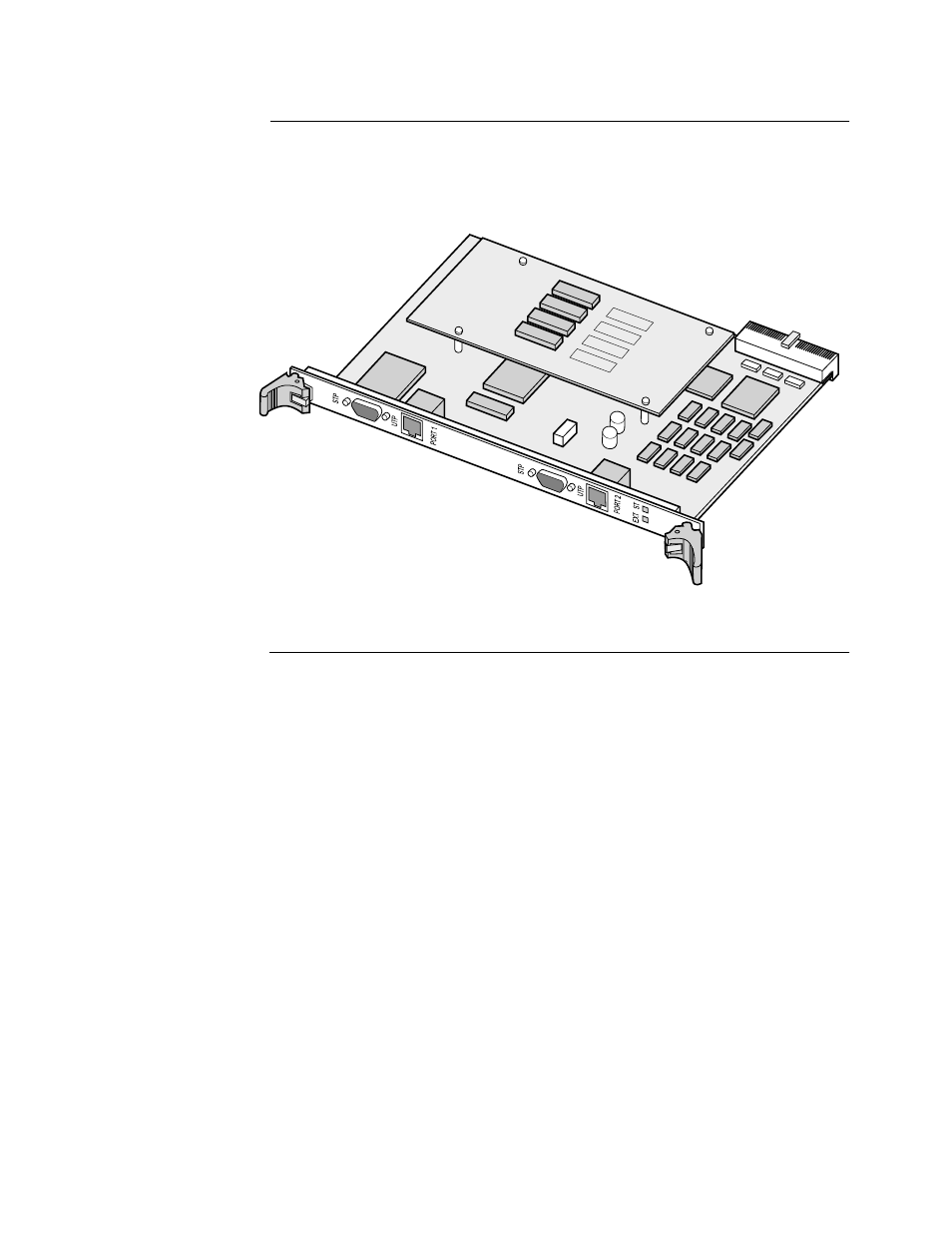

Figure 2-28 shows the Token Ring card. All connections are located on the front of
the card. The Token Ring card has two ports and each port supports only one UTP or
STP connection. The Token Ring card can be installed in any slot other than slot 1.
Figure 2-28. Token Ring Card Side View
