B-4
Ethernet Mezzanine Card Connector and Cable Details
Ethernet Mezzanine Card Connector and Cable Details
RJ45 10/100BaseT
Ethernet Port
Connector This table describes the pinout for the CPU board’s RJ45 10/100BaseT Ethernet port
and the 10/100BaseT Ethernet Mezzanine Card ports. Ethernet Mezzanine Cards can
be installed on either the CPU card or on the Carrier Card. The pinouts are shown in
Figure B-1 and in this table:.

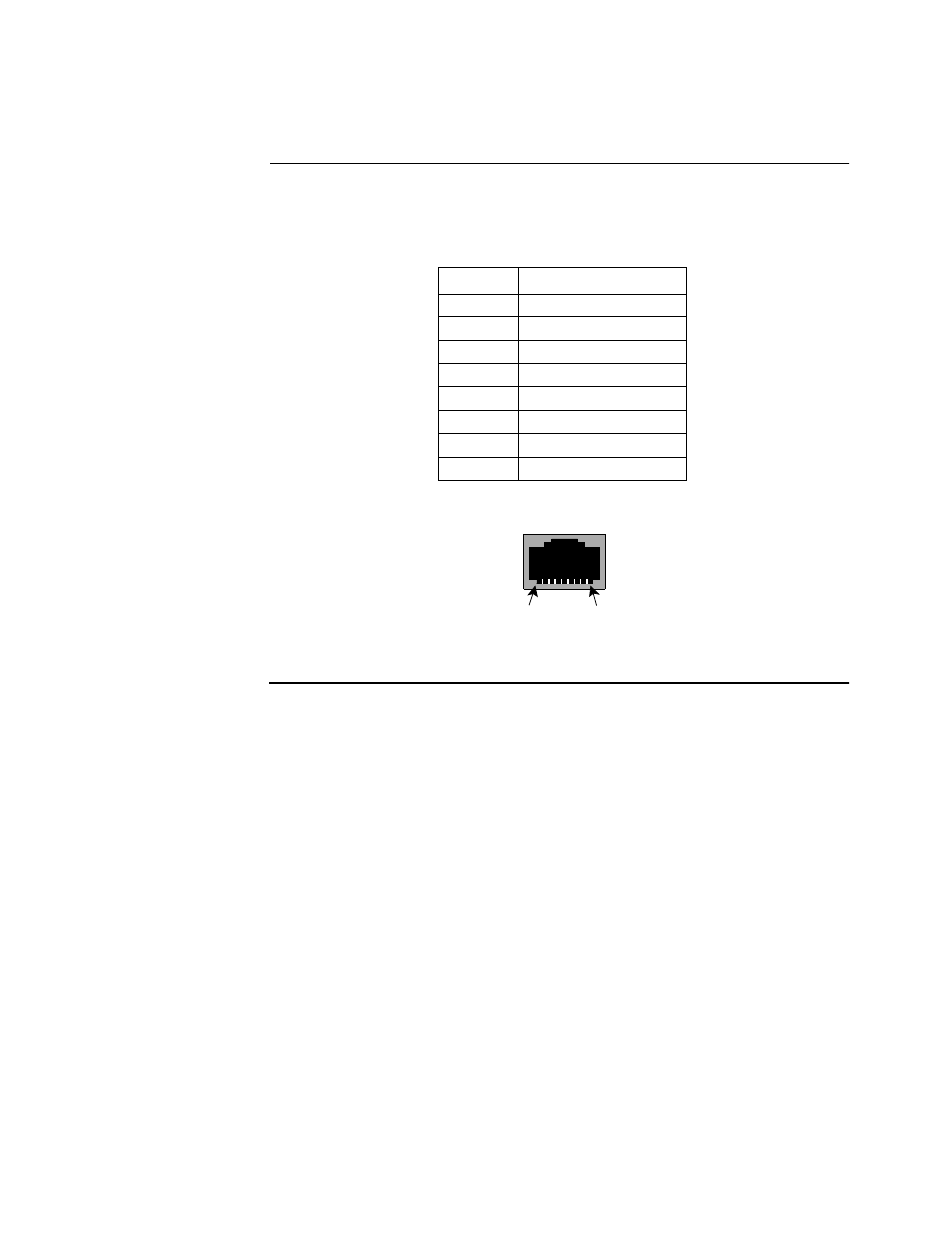

Figure B-1. RJ45 Ethernet Mezzanine Card Port Pin Numbering
Pin Signal
1 TD+
2 TD-
3 RD+
4 Not Used
5 Not Used
6 RD-
7 Not Used
8Not Used
Pin 1 Pin 8
