Section 15 - Zone Programming
15–11

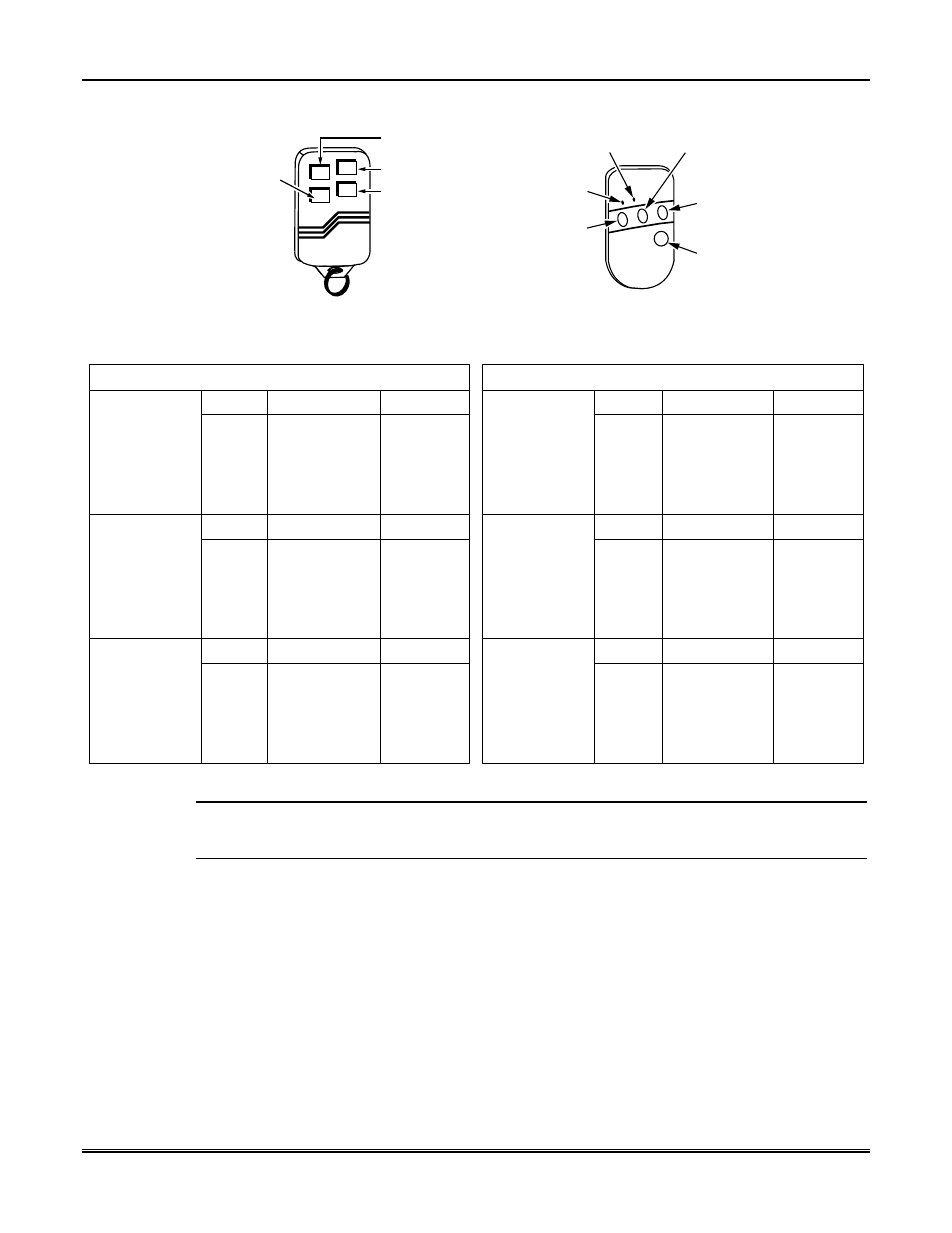

Wireless Key Predefined Default Templates
YOU MUST
PROGRAM
THIS BUTTON
LOOP 4
LOOP 3
ENROLL AS "BR"
LOOP 1
LOOP 2
ON
OFF
LOOP 3
LOOP 1
LOOP 2
LOOP 4
(YOU MUST
PROGRAM
THIS BUTTON)
RED/YELLOW
LED
•
•
••
•
•
•
•
•
•
•
•
•
• •
•
•••
GREEN/YELLOW
LED
ENROLL AS "BR"
5804 Wireless Key Transmitter
5804BD 2-Way Wireless Key Transmitter
For 5804
For 5804BD
Loop
Function
Zone Type
Loop
Function
Zone Type
1
No Response
23
1
No Response
23
2
Disarm
22
2
No Response
23
3
Arm AWAY
21
3
Arm AWAY
21
TEMPLATE 1
4
No Response
23
TEMPLATE 4
4
Disarm
22
Loop
Function
Zone Type
Loop
Function
Zone Type
1
No Response
23
1
No Response
23
2
Disarm
22
2
Arm STAY
20
3
Arm AWAY
21
3
Arm AWAY
21
TEMPLATE 2
4
Arm STAY
20
TEMPLATE 5
4
Disarm
22
Loop
Function
Zone Type
Loop
Function
Zone Type
1
24-hour Panic
07
1
24-hour Panic
07
2
Disarm
22
2
Arm STAY
20
3
Arm AWAY
21
3
Arm AWAY
21
TEMPLATE 3
4
Arm STAY
20
TEMPLATE 6
4
Disarm
22
UL
The 5804 and 5804BD transmitters are not approved for use in UL installations.
