User's Manual - 7
Installation
Network deployment
Setup the Network Camera over the Internet
This section explains how to configure the Network Camera to Internet connection �

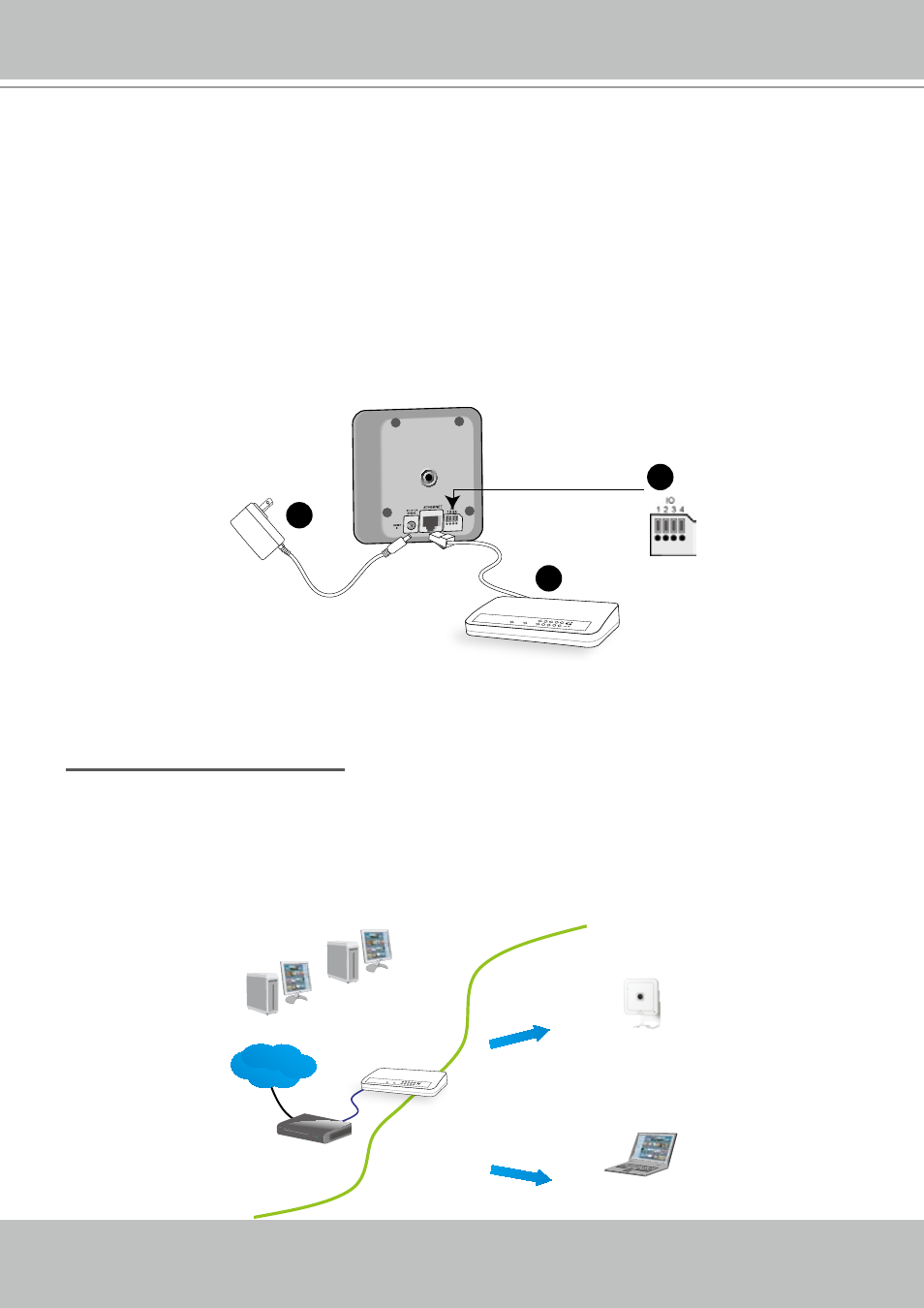

1� If you have external devices such as sensors and alarms, make connection from general I/O
terminal block�
2� Connect the camera to a switch via Ethernet cable� Use Catagory 5 Cross Cable when
Network Camera is directly connected to PC�
3� Connect the supplied power cable from the Network Camera to a power outlet�
There are several ways to setup the Network Camera over the Internet � The first way is to setup
the Network Camera behind a router � The second way is to utilize a static IP � The third way is to
use PPPoE �
Internet connection via a router
Before setting up the Network Camera over the Internet, make sure you have a router and follow
the steps below�
1� Connect your Network Camera behind a router, the Internet environment is illustrated as
below� About how to get your IP address, please refer to Software installation on page 9 for
details�
IP address : 192.168.0.3
Subnet mask : 255.255.255.0
Default router : 192.168.0.1
IP address : 192.168.0.2
Subnet mask : 255.255.255.0
Default router : 192.168.0.1
LAN (Local Area Network)
Router IP address : 192.168.0.1
WAN (Wide Area Network )
Router IP address : from ISP
Cable or DSL Modem
POWER COLLISION LINK RECEIVE PARTITION 1 2 3 4 5
Internet
POWER COLLISION LINK RECEIVE PARTITION 1 2 3 4 5
1: Power
2: Digital output
3: Digital input
4: Ground
1
2
3
