I Receiver Connector Pinout Information
174 SPSx51 Modular GPS Receivers User Guide

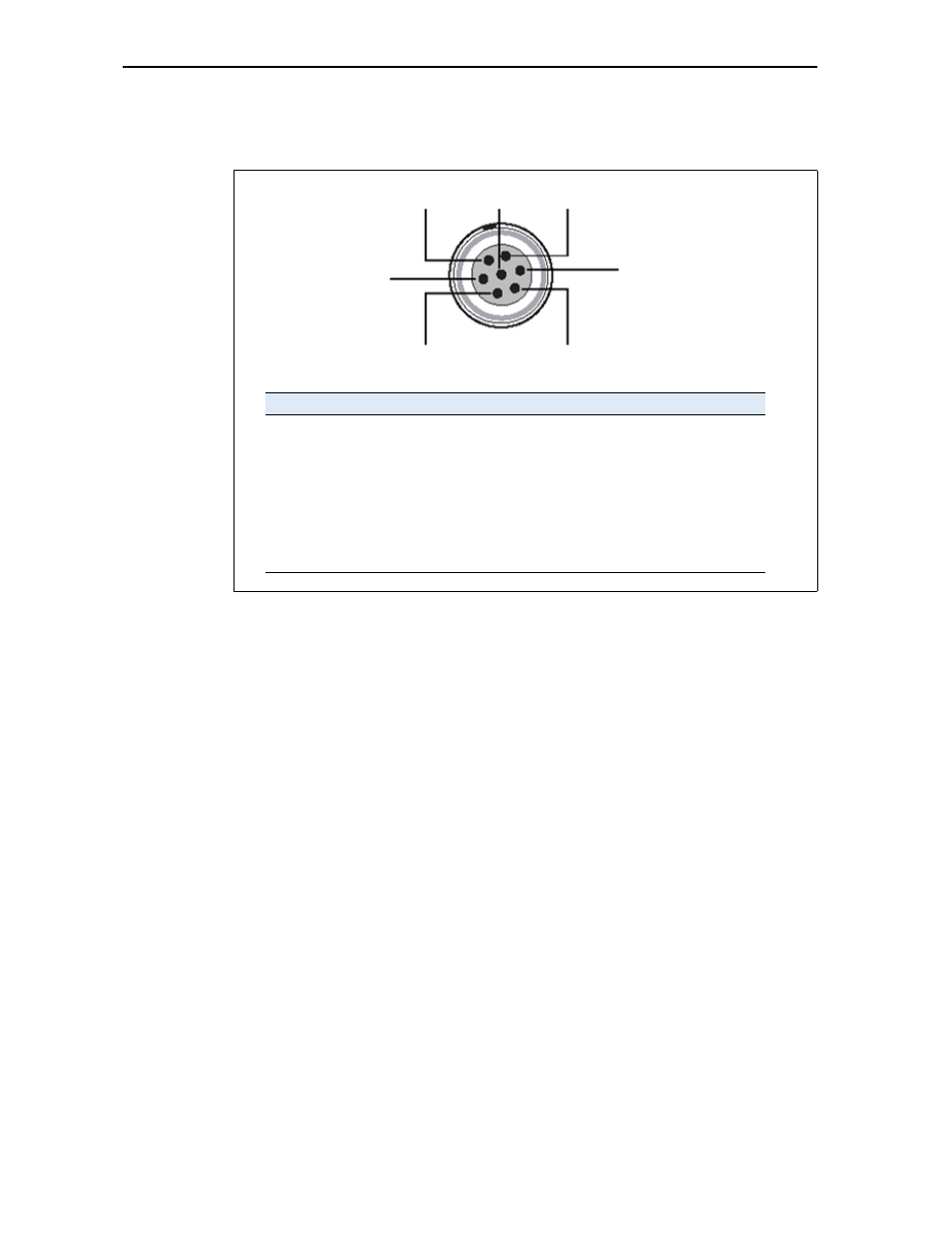

Lemo connector
The lemo connector is a 7-pin 0-shell Lemo connector.
1
2
3
6
5
4
7
Pin
Usage
1
RS-232 Signal GND
2
GND
3
RS-232 TX data out
4
CAN-
5
CAN+
6
DC Power In (+) 10.5-28 V DC
7
RS-232 Serial data in
