4. CONNECTIONS
• Power plugs of connected equipment must be disconnected before camera
installation.
• A 75-ohm coaxial cable with connector (3C-2V or 5C-2V) is required for standard
connection.
• For details of wiring and operation of equipment to be connected, refer to their
operation manuals.
• A power supply with cable, connectors and coaxial cable are not supplied with the
camera.
Notes on connecting

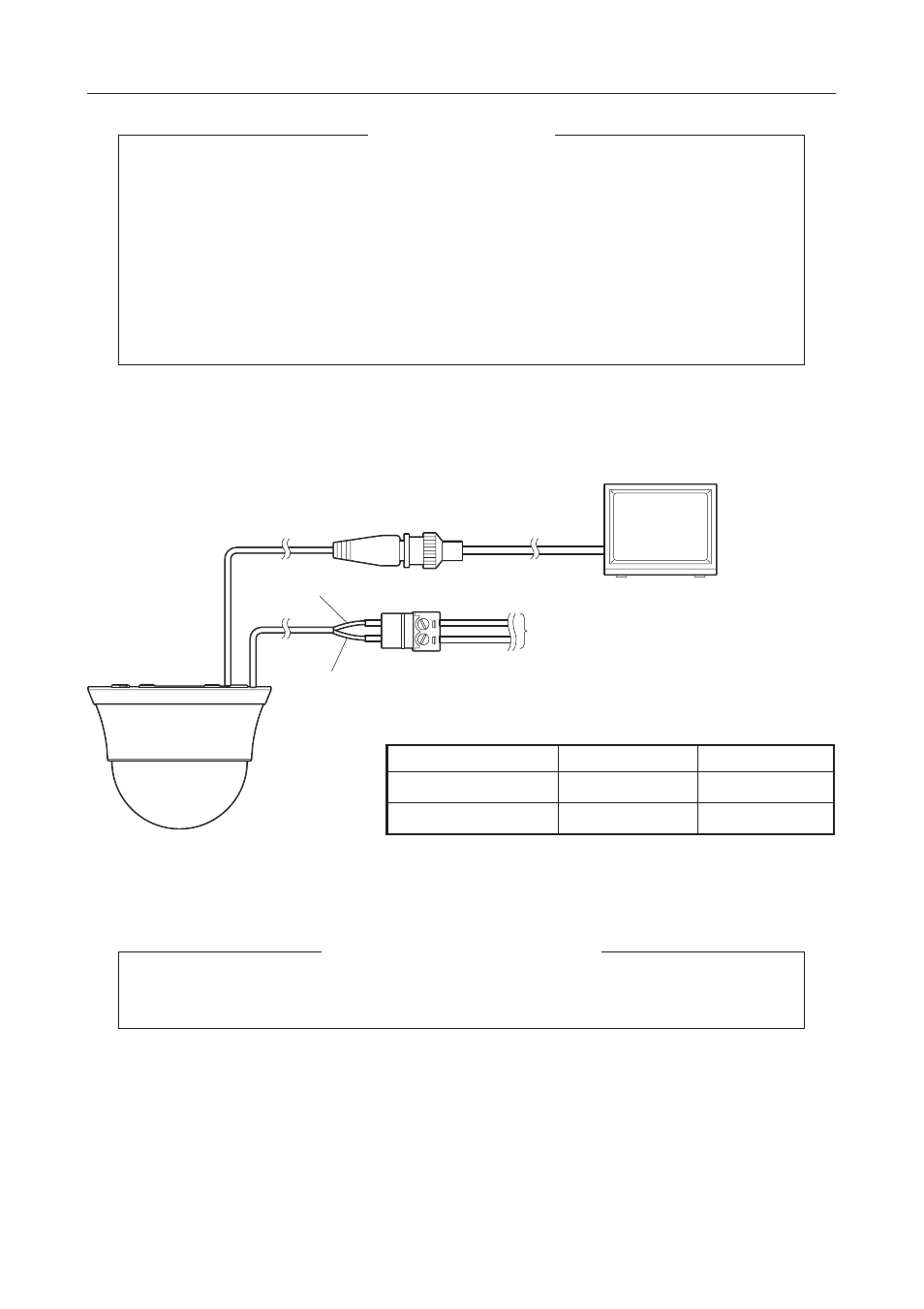

4-1. Basic connection single system configuration
The recommended power supplies for this camera are 6 watt minimum for each 24V
AC UL Listed Class 2 power supply or 12V DC power supply.
Do not overload power supply
CAUTION: Never input 24V AC and 12V DC at the same time.
(*) Recommended power cord is a minimum wire size of 18 AWG.
BNC Connector
Display Monitor
Connector
2 Black
1 Red
24V AC UL Listed Class 2 power supply
or
12V DC power supply.
Connector
1
Red wire
2
Black wire
24V AC
24V AC (L)
24V AC (N)
12V DC
Positive
Negative
