- 15 -

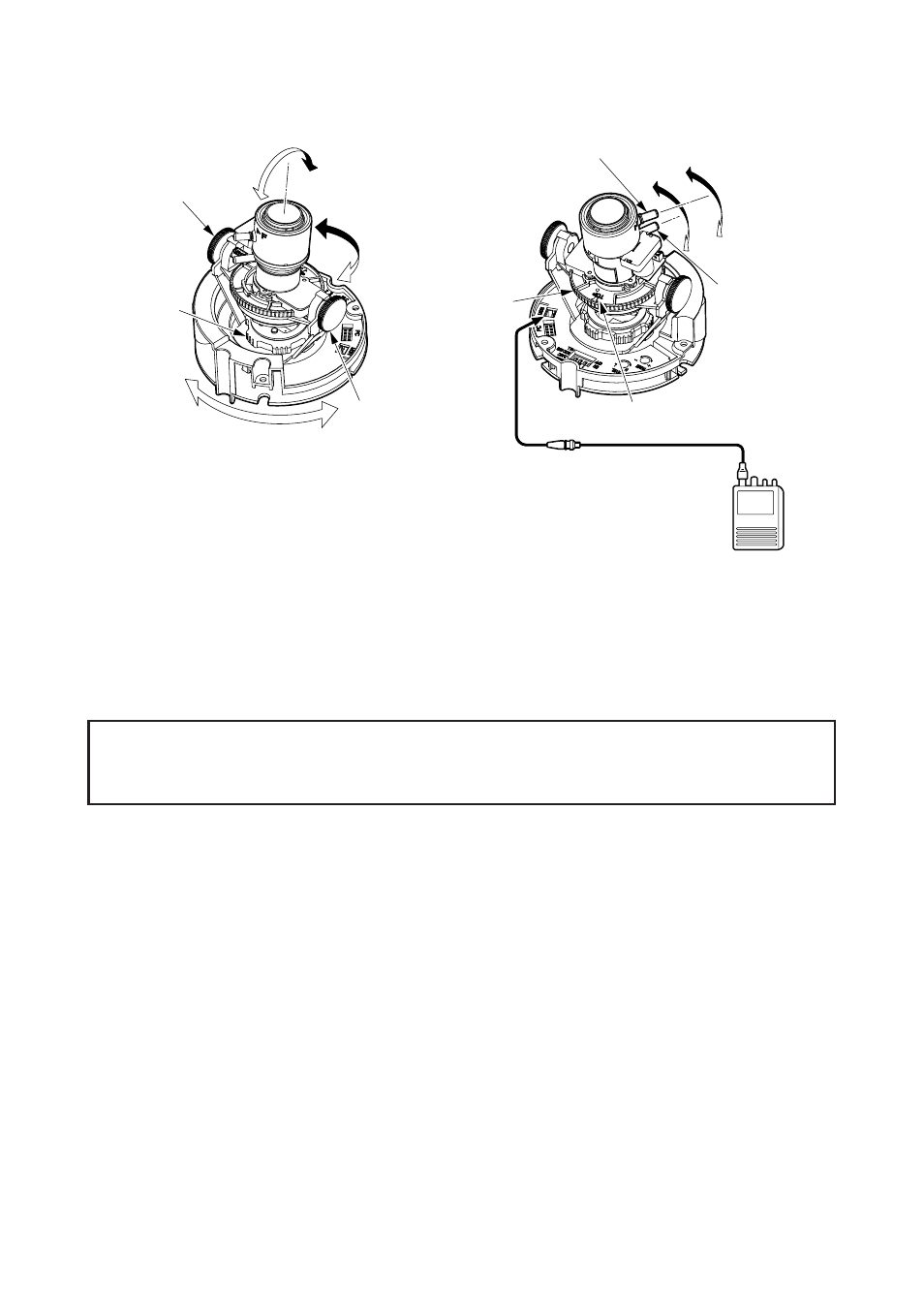

5-2. Adjusting the Viewing Angle
(1) To check the video image on the monitor, connect the "Monitor Out Harness Wire" to the
connector "MON".
(2) The lens pan direction can be adjusted by turning pan lock 1 counter clockwise to loosen it
without moving the lens. Retighten after adjusting.
(3) Tilt angle of the lens can be adjusted within the limit of -73
°
to +73
°
by loosening the tilt lock 2 .
After adjusting, tighten the tilt lock 2 .
(4) Adjust the zoom position by loosening the zoom lock lever 3 . After adjusting, tighten the zoom
lock lever 3 .
(5) When installing the camera on a wall, manipulate the horizontal ADJ ring 4 to adjust the
inclination of the image.
(6) Adjust the focus by loosening the focus lock lever 5 . After adjusting, tighten the focus lock
lever 5 .
(7) Repeat the adjustments from step (1) to step (5) till the optimum image appears.
Note:
• Do not turn the lens over 360
°
, otherwise the inner connector may break and the camera
will be damaged.
Tilt rotation
1 Pan Lock
2 Tilt Lock
Horizontal
rotation
4 Horizontal
ADJ Ring
5 Focus Lock Lever
Top mark
Pan
Far (
∞
)
Near
3 Zoom Lock
Lever
Wide
Tele
2 Tilt Lock
To Monitor
