10. PROGRAMMING PROCEDURES

10.21 FREE FORMAT SETTING

10-37

5. The following items cannot be rotated.

Barcode
Nutrition Facts

*LOGO, Safe handling and FSP block are performed only 90° rotation.

6. When pressing the

key, the printer issues a test label.

It is impossible to issue the test label with batch printing.

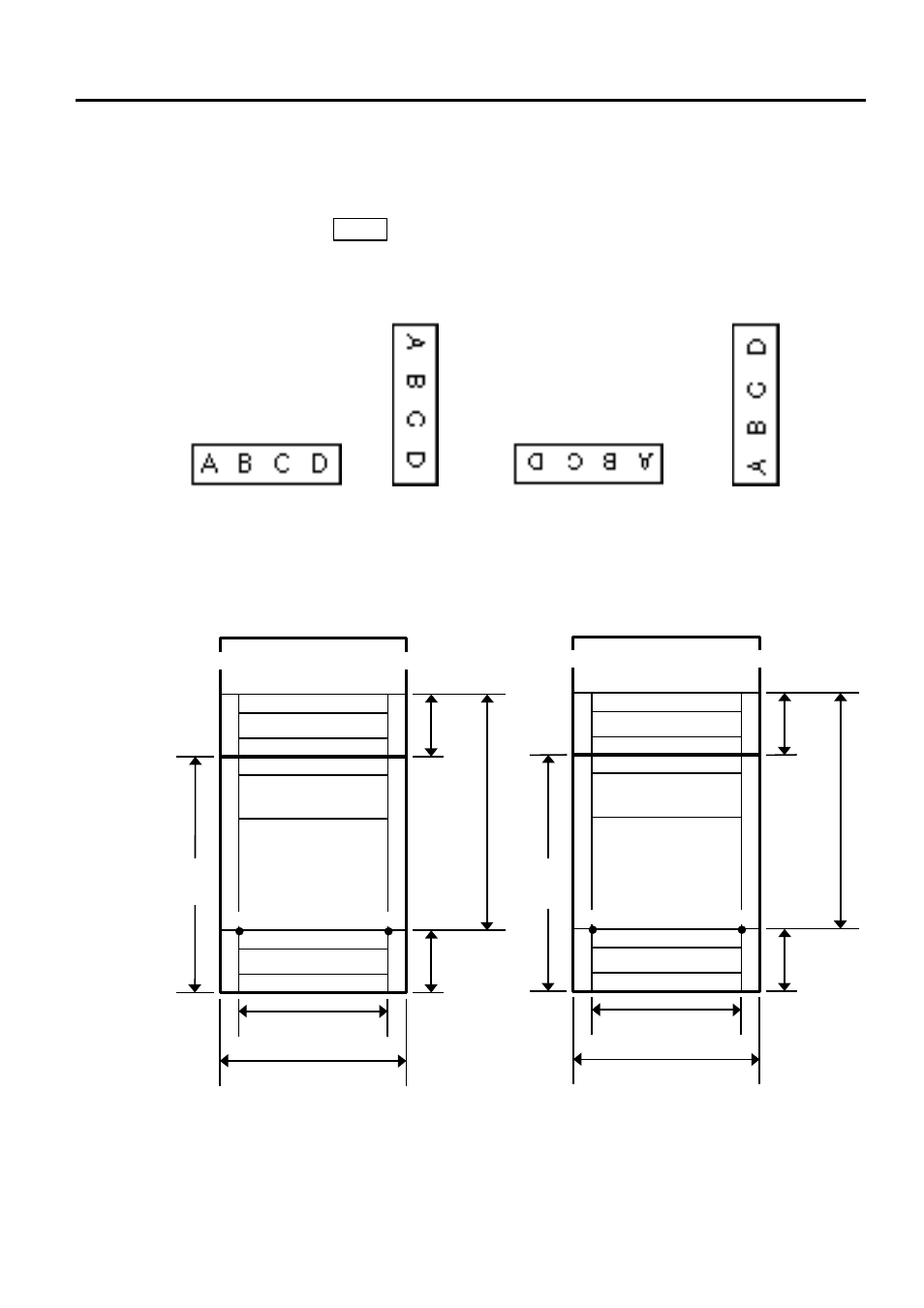

7. Rotated data will be printed so that the lower left corner is positioned at the designated

coordinate.

(1) 0

(2) 90

(3) 180

(4) 270

TEST

The points indicated by the arrows are the designated coordinates.

8.

X/Y values
X/Y values on the label are indicated in the following figures.

(57-mm wide label)

(80-mm wide label)

*1: Pre-feed area

The address is printed.

*2: Free format arrangement area

9.

Dot size
The dot size of the thermal head is 0.125mm square.

Address

Commodity

(0, 0)

X

Address

(447, 0)

Y

Label
Length

448 dot

57 mm

Address

Commodity

(0, 0)

X

Address

(631, 0)

Y

Label
Length

632 dot

80 mm
