8. REMOVAL AND REPLACEMENT OF RECEIPT/LABEL

8. REMOVAL AND REPLACEMENT OF RECEIPT/LABEL

8- 1

8. REMOVAL AND REPLACEMENT OF RECEIPT/LABEL

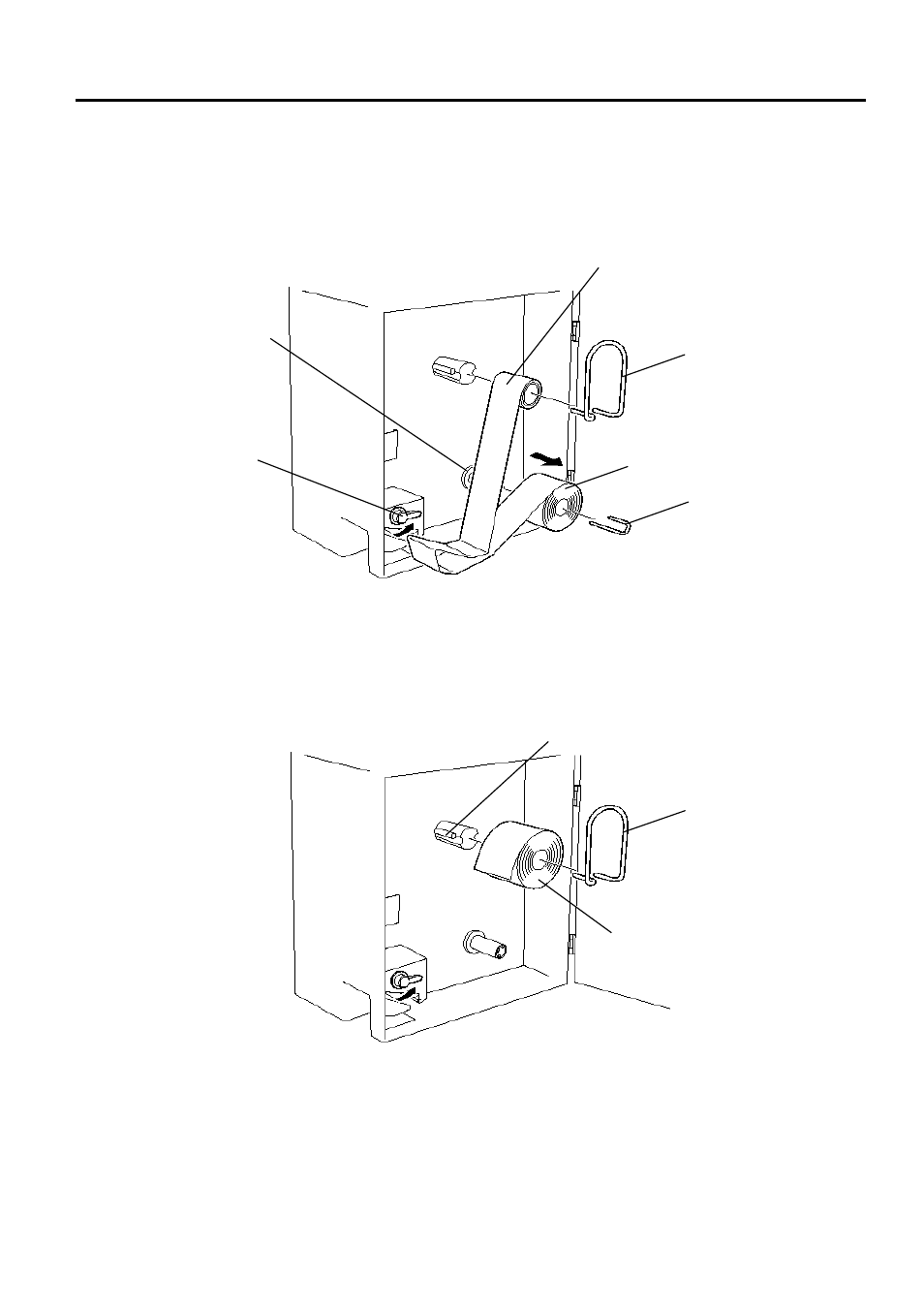

1. Open the printer cover and turn the head-up lever to the anti-clockwise.
2. Pull out the roll stopper and backing paper stopper, then remove the receip/label roll together with

the backing paper roll. You can loosen the backing paper roll by turning the take-up shaft anti-
clockwise.

3. Put a new receipt/label roll over the media shaft and fix it with the roll stopper.

Receipt/Label Roll

Roll Stopper

Backing Paper (Labels only)

Backing Paper Stopper

Take-up Shaft

Head-up Lever

Roll Stopper

Receipt/Label Roll

Media Shaft
