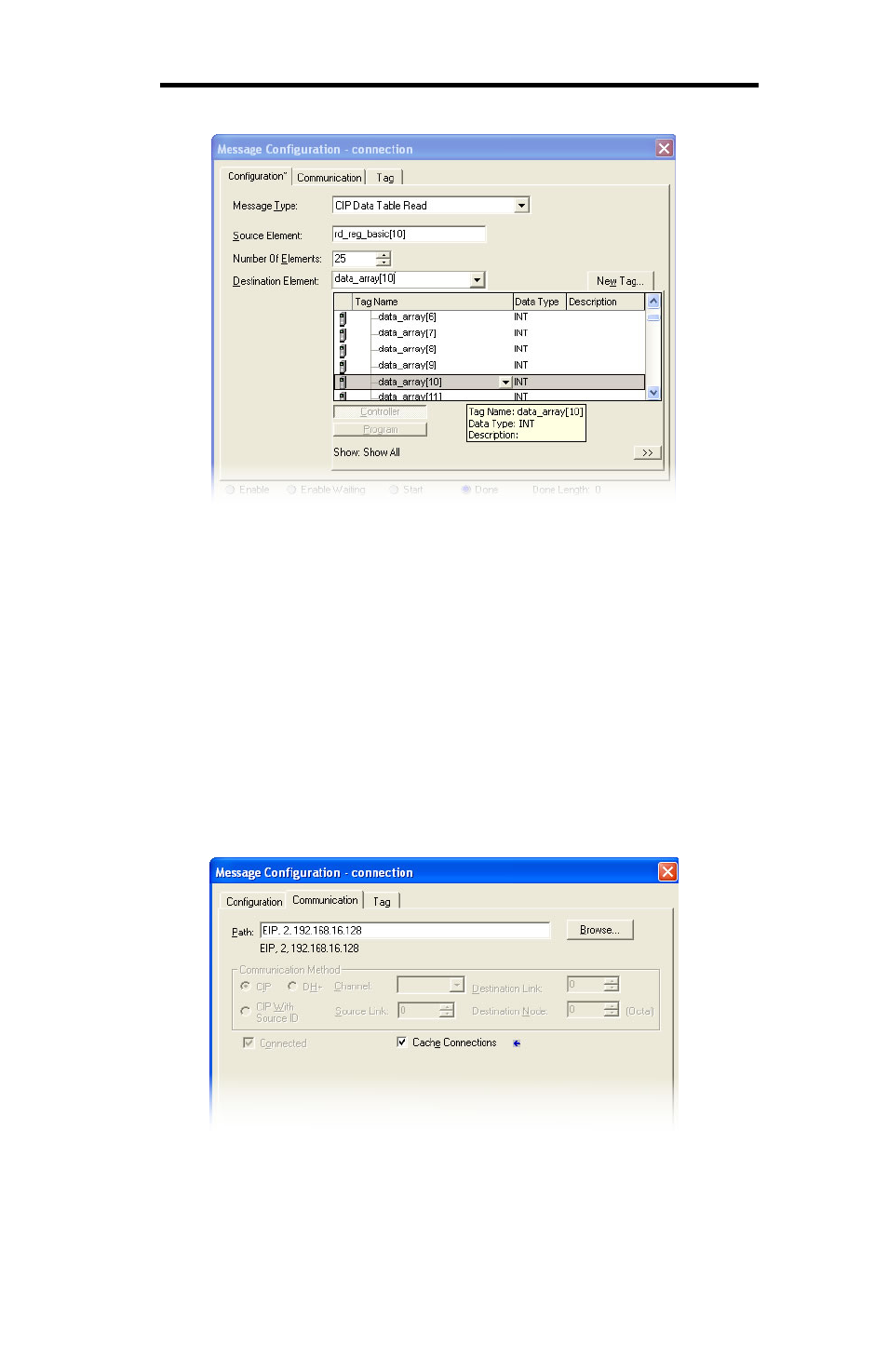

Figure 98: Selecting the Destination Element
d) “Communication” tab settings (refer to Figure 99):
i) Enter the Path to the interface card. A typical path is formatted as
“Local_ENB,2,target_IP_address”, where:
•
Local_ENB is the name of the 1756-ENBx module in the local
chassis (we named ours “EIP” in section 13.2.3),
•
2 is the Ethernet port of the 1756-ENBx module in the local
chassis, and
•
target_IP_address is the IP address of the target node.
In our example, this path would be entered as “EIP,2,192.168.16.128”.
Figure 99: Setting the Communication Path
ii) If “Cache Connections” is enabled (checked), the connection remains
open after transmission. If disabled (unchecked), the connection is
