Installation 3

Installation 3

Installation 3

Installation 3

Installation 3

3-7

TELEDYNE ANALYTICAL INSTRUMENTS

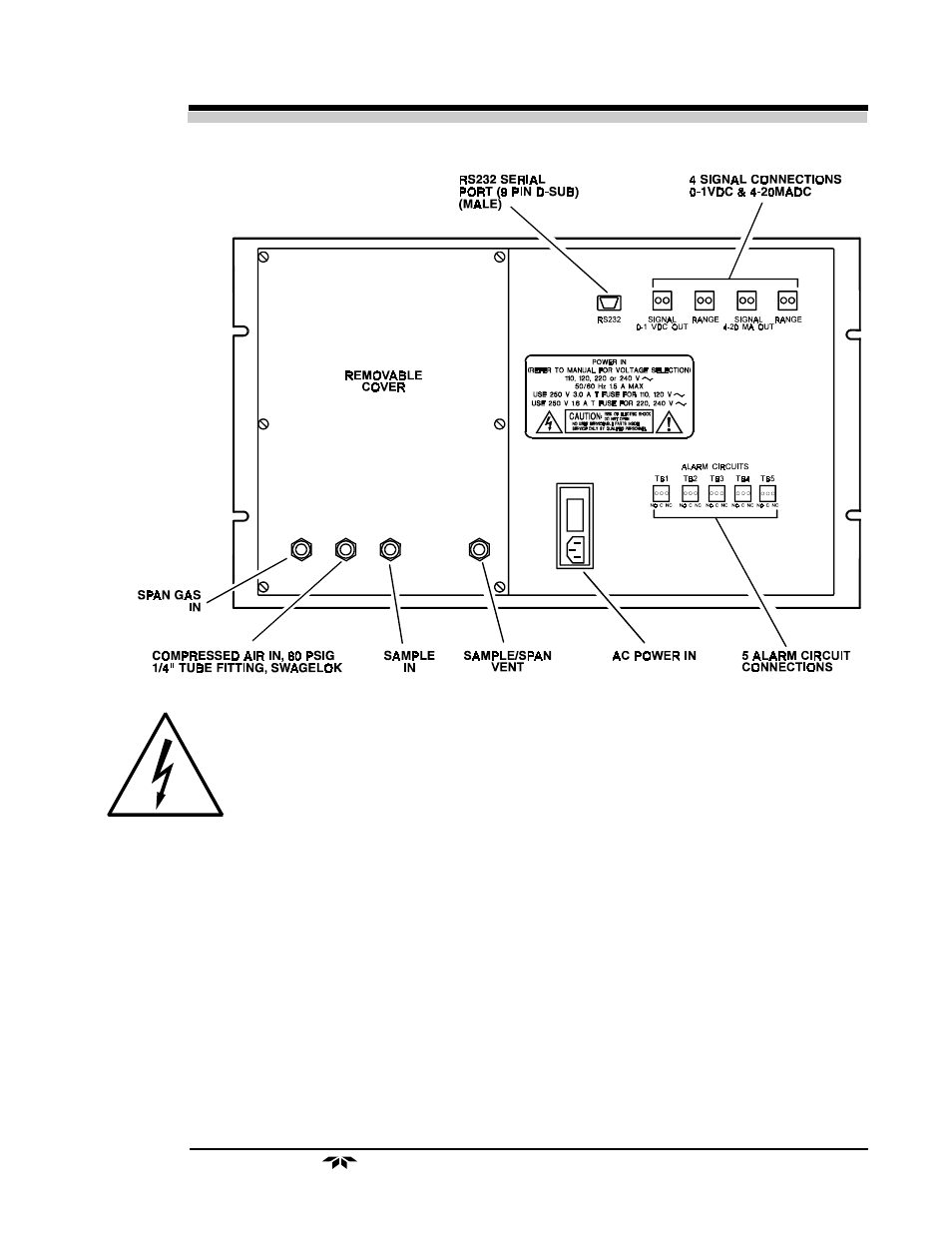

Figure 3-3: 3160 Rear Panel.

3.6.1 Voltage Selection

WARNING:

Power cord must be disconnected before performing any voltage
selection!

The voltage setting and fuses of the analyzer can be changed to international

standards. To change the voltage setting or fuses:

1. Open the cover using a small blade screwdriver.

2. Remove the cover and the fuse block assembly.

3. Pull the voltage selector card straight out of the housing by pulling on the

indicator pin (see Figure 3–4).
